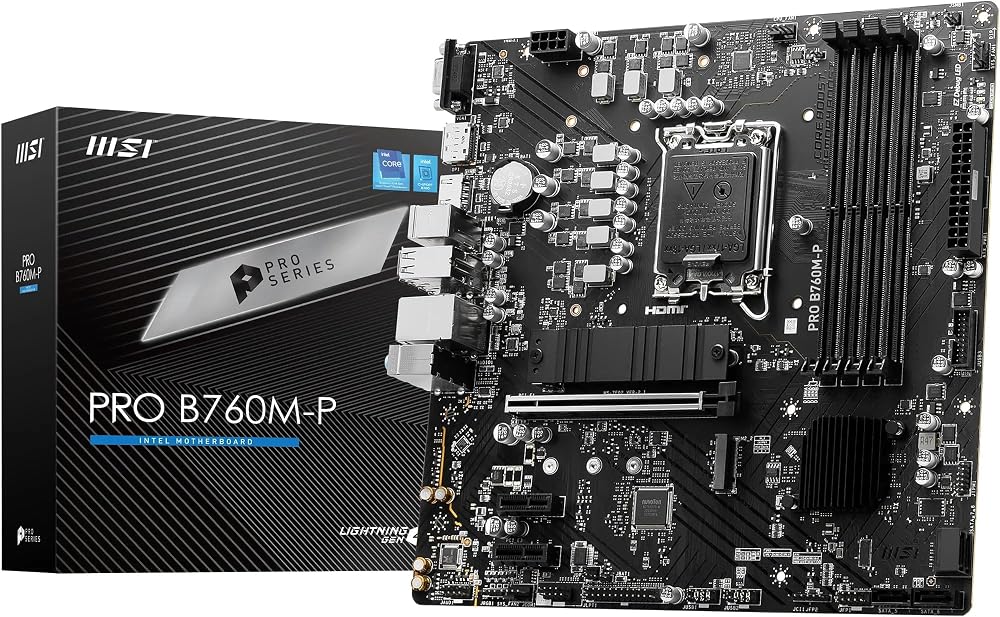

MSI PRO B760M-P Micro-ATX Motherboard LGA1700 DDR5 PCIe 4.0 M.2 2x Gen4

The MSI PRO B760M-P motherboard provides a compact Micro-ATX platform built on the Intel B760 chipset with LGA 1700 socket. It supports 14th, 13th and 12th Gen Intel Core processors and features robust power delivery with Core Boost for stability and performance. The board includes passive chipset cooling and Frozr AI cooling to optimize temperatures based on CPU and GPU activity.

Key Features

• CPU Support - LGA 1700 socket compatible with Intel 14th, 13th, and 12th Gen Core processors.
• Memory - Four DDR5 DIMM slots with Memory Boost circuitry for overclocking up to 6800+ MHz (1DPC 1R supported).
• PCIe - Primary PCIe 4.0 x16 slot with Steel Armor; additional PCIe support as per platform specs.
• Storage - Dual M.2 Gen4 x4 slots (64Gbps); primary slot includes Shield Frozr for thermal management.
• Networking - 1Gbps LAN controller for wired connectivity.
• Audio - 7.1 channel HD audio with Audio Boost for enhanced sound output.
• Rear I/O - USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 Type-A ports, HDMI 1.4, DisplayPort 1.4, VGA.
• Cooling - Passive chipset heatsinks plus AI-driven Frozr cooling to optimize fan profiles automatically.

Specifications

• Form Factor: Micro-ATX
• Chipset: Intel B760
• Socket: LGA 1700
• Memory: 4 x DDR5 DIMM slots; Memory Boost isolated circuitry
• Expansion: PCIe 4.0 x16; additional PCIe slots as per board design
• Storage: 2 x M.2 Gen4 x4 64Gbps
• Networking: 1 x 1Gbps LAN
• Rear I/O: USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1 Type-A, HDMI 1.4, DisplayPort 1.4, VGA
• Audio: 7.1-channel HD Audio with Audio Boost

Designed for users seeking a compact yet capable motherboard for modern Intel CPUs. Please ensure compatibility with your CPU and RAM specifications prior to purchase.
