MSI B650 GAMING PLUS WIFI Motherboard ATX AM5 AMD Ryzen 9000 8000 7000 DDR5

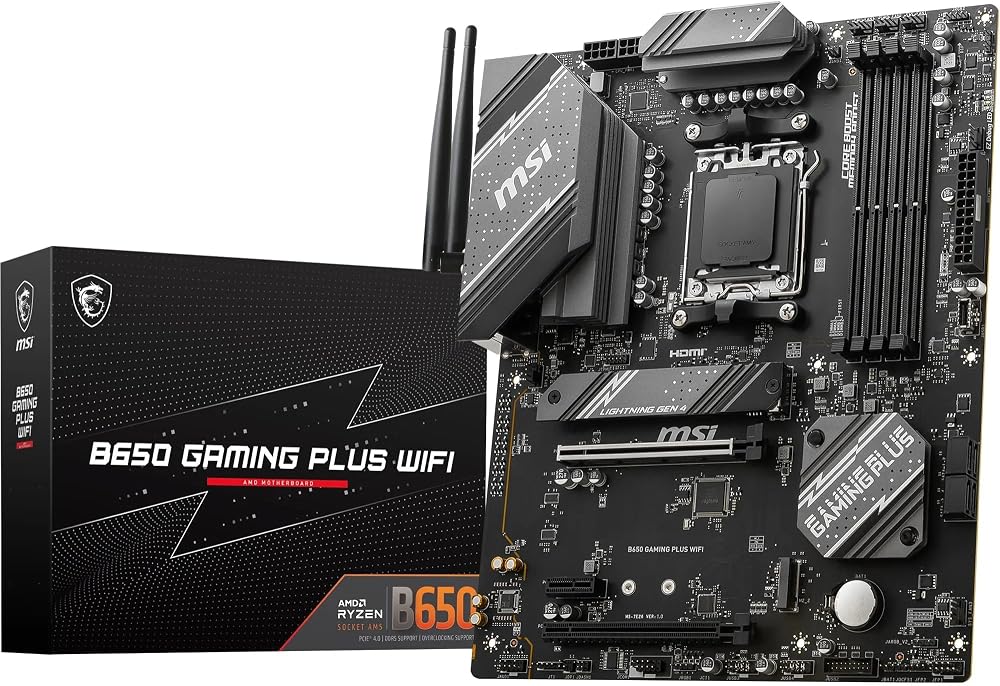

MSI B650 GAMING PLUS WIFI Motherboard

This ATX motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 series processors with its AM5 socket. Built for high performance and gaming, it features a robust power delivery system and advanced cooling solutions.

Key Features

• Ryzen 9000 READY: Supports AMD Ryzen 9000, 8000, and 7000 Series Processors.
• High Performance: Features a 14+2 Duet Rail VRM with 7W/mK MOSFET thermal pads and an extended heatsink for stable power delivery.
• Integrated Cooling: Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header, and a 6-layer PCB with 2 oz. thickened copper for superior heat dissipation.
• DDR5 Memory Boost: 4 x DDR5 DIMM slots supporting Memory Boost isolated circuitry for overclocking up to 6400+ MHz (1DPC 1R).
• Dual PCIe 4.0 x16 Slots: Two slots offering 64GB/s bandwidth, with the primary slot featuring Steel Armor for graphics card protection.
• Dual M.2 Connectors: 2 x M.2 Gen4 x4 slots with M.2 Shield Frozr to prevent thermal throttling during high-speed SSD access.
• Wi-Fi 6E Connectivity: Integrated AMD Wi-Fi 6E module with Bluetooth 5.3 and 2.5Gbps LAN.
• Extensive Connectivity: Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost.

Specifications

• Brand: MSI
• Chipset: AMD B650
• Socket: AM5
• Form Factor: ATX
• Processor Support: AMD Ryzen 9000/8000/7000 Series
• VRM: 14+2 Duet Rail
• Memory Type: DDR5
• Memory Speed: 6400+ MHz (OC)
• PCIe Slots: 2 x PCIe 4.0 x16
• M.2 Slots: 2 x M.2 Gen4 x4
• Networking: Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN
• Rear Ports: USB 3.2 Gen 2x2 Type-C, HDMI 2.1, DisplayPort 1.4, 7.1 HD Audio
