MSI B650M GAMING PLUS WIFI Motherboard AM5 Ryzen 9000 8000 7000 DDR5 Wi-Fi 6E

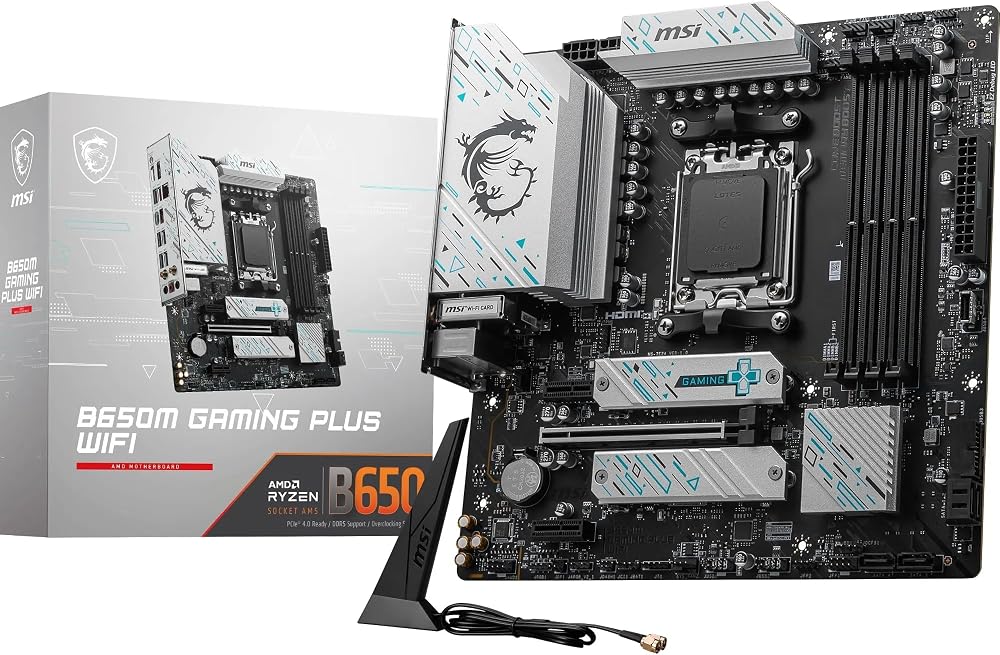

MSI B650M GAMING PLUS WIFI Motherboard

This mATX motherboard, powered by the AMD B650 chipset, is ready for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. It offers high performance and stability for gaming and demanding applications.

Key Features

• Ryzen 9000 Series Ready: Supports latest AMD Ryzen processors.
• DDR5 Memory Boost: Features 4 x DDR5 DIMM slots with isolated circuitry for overclocking up to 7800+ MHz (1DPC 1R).
• PCIe 4.0 x16 Slot: Primary slot supports PCIe 4.0 (64Gbps) with Steel Armor for graphics card protection.
• Dual M.2 Gen4 Connectors: Two M.2 Gen4 64Gbps slots for ultra-fast SSD access, with M.2 Shield Frozr for cooling.
• Integrated Cooling: VRM cooling includes 7W/mK MOSFET thermal pads, an extended heatsink, and a dedicated pump-fan cooling header. 6-layer PCB with 2 oz. thickened copper enhances heat dissipation.
• Wi-Fi 6E Connectivity: Integrated AMD Wi-Fi 6E module with Bluetooth 5.3 for fast wireless networking.
• 2.5Gbps LAN: High-speed wired network connectivity.
• Extensive Rear Ports: Includes USB 3.2 Gen 2 Type-C (10Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost.

Specifications

• Chipset: AMD B650
• Socket: AM5
• Processor Support: AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Memory: 4 x DDR5 DIMM slots, up to 7800+ MHz (OC)
• Expansion Slots: 1 x PCIe 4.0 x16 (Steel Armor), 1 x PCIe 3.0 x1
• Storage: 2 x M.2 Gen4 64Gbps slots
• Networking: AMD Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN
• Rear Ports: USB 3.2 Gen 2 Type-C (10Gbps), HDMI 2.1, DisplayPort 1.4, 7.1 HD Audio
