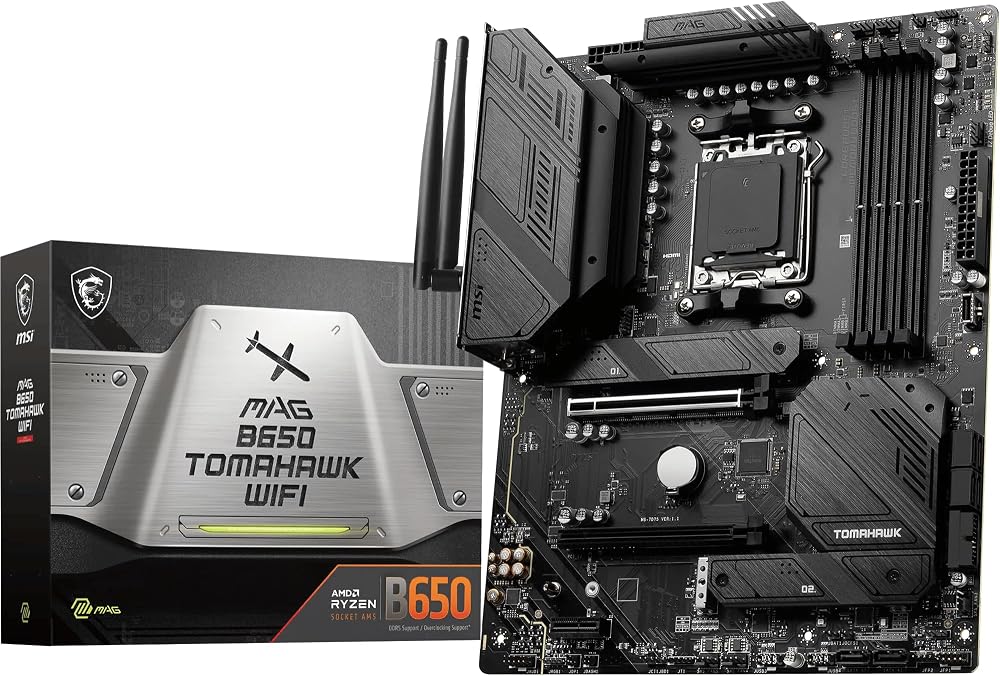

MSI MAG B650 TOMAHAWK WIFI Motherboard ATX AM5 Ryzen 9000 DDR5 Wi-Fi 6E

MSI MAG B650 TOMAHAWK WIFI Motherboard - Power and Connectivity for AMD Ryzen 9000 Series

The MSI MAG B650 TOMAHAWK WIFI motherboard is engineered for high performance, supporting the latest AMD Ryzen 9000 series processors on the AM5 socket. Featuring robust power delivery, advanced cooling, and cutting-edge connectivity, this ATX motherboard is ideal for gamers and enthusiasts.

Key Features

• POWERFUL VRM: 14+2 phase Duet Rail Power System with 80A Power Stage, ready for AMD Ryzen 9000, 8000, and 7000 series processors. Supports multi-core overclocking with Core Boost architecture.
• INTEGRATED COOLING: Features 7W/mK MOSFET thermal pads and an extended heatsink for VRM cooling. Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header, and a 6-layer PCB with 2 oz. thickened copper for enhanced thermal management.
• DDR5 MEMORY SUPPORT: Four DDR5 DIMM SMT slots allow for extreme memory overclocking speeds up to 6400+ MHz (1DPC 1R).
• DUAL PCI-E 4.0 x16 SLOTS: Two PCIe 4.0 x16 slots provide ample bandwidth (64GB/s) for high-performance graphics cards.
• TRIPLE M.2 CONNECTORS: Three M.2 Gen4 x4 64Gbps slots offer premium storage solutions, with two slots equipped with M.2 Shield Frozr to prevent SSD thermal throttling.
• WI-FI 6E CONNECTIVITY: Integrated Wi-Fi 6E with Bluetooth 5.3 for fast and reliable wireless networking.
• 2.5Gbps LAN: High-speed wired network connectivity.
• ADVANCED REAR PORTS: Includes USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output).

Specifications

• Chipset: AMD B650
• CPU Socket: AM5
• Processor Support: AMD Ryzen 9000, 8000, 7000 Series
• Form Factor: ATX
• VRM: 14+2 Duet Rail Power System, 80A Power Stage
• Memory: 4 x DDR5 DIMM Slots, up to 6400+MHz (OC)
• Expansion Slots: 2 x PCIe 4.0 x16
• Storage: 3 x M.2 Gen4 x4 Slots (2 with Shield Frozr)
• Networking: Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN
• Rear Ports: USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, Audio Ports
