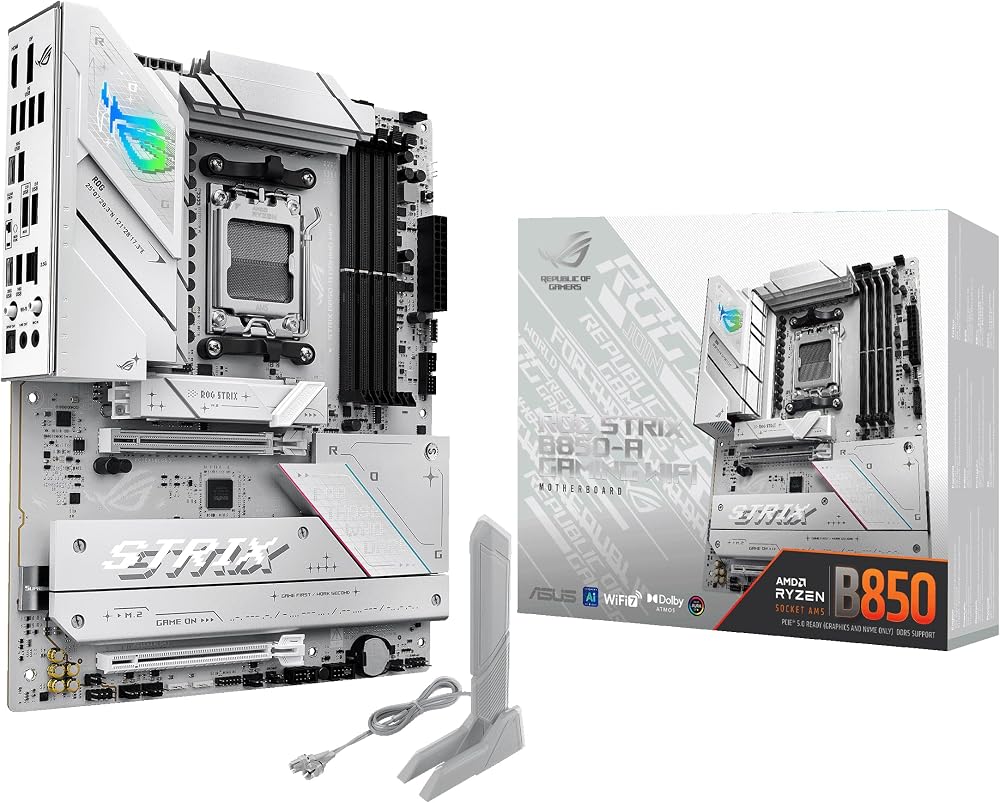

ASUS ROG Strix B850-A Gaming WiFi AMD ATX Motherboard 14+2+2 Power 5.0

Key Features

• Brand: ASUS
• Model: ROG Strix B850-A Gaming WiFi
• Form Factor: ATX
• CPU Socket: AMD AM5 (Ryzen 7000, 8000, 9000 series supported)
• Power Delivery: 14+2+2 power stages, ProCool 8+8 pin
• Memory: DDR5 slots
• PCIe & Storage: PCIe 5.0 x16, four M.2 slots (one onboard PCIe 5.0, three PCIe 4.0) with robust cooling
• Networking: On-board WiFi 7, Intel 2.5 Gb Ethernet
• USB & Front Panel: USB 20 Gbps Type-C, USB 10 Gbps Type-C (front panel), six additional USB 5 Gbps
• Expansion & Features: PCIe SafeSlots, HDMI and DisplayPort, Aura Sync RGB, Q-Design features for easy assembly
• Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, Dolby Atmos support

Overview

This motherboard is designed for high-performance AI-ready systems with expansive connectivity, robust power delivery, advanced cooling, and immersive audio. It supports latest PCIe generations, high-speed USB, WiFi 7, and Aura Sync RGB for synchronized lighting.

Specifications

• Chipset: AMD B850
• Socket: AM5
• Power Phases: 14+2+2 with 80 A per stage
• RAM: DDR5
• M.2 Slots: 4 total (1 onboard PCIe 5.0, 3 PCIe 4.0)
• Wireless: IEEE 802.11be (WiFi 7)
• Ethernet: 2.5 Gb
• Rear I/O: HDMI, DisplayPort, USB-C 20 Gbps
