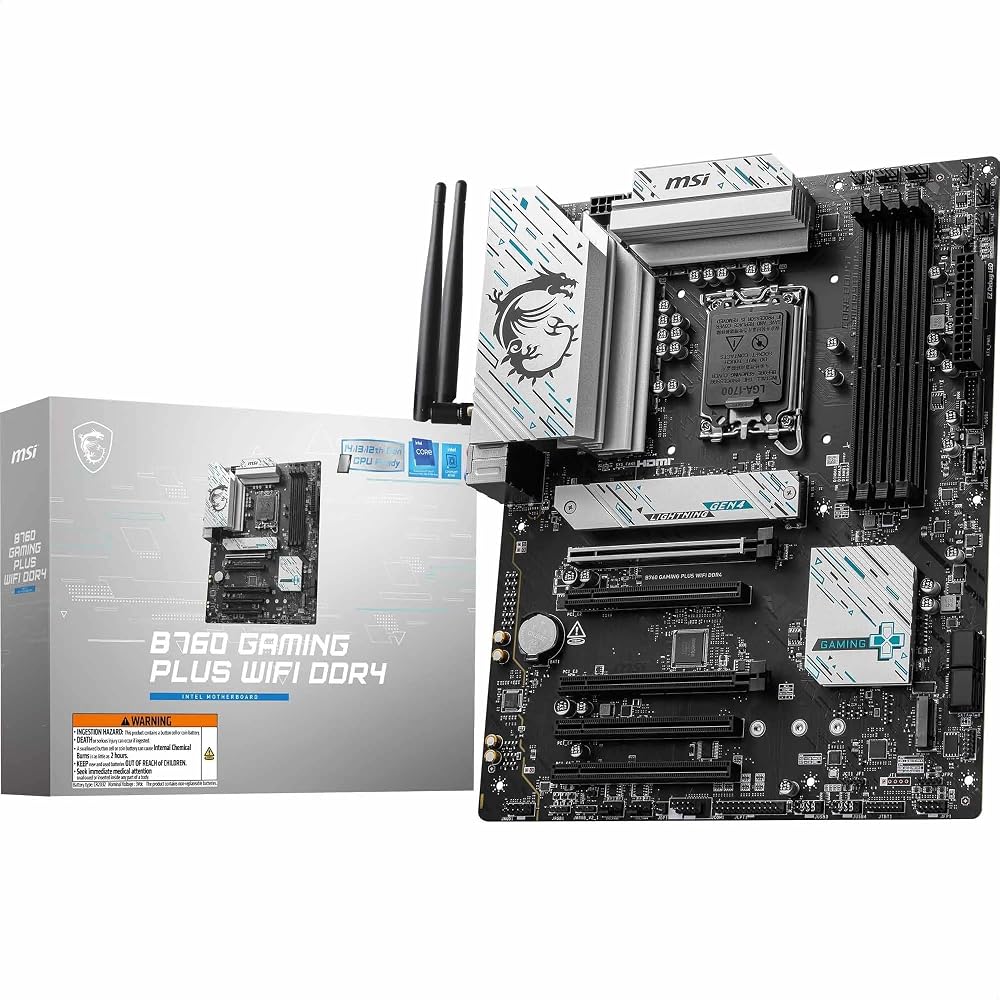

MSI B760 GAMING PLUS WIFI DDR4 ATX Motherboard LGA1700 14th/13th/12th Gen

Key Features

• Brand: MSI
• Model: B760 GAMING PLUS WIFI DDR4
• Form Factor: ATX
• CPU Socket: LGA 1700 (14th, 13th & 12th Gen Core)
• Memory: 4 x DDR4 DIMM slots, Memory Boost with overclocking up to 5333+ MHz
• PCIe: 1 x PCIe 4.0 x16
• Storage: 2 x M.2 Gen4 x4 with M.2 Shield Frozr
• Networking: Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN
• Connectivity: Rear USB 3.2 Gen 2 Type-A, HDMI 2.1, DisplayPort 1.4
• Cooling & Build: Integrated VRM cooling with 7W/mK MOSFET pads, 6-layer server-grade PCB

Specifications

• Memory: 4 x DDR4 DIMM, Memory Boost isolated circuitry
• VRM: 12-Phase Rail Power System, Core Boost technology
• Storage: 2 x M.2 Gen4 slots (one with Shield Frozr)
• Networking: Intel Wi-Fi 6E + Bluetooth 5.3, 2.5 GbE LAN
• Rear I/O: USB 3.2 Gen 2 Type-A, HDMI 2.1, DisplayPort 1.4, audio
• PCB: 6-layer, 2 oz copper

The MSI B760 GAMING PLUS WIFI DDR4 motherboard is designed for high stability and performance with support for Intel 14th, 13th, and 12th Gen processors. It features robust power delivery, aggressive cooling, dual M.2 storage, PCIe 4.0 graphics readiness, and comprehensive Wi-Fi 6E connectivity for fast wireless networking.
