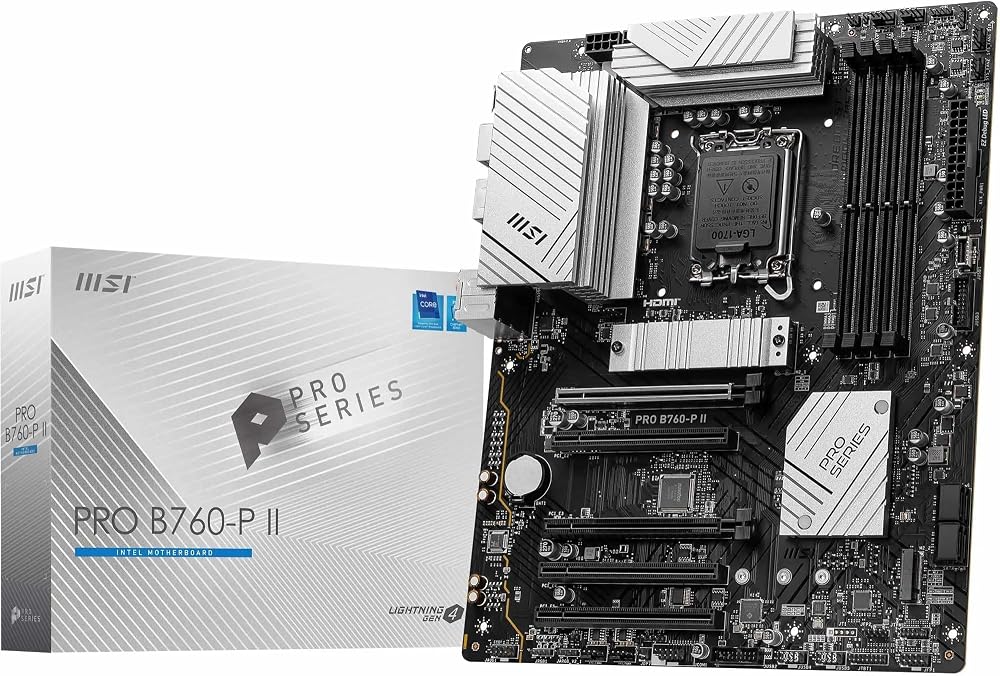

MSI PRO B760-P II Motherboard ATX LGA1700 DDR5 7000+MHz PCIe4.0 2.5G LAN

Key Features

• Brand: MSI
• Model: PRO B760-P II
• Form Factor: ATX
• CPU Socket: LGA 1700 (Intel Core 12th, 13th and 14th Gen)
• Memory: DDR5 with Memory Boost isolation, 7000+ MHz capable
• PCIe: PCIe 4.0 x16 slot(s)
• Storage: 2 x M.2 Gen4 x4 slots with Shield Frozr
• Networking: 2.5G LAN
• Cooling & Build: Integrated VRM cooling with extended heatsink, 6-layer PCB
• Rear I/O: USB 3.2 Gen 2 Type-C, HDMI 2.1, DisplayPort 1.4, 7.1 audio

Overview

The MSI PRO B760-P II is an ATX motherboard designed for Intel 12th, 13th and 14th Gen Core processors on the LGA 1700 platform. It features a 12 DRPS (P-PAK) VRM with MSI Core Boost for stability and performance. Integrated cooling includes 7W/mK MOSFET thermal pads and an extended heatsink, plus a dedicated pump-fan header. Four DDR5 DIMM slots support high-speed overclocking beyond 7000 MHz. Two PCIe 4.0 x16 slots provide robust GPU configurations, and dual M.2 Gen4 x4 slots offer fast storage with Shield Frozr for thermal protection. Networking includes 2.5G LAN and expanded rear I/O for modern peripherals.

Specifications

• Chipset: Intel B760
• VRM: 12 DRPS (P-PAK) with Core Boost
• Memory: DDR5, 4 x DIMM, 7000+ MHz OC capable
• Slots: 1 x PCIe 4.0 x16 (primary, Steel Armor), 1 x PCIe 4.0 x16 (secondary)
• Storage: 2 x M.2 Gen4 x4, Shield Frozr on primary slot
• Networking: 2.5G LAN
• Rear I/O: USB 3.2 Gen 2 Type-C, HDMI 2.1, DisplayPort 1.4, 7.1 CH Audio
