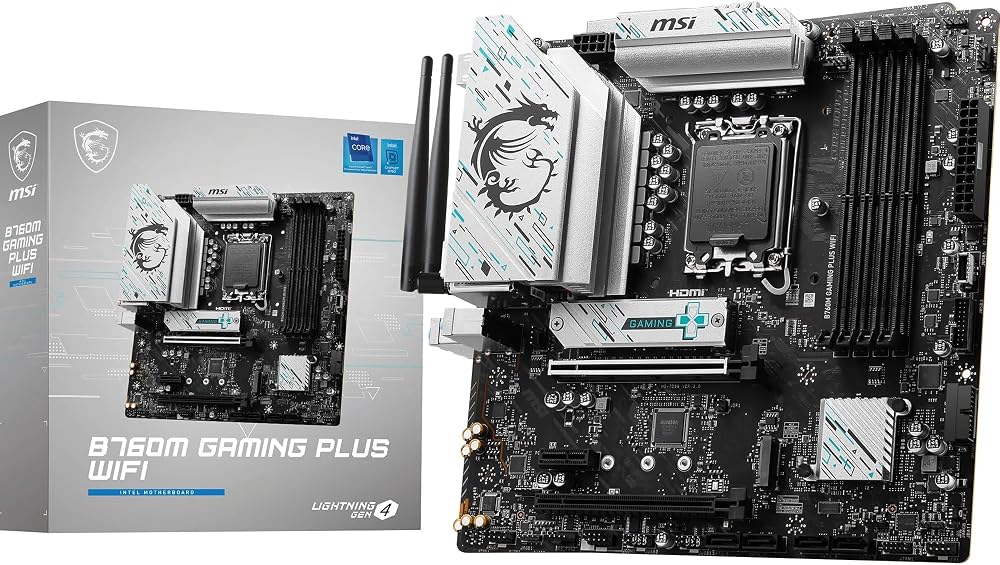

MSI B760M Gaming Plus WiFi Motherboard LGA1700 DDR5 mATX PCIe4.0

Key Features

• Brand: MSI
• Model: B760M Gaming Plus WIFI
• Form Factor: Micro ATX (mATX)
• CPU Socket: LGA 1700 (Intel 14th, 13th & 12th Gen Core)
• Memory: DDR5, Memory Boost up to 6800+ MHz (OC), 4 DIMM slots
• Expansion: 1x PCIe 4.0 x16 slot with Steel Armor
• Storage: 2 x M.2 NVMe Gen4, M.2 Shield Frozr
• Networking: 2.5G LAN and Intel Wi-Fi 6E with Bluetooth
• Rear I/O: USB 3.2 Gen 2x2 Type-C, HDMI 2.1, DisplayPort 1.4
• Cooling & Build: VRM cooling with high-efficiency pads, 6-layer server-grade PCB

Overview

The MSI B760M GAMING PLUS WIFI is a feature-rich micro ATX motherboard designed for Intel 14th, 13th and 12th Gen Core processors. It provides robust VRM cooling, dual M.2 Gen4 storage, PCIe 4.0 support, and high-speed network connectivity with both 2.5G LAN and Wi-Fi 6E for fast, reliable performance in gaming and content creation.

Specifications

• Intel B760
• 12 Duet Rail Power System (75A)
• 4 x DDR5 slots, up to 6800+ MHz OC
• 1 x PCIe 4.0 x16 slot
• 2 x M.2 Gen4 x4 64Gbps (one with Shield Frozr)
• Networking: 2.5G LAN, Intel Wi-Fi 6E + Bluetooth
• Rear Ports: USB 3.2 Gen 2x2 Type-C, HDMI 2.1, DP 1.4
• Audio: 7.1-channel HD Audio with Audio Boost

Includes comprehensive cooling and durability features for sustained performance, with a focus on overclocking headroom and stable operation across Intel 12th to 14th Gen CPUs.
