Youmile SCT-013-000 100A/1V Current Transformer ADS1115 ADC Module Arduino Kit

Youmile SCT-013-000 100A/1V Current Transformer with ADS1115 ADC Module for Arduino

This kit includes a Youmile SCT-013-000 non-invasive split-core current transformer (100A/1V) and an ADS1115 Analog-to-Digital Converter (ADC) module, along with necessary cables, ideal for current monitoring and protection projects with Arduino.

Key Features

• SCT-013-000 Current Transformer: Non-invasive split-core design, 100A max current input, 1V AC output.
• ADS1115 ADC Module: 16-bit resolution for precise measurements, I2C interface.
• Versatile Output: Current and voltage outputs from the transformer.
• Easy Installation: Hanging installation with lead output for the transformer.
• Wide Application: Suitable for AC motors, lighting equipment, air compressors, and more.
• Included Cables: Φ3.5 three-core plug output cable, header, and Dupont wires.

Current Transformer Specifications

• Model: SCT013-000
• Material: Ferrite
• Lead Wire Length: Approx. 1m
• Opening Size: 0.51 x 0.51 inch / 13 x 13mm
• Working Temperature: -25℃ to +60℃
• Storage Temperature: -30℃ to +90℃
• Working Voltage: Less than or equal to 660V
• Frequency Range: 50Hz to 1kHz
• Turns Ratio: 1:2000
• Max Sampling Resistance: 10Ω
• Linearity: Less than or equal to 0.2%
• Accuracy: ±1%
• Fire Resistance Property: UL94-V0
• Standard: GB1208-2006

ADS1115 ADC Module Specifications

• Resolution: 16 Bits
• Programmable Sample Rate: 8 to 860 Samples/Second
• Power Supply/Logic Levels: 2.0V to 5.5V
• Low Current Consumption: Continuous Mode: 150µA, Single-Shot Mode: Auto Shut-Down
• Features: Internal Low-Drift Voltage Reference, Internal Oscillator, Internal PGA (up to x16), I2C Interface (4-Pin-Selectable Addresses), Four Single-Ended or 2 Differential Inputs, Programmable Comparator

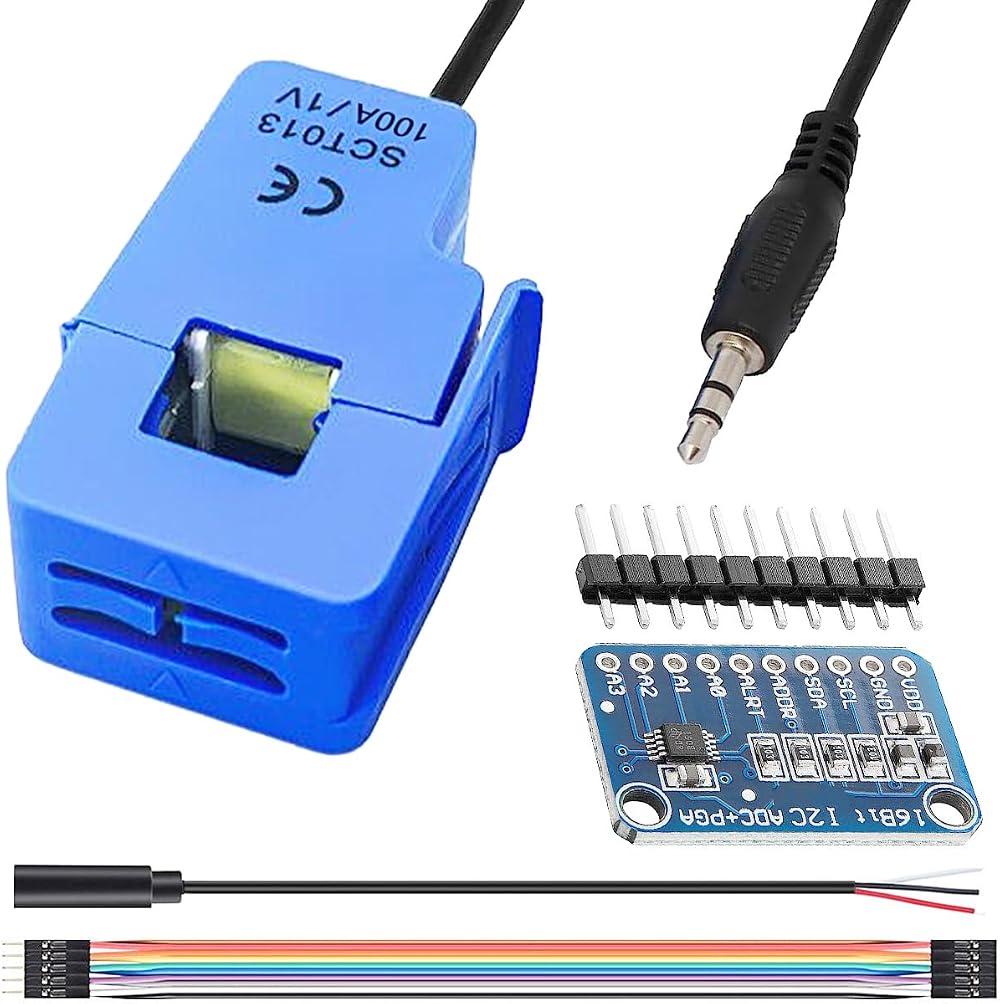

Package Includes

• 1 x SCT-013-000 100A/1V Current Transformer
• 1 x ADS1115 ADC Module
• 1 x 10-pin header
• 1 x Three-wire core audio female cable
• 10 x Male and female Dupont cable
