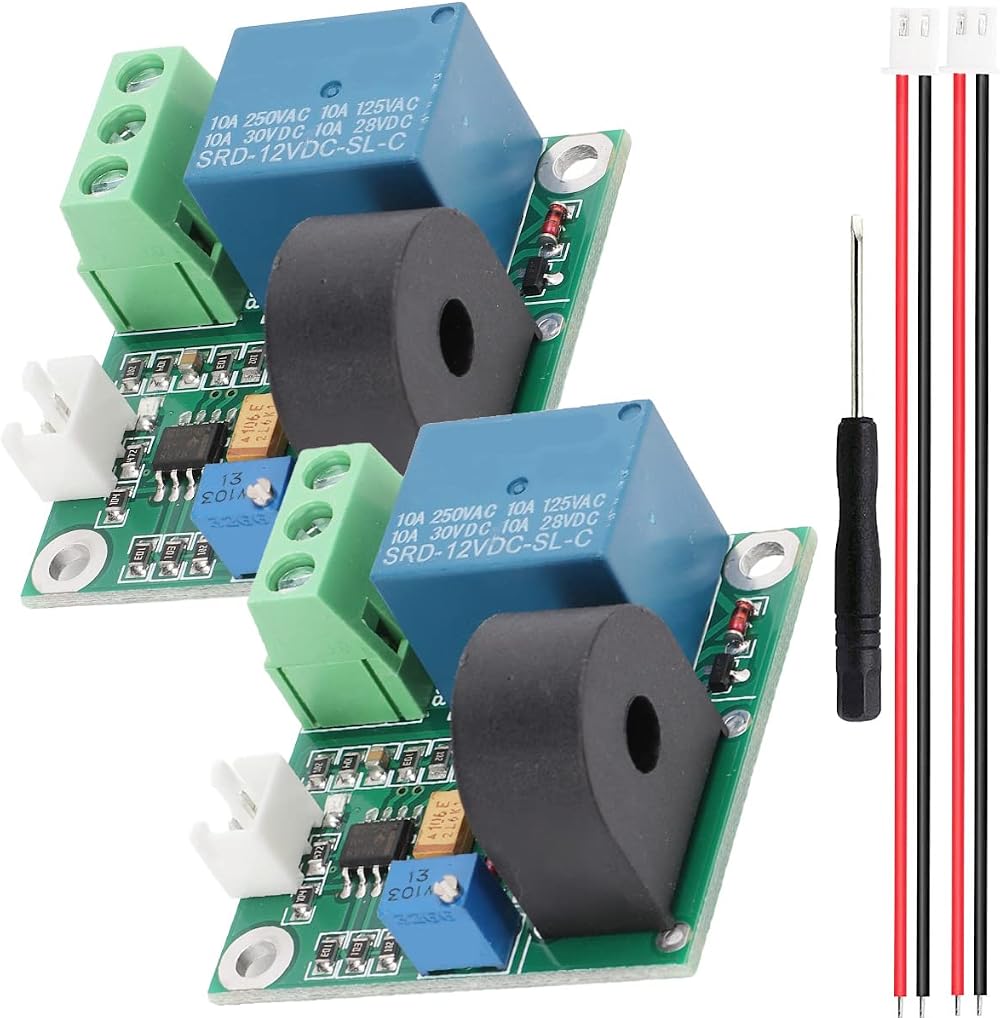

Youmile 2x AC Current Sensor Module 0-5A Relay Over-Current Protection Switch

Product Description

This current detection sensor module is designed to detect and prevent equipment damage caused by overcurrent. By setting a specific overcurrent threshold, the module provides relay protection.

Key Features

• Type: Current Detection Sensor
• Current Detection Range: AC 0.3A - 5A
• Operating Voltage: DC 5V / 12V / 24V (select upon purchase)
• Working Current: Less than 10mA
• Relay Load Capacity: AC 250V 10A Max, DC 30V 10A Max
• Overcurrent Signal Setting: Adjustable with 0.3A resolution
• Induction Sensitivity: Adjustable via potentiometer
• Operating Frequency Range: 20Hz - 400Hz
• Output Mode: Switch signal output
• Maximum Detection Wire Diameter: 5.2mm
• Mounting Hole Dimensions: 3mm diameter, 52.5mm pitch
• Operating Environment: -40℃ to 85℃
• Board Size: Approximately 38 x 44mm / 1.5 x 1.7 inches

Board Interface Description

• VCC: Operating voltage positive
• GND: Operating voltage negative
• NO: Normally open terminal
• COM: Common relay terminal
• NC: Normally closed terminal

Package Includes

• 2 x Youmile AC Current Detection Sensors (12V model included)
• 1 x Screwdriver
