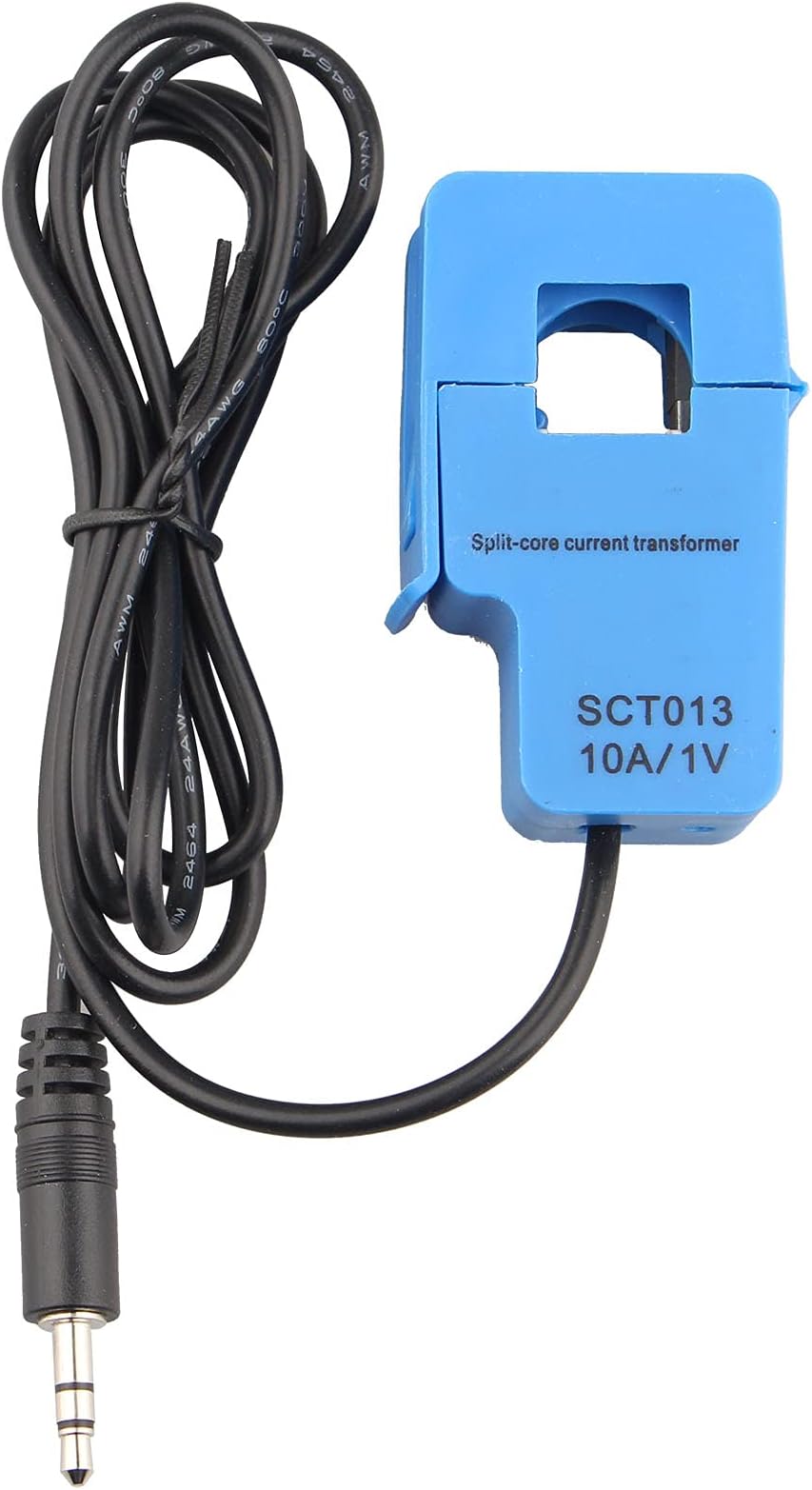

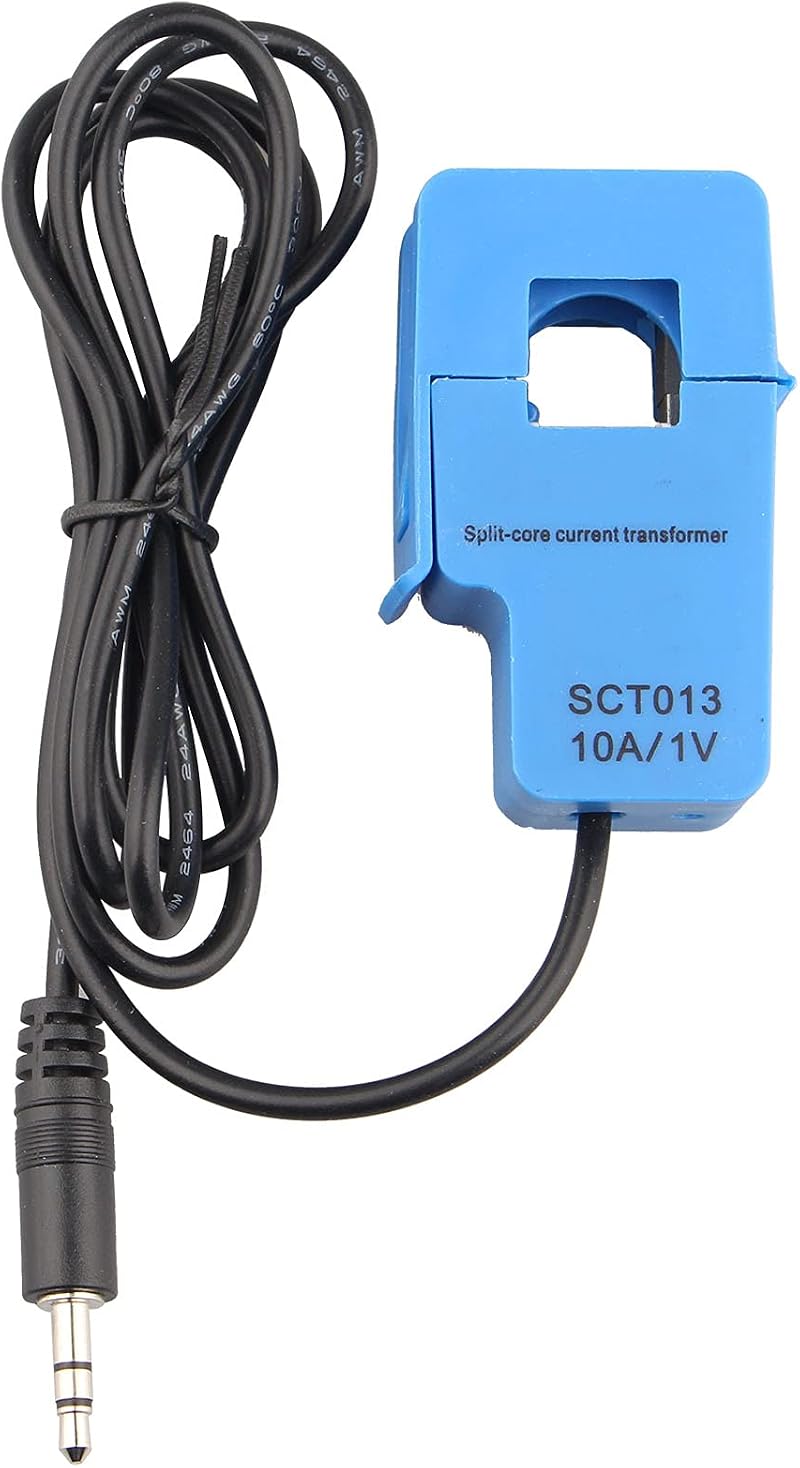

HALJIA SCT013-000 AC Current Sensor Split Core Transformer 10A 1V Arduino DIY

Product Overview

The HALJIA SCT-013-000 is a non-invasive split core AC current sensor transformer. It is designed for measuring alternating current and is ideal for DIY projects, especially with Arduino. This sensor is widely applicable for current measurement, monitoring, and protection in AC motors, lighting equipment, and air compressors.

Key Features

• Non-invasive design for easy installation without interrupting the circuit.
• Split core for convenient opening and closing around existing wires.
• Wide applications including AC motors, lighting, and air compressors.
• Durable construction with premium ferrite material.
• Standard output with a 3.5mm 3-core plug and 1m leading wire.
• Dual output options: current and voltage (with built-in sampling resistor for voltage output).
• High mechanical strength with over 1000 opening/closing cycles.
• Safety certified with dielectric strength of 6000V AC/1min and UL94-VO fire resistance.

Specifications

• Product Name: Non-invasive AC Current Sensor
• Model: SCT-013-000
• Rated Input Current: 10A
• Output Voltage: 1V
• Material: Ferrite
• Frequency: 50Hz - 150KHz
• Non-linearity: 3% (10% - 120% rated input current)
• Leading Wire Length: Approx. 1 meter
• Output Plug: 3.5mm 3-core
• Operating Temperature: -25°C to +70°C
• Opening Size: Approx. 13.5 mm x 13.5 mm
• Shell Size: Approx. 57mm x 32 mm
• Weight: 59.7g

Package Includes

• 1x HALJIA SCT-013-000 10A Split Core Current Transformer
