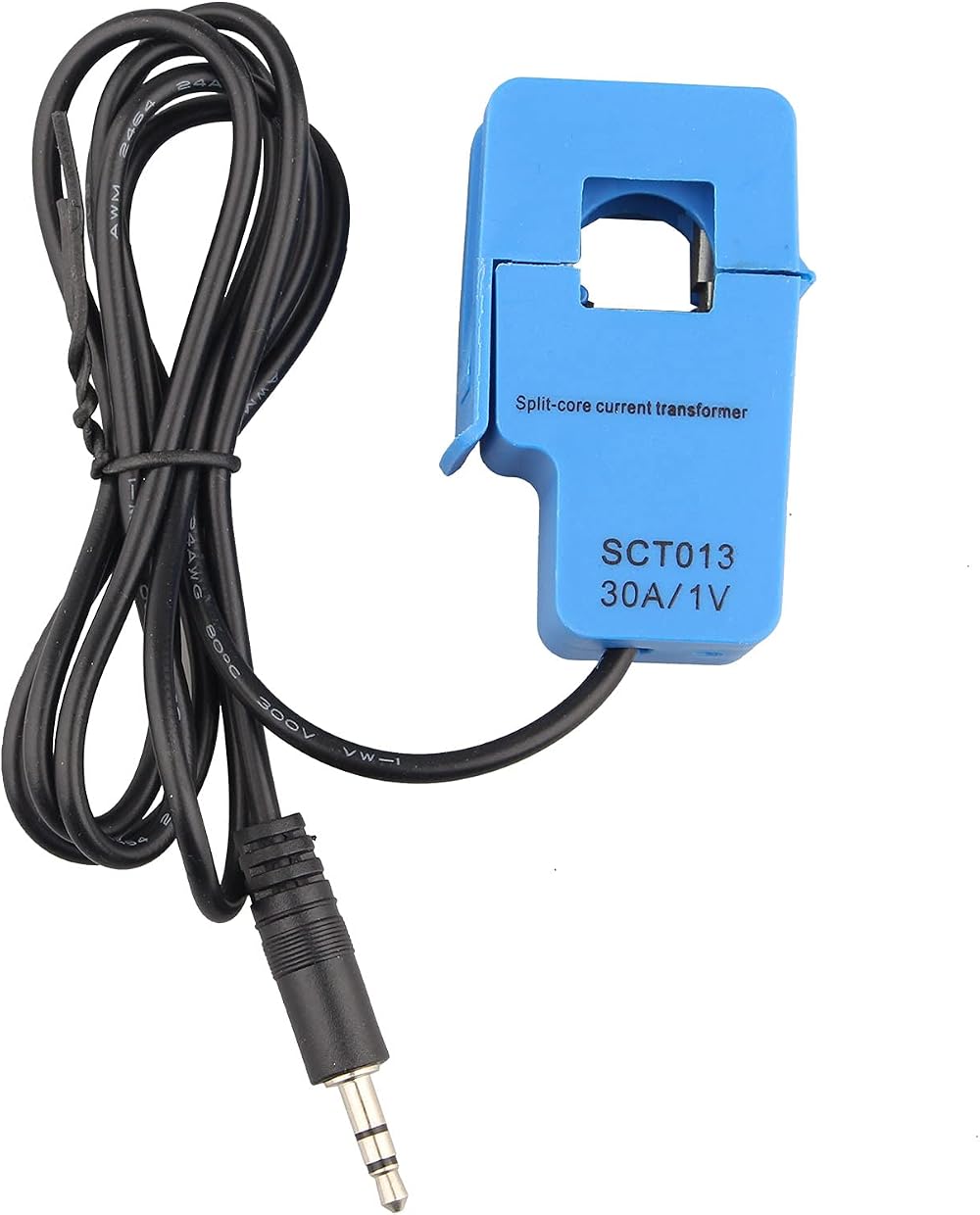

HALJIA SCT-013-000 AC Current Sensor Split Core Transformer 30A 1V Arduino

Product Overview

The HALJIA SCT-013-000 is a non-invasive split core AC current sensor transformer, designed for measuring alternating current. It is ideal for use in DIY projects and is suitable for various applications including AC motors, lighting equipment, and air compressors for current measurement, monitoring, and protection.

Key Features

• Non-invasive Design: Allows for easy installation without interrupting the power circuit.
• Split Core: Facilitates simple attachment around existing wires.
• Durable Construction: Manufactured with premium ferrite material for long-lasting use.
• Versatile Application: Suitable for measuring AC motors, lighting, air compressors, and more.
• Standard Output: Features a 3.5mm 3-core plug with a 1-meter leading wire.
• Dual Output: Provides both current and voltage outputs (voltage output includes built-in sampling resistor).
• Safety Certified: Fire resistance property meets UL94-VO standards.

Specifications

• Brand: HALJIA
• Model: SCT-013-000
• Rated Input Current: 30A
• Output Voltage: 1V
• Material: Ferrite
• Frequency: 50Hz-150KHz
• Non-linearity: 3% (10%-120% rated input current)
• Leading Wire Length: Approximately 1 meter
• Output Plug: 3.5mm
• Operating Temperature: -25°C to +70°C
• Mechanical Strength: No less than 1000 opening and closing times at 20°C
• Dielectric Strength: 6000V AC/1 minute
• Fire Resistance: UL94-VO
• Open Size: Approximately 13.5 mm x 13.5 mm
• Shell Size: Approximately 57mm × 32 mm
• Weight: 60.4g

Packing List

• 1x HALJIA SCT-013-000 30A Split Core Current Transformer
