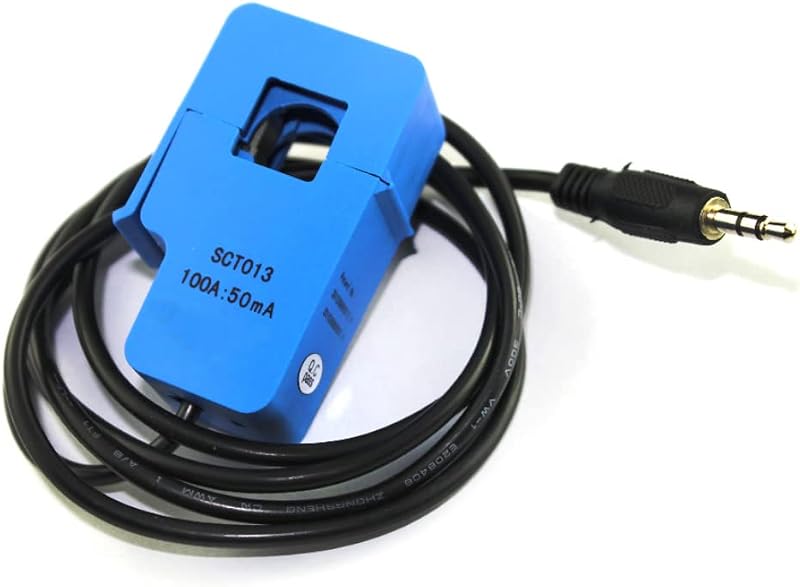

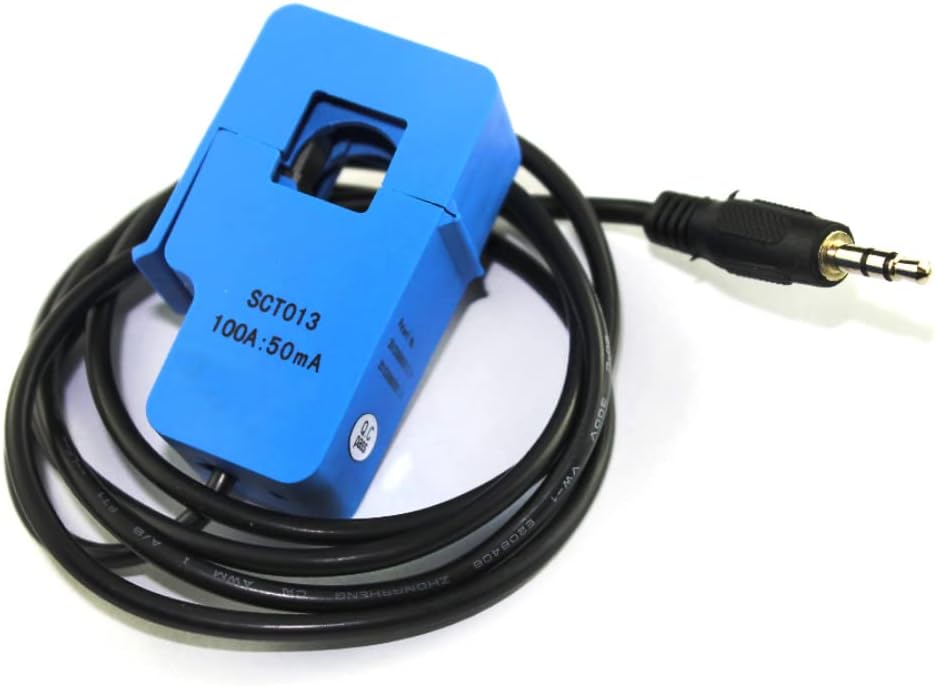

DollaTek SCT-013-000 100A Non-invasive AC Split Core Current Sensor Transformer

DollaTek SCT-013-000 Non-invasive AC Current Sensor Split Core Transformer

This DollaTek SCT-013-000 is a 100A non-invasive AC split core current sensor transformer, designed for precise current measurement, monitoring, and protection of AC motors, lighting, air compressors, and other electrical systems. It offers a reliable and safe solution for various electrical applications.

Key Features

• Model No.: SCT013
• Frequency: 50Hz-150KHz
• Type: Opening and closing split core transformer
• Nominal Input Current: 100A (also supports 60A)
• Core Size: 13mm x 13mm, fully compatible with similar foreign products
• Non-linearity: ±3% (rated input current from 10% to 120%)
• Cable Length: 1.5 meters
• Output: Standard 3.5 pin plug (supports current and voltage output forms, with built-in sampling resistor for voltage output)
• Safety Rating: Anti-electricity (between shell and output) 6000V AC/1min
• Fireproof Characteristics: Conforms to UL94-V0
• Working Temperature: -25°C to +70°C

Specifications

• Brand: DollaTek
• Model: SCT-013-000
• Current Rating: 100A Nominal Input Current
• Core Opening: Split Core
• Measurement Type: Non-invasive AC Current

Package Includes

• 1 x SCT-013-000 Non-invasive Split Core Transformer for AC 100A Sensor
