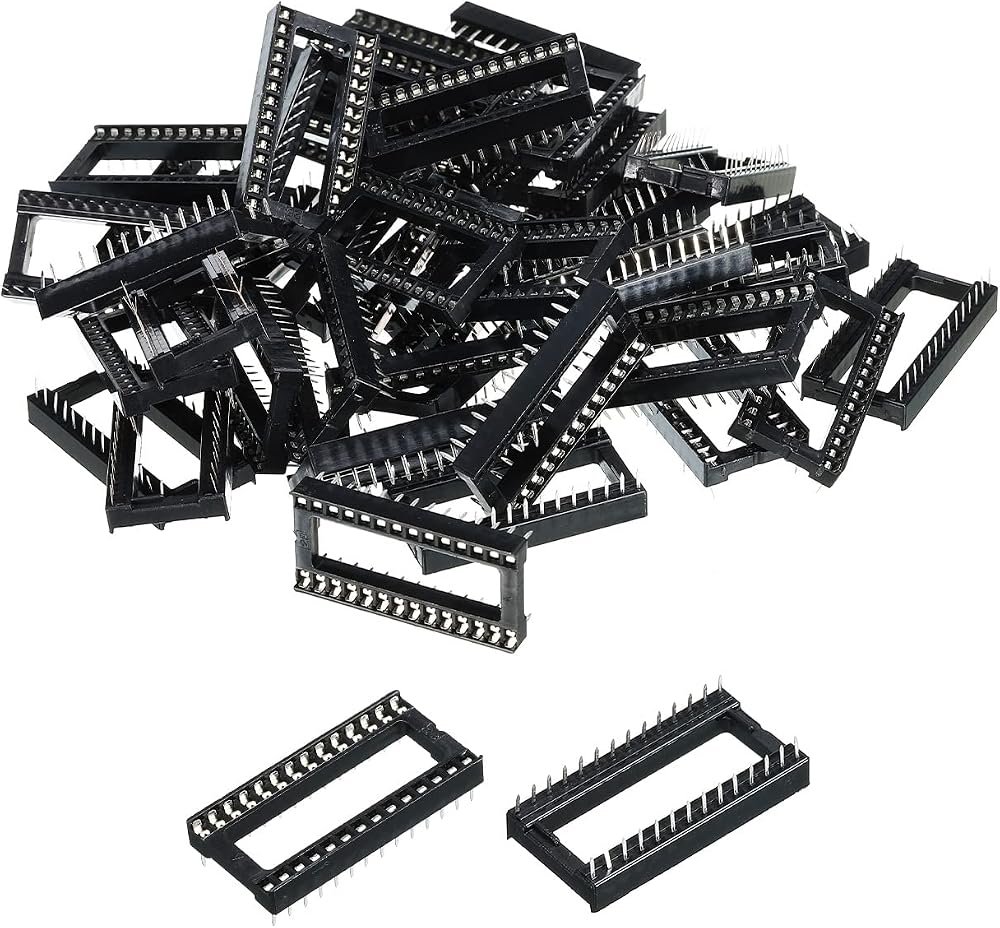

sourcing map 28 Pin DIP IC Socket Adapter Flat Pin 2.54mm Pitch 15mm Row

Product Overview

This sourcing map IC socket adapter is designed for easy connection and replacement of integrated circuits on PCB boards. Featuring a double-row configuration with flat straight pins, these sockets act as a reliable carrier between your chip and the circuit board. They eliminate the need for direct soldering of the chip, allowing for quick installation and removal. Constructed from durable plastic and metal, these sockets offer heat resistance and stable pin connections, capable of withstanding repeated assembly and disassembly without damaging sensitive chips.

Key Features

• Double Row Design: Facilitates secure and organized chip placement.
• Flat Straight Pins: Ensures straightforward insertion into PCB sockets.
• Solderless Chip Installation: Allows chips to be inserted and removed directly without soldering to the PCB.
• Heat Resistant: Ensures reliability in various operating temperatures.
• Good Pin Stability: Withstands repeated assembly and disassembly.
• Chip Replacement Convenience: Simply remove the chip from the socket for easy replacement.

Specifications

• Brand: sourcing map
• Pin Type: Flat Straight Pins
• Number of Pins: 28
• Pitch: 2.54mm / 0.1 inch
• Row to Row Distance: 15mm / 0.6 inch
• Dimensions (LxWxH): 35.5mm x 17.7mm x 8mm / 1.4 x 0.7 x 0.31 inches
• Material: Plastic, Metal
• Quantity: 50 Pack

Ensure the spacing and line spacing of the connector holes on your PCB match the spacing and line spacing of the chip pins for a perfect fit.
