DollaTek SOIC16 SOP16 Test Clip EEPROM 93CXX 25CXX 24CXX 25LXX In-Circuit

DollaTek SOIC16 SOP16 Test Clip for EEPROM In-Circuit Programming

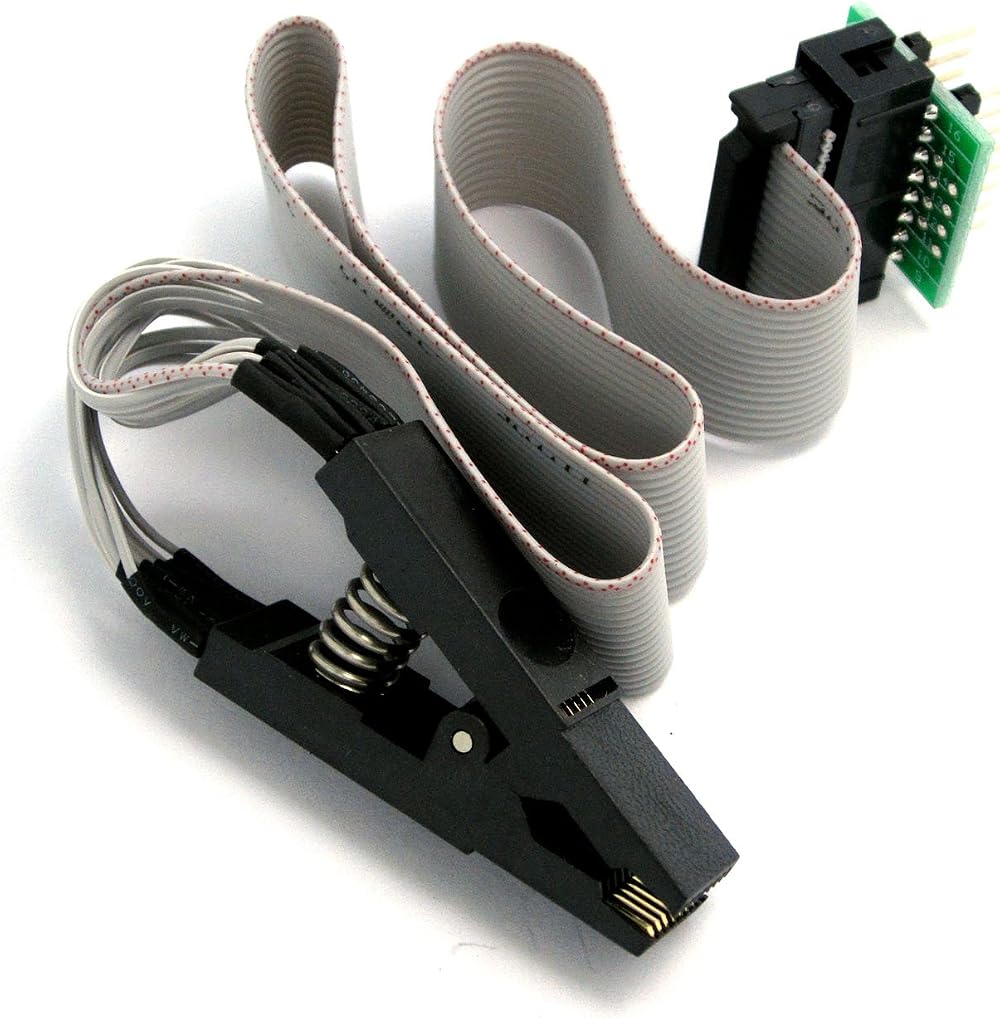

This DollaTek IC programming clip is designed for reading or writing EEPROMs. It enables in-circuit programming of SOP16 chips, allowing you to program chips without removing them from the circuit board. Simply clip the device to the chip and use one of the included breakout adapter boards to connect to your programmer. The ISP cable is wired 1:1, supporting any programmer with a ZIF/DIL socket that is configured for ISP/ICSP mode.

Key Features

• Supports various EEPROMs including 150mil / 209mil - 24Cxx, 25Cxx, 93Cxx, 95xxx, 25Lxx
• Lead Pitch: 2.54mm
• Row Pitch: 3.81mm
• Chip Type: SOIC 16 / SOP16 Clip
• Mechanism: Spring Loaded
• Cable Length: 40 cm

Package Includes

• 1x DollaTek Test Clip with 40 cm cable
• 1x Breakout adapter boards
