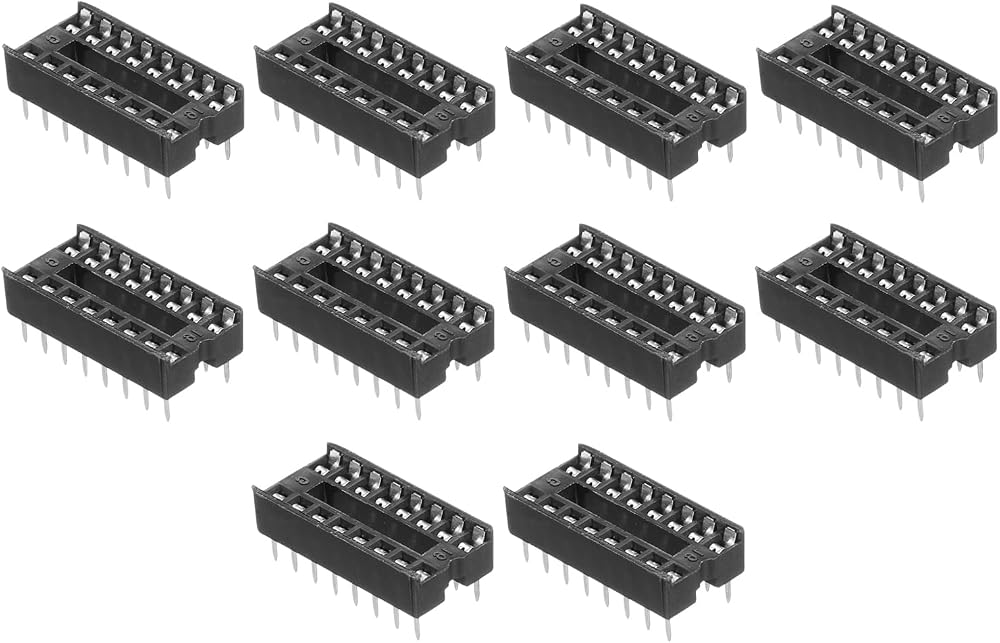

sourcing map 20Pcs DIP IC Socket Adapter 16 Pin 2.54mm Pitch Flat Circuit Chip

What is an IC Chip Socket Adapter?

An IC Chip Socket Adapter is a component designed to house integrated circuits (ICs). ICs are small circuit boards made of semiconductor materials, containing numerous electronic components connected by wires and metal lines to form a complete circuit system.

What You Will Receive

• Pitch: 2.54mm / 0.1 inch
• Number of Pins: 16
• Row Distance: 7.6 mm
• Material: Plastic, Metal
• Total Size: 20 x 10 x 8 mm (0.79 x 0.39 x 0.31 inches) (Length*Width*Height)
• Package Content: 20 Pieces of DIP IC Chip Socket Adapters

Product Advantages

These IC sockets allow for direct insertion and removal of chips without the need for soldering to the PCB board. They are heat resistant, offer good pin stability, and can withstand repeated assembly and disassembly without damaging the chip.

How to Use

The IC socket acts as a carrier between the chip and the PCB circuit board, enabling the chip to be plugged in and removed directly without soldering.

Important Considerations

Ensure that the spacing and line spacing of the connector holes on the socket precisely match the spacing and line spacing of the chip pins for proper compatibility.
