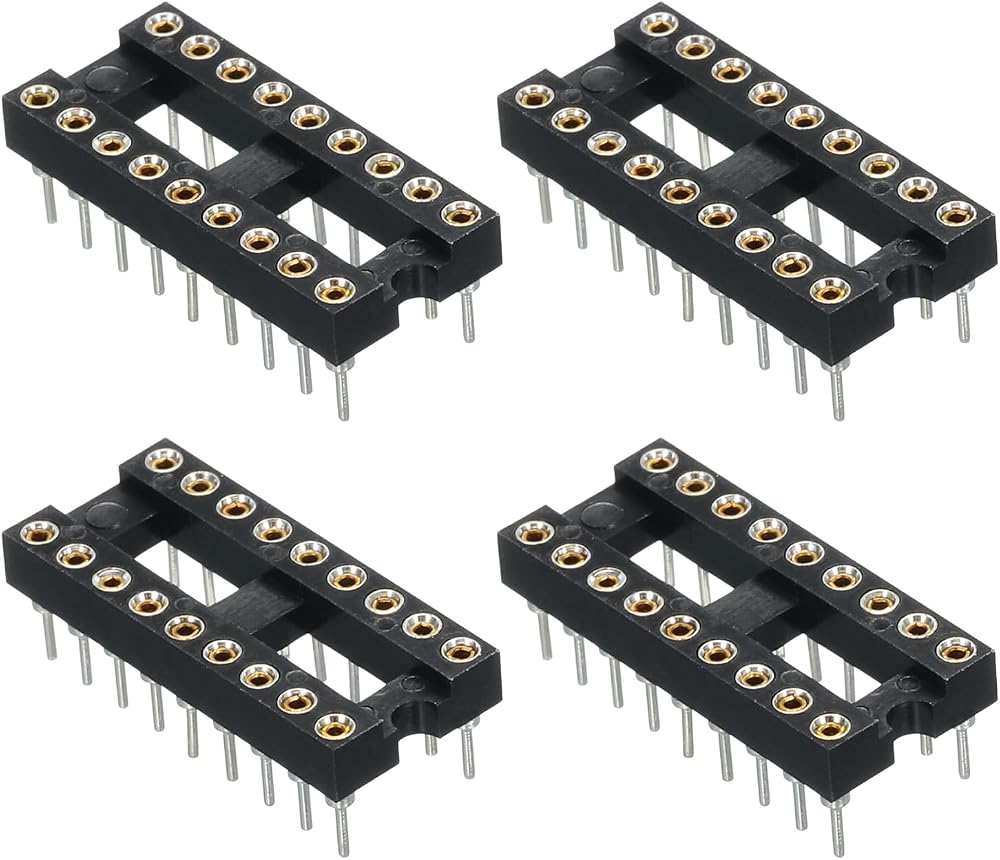

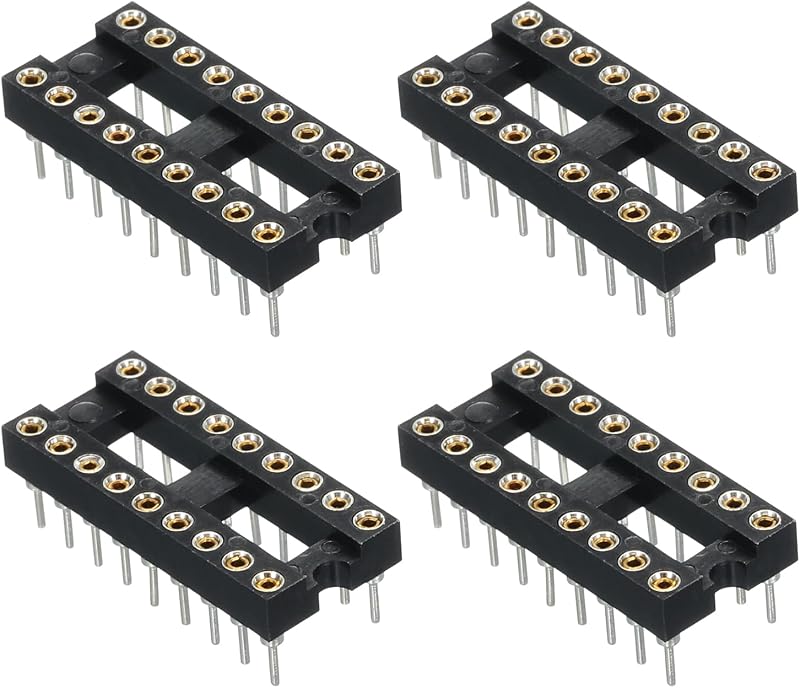

sourcing map 4pcs DIP IC Socket Adapter Round Pin 18P 2.54mm Pitch for PCB

Product Overview

This IC socket features double rows with round pins, serving as a crucial carrier between chips and PCB circuit boards. It's an essential electronic component for connecting chips to printed circuit boards.

What You Will Receive

• Package Content: 4pcs IC Socket
• Material: Plastic, Metal

Specifications

• Pitch: 2.54mm / 0.1-inch
• Row to Row Distance: 7.7mm / 0.3-inch
• Size (LxWxH): 23x10.2x7.5mm / 0.91x0.4x0.3-inch

Key Features

• Allows direct insertion and removal of chips without soldering to the PCB.
• Features heat resistance and good pin stability.
• Withstands repeated assembly and disassembly without damaging the chip.

Usage Instructions

To replace or install a chip, simply disconnect the connection between the IC socket and the chip.

Important Considerations

Ensure that the spacing and line spacing of the connector holes on the socket match the spacing and line spacing of the chip pins.
