sourcing map 2pcs DIP IC Socket Adaptor Solder Type 16 Pin 2.54mm Pitch Dual Row

Name: sourcing map 2pcs DIP IC Socket Adaptor Solder Type 16 Pin 2.54mm Pitch Dual Row
Brand: sourcing map
SKU: B07H3S6S8Z
Price: 6.29 GBP
Availability: InStock

IN STOCK

£6.29Inc. VAT

Next-day delivery · £1.99

Order by 2pm for same-day dispatch · FREE over £35

Standard UK DeliveryFREE — get it by Sun 25 Oct – Wed 28 Oct

Sold by Bubble Booth ✓ (1)

Qty

Delivery

Standard UK Delivery·3–5 daysFREE

Next Day UK Delivery·1 day·Free over £35£1.99

EU Delivery·7–14 days£12.99

Worldwide Delivery·14–28 days£19.99

Same-day dispatchOrder by 2pm, Mon–Fri

30-day returns30 days to change your mind

Buyer protectionEvery order covered

Secure paymentProcessed by Mollie

Details

Product codeUKP-KG7

Brandsourcing map

CategoryIC Sockets

About this item

Product Overview

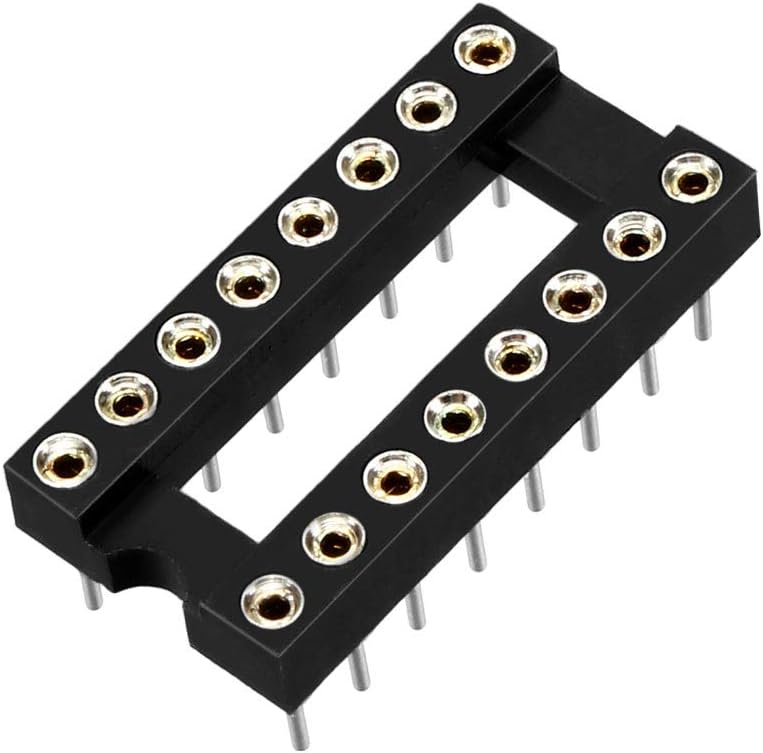

This listing is for a pack of two sourcing map DIP IC Chip Sockets. These solder-type adaptors are designed for easy integration and replacement of IC chips, protecting both the chip and PCB board from damage during repeated welding and disassembly.

Key Features

Product Name: DIP IC Socket
Quantity: 2 pieces
Type: Solder Type Adaptor
Pitch: 2.54mm / 0.1"
Row to Row Distance: 7.6mm / 0.3"
Number of Pins: 16 Round Pins
Protects IC chips and PCB boards from damage during soldering and disassembly.
Allows for easy replacement of IC chips without damaging the chip or PCB.
Reduces IC costs and saves time on assembly.
Strong vibration and heat resistance.
Convenient installation and ease of use.

Installation Instructions

To install, first solder the IC chip to the IC connector. Then, solder the IC connector to the PCB board. For chip installation or replacement, simply disconnect the IC connector from the PCB board without altering the chip or connector's internal connection.

Important Note

Ensure that the spacing and line spacing of the connector holes precisely match the spacing and line spacing of the chip pins for proper compatibility.
