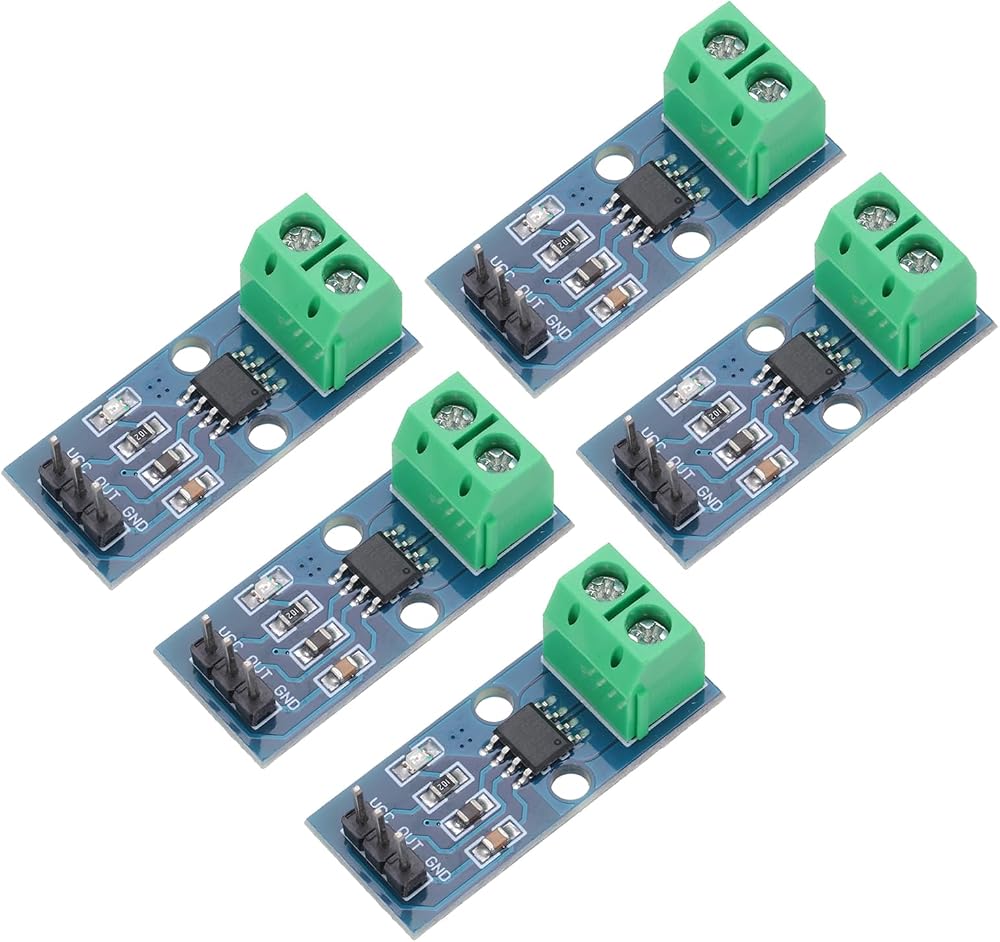

sourcing map ACS712 Current Sensor Module 5A Hall Effect AC DC Measuring

Name: sourcing map ACS712 Current Sensor Module 5A Hall Effect AC DC Measuring
Brand: sourcing map
SKU: B0DK6S7FHD
Price: 10.39 GBP
Availability: InStock

IN STOCK

£10.39Inc. VAT

Next-day delivery · £1.99

Order by 2pm for same-day dispatch · FREE over £35

Standard UK DeliveryFREE — get it by Sun 25 Oct – Wed 28 Oct

Sold by Bubble Booth ✓ (1)

Qty

Delivery

Standard UK Delivery·3–5 daysFREE

Next Day UK Delivery·1 day·Free over £35£1.99

EU Delivery·7–14 days£12.99

Worldwide Delivery·14–28 days£19.99

Same-day dispatchOrder by 2pm, Mon–Fri

30-day returns30 days to change your mind

Buyer protectionEvery order covered

Secure paymentProcessed by Mollie

Details

Product codeUKP-MI3

Brandsourcing map

CategorySensors

About this item

Product Overview

The sourcing map ACS712 current sensor module is a Hall effect current sensor designed for precise measurement of DC or AC current intensity. It is widely utilized in applications such as current detection, motor control, power management, smart home systems, industrial automation, and green energy solutions.

Key Features

Current Sensor Chip: ACS712ELC-5A
Power Supply: 5V with on-board power indicator
Measuring Range: ±5A
Analog Output: 100mV/A
Zero Current Output: VCC/2 (when no current is detected)
High accuracy and low drift
Fast response speed
High reliability
Wide application range

Specifications

Brand: sourcing map
Model: ACS712ELC-5A
Current Range: ±5A
Sensitivity: 100mV/A
Output Voltage (Zero Current): VCC/2

Usage Notes

Connect the current to be measured in series with the input terminals of the ACS712. Please pay attention to the correct direction of connection. The ACS712 operates based on the Hall effect principle; therefore, it is recommended to minimize exposure to external magnetic fields during operation to ensure accurate readings.
