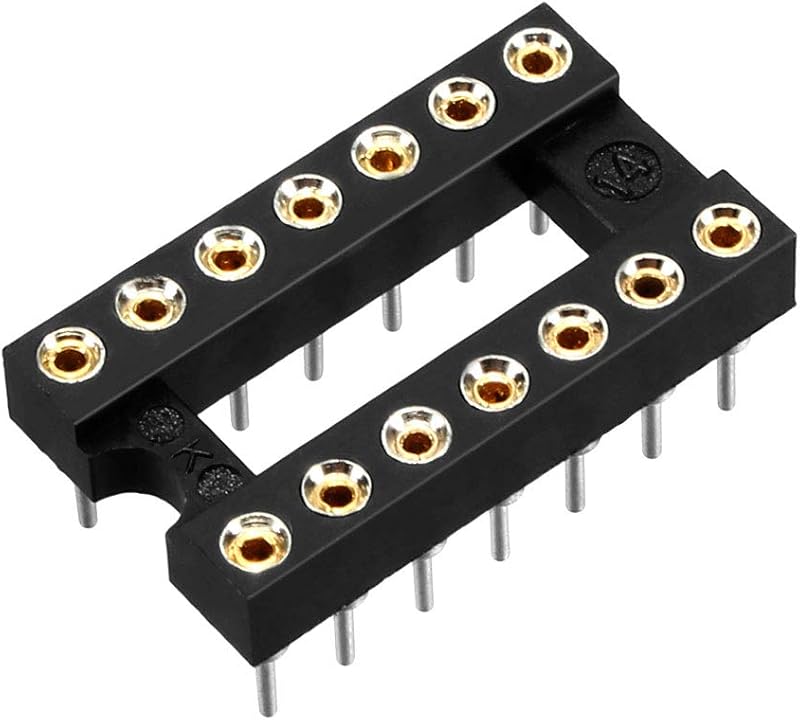

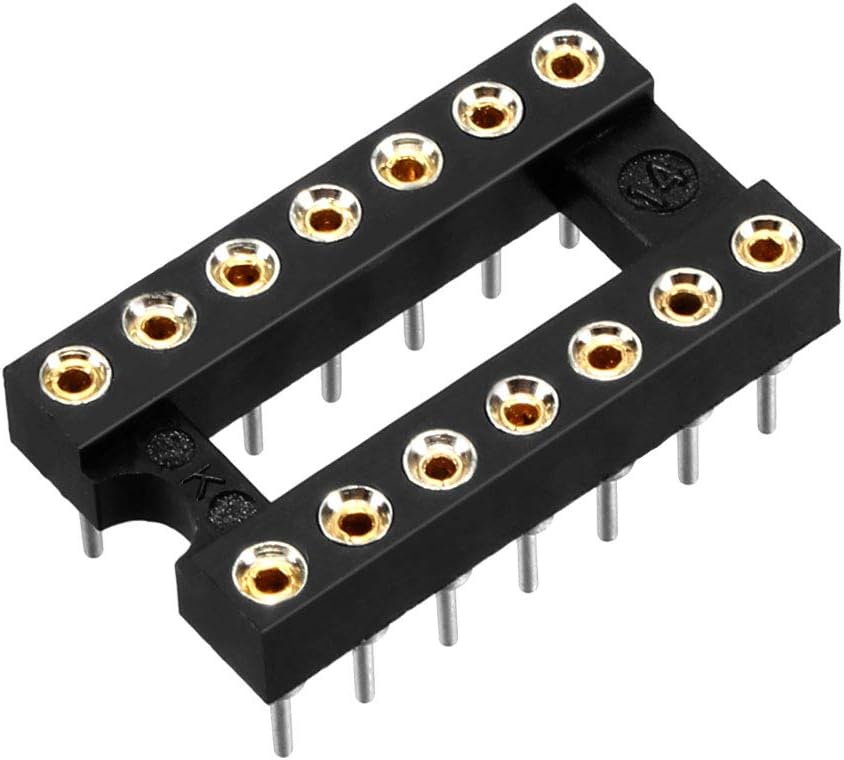

sourcing map 33pcs DIP IC Socket 14 Pin 2.54mm Pitch Dual Row 7.6mm Row Pitch
Next-day delivery · £1.99
Order by 2pm for same-day dispatch · FREE over £35
Standard UK DeliveryFREE — get it by Sun 25 Oct – Wed 28 Oct
Sold by Bubble Booth ✓ (1)
+
Delivery
Details
About this item
Product Overview
This listing is for sourcing map 33 pieces of DIP IC Chip Socket Adaptors. These sockets are designed for 14-pin integrated circuits with a standard 2.54mm (0.1 inch) pitch and a row-to-row distance of 7.6mm (0.3 inch).
Key Features
- DIP IC Socket Adaptors: Facilitates easy installation and replacement of IC chips.
- Quantity: Includes 33 pieces for multiple applications.
- Pin Configuration: 14 Pins per socket.
- Pitch: 2.54mm (0.1 inch) standard pitch.
- Row Spacing: 7.6mm (0.3 inch) row-to-row distance.
- Protection: Prevents damage to IC chips and PCB boards during repeated soldering and disassembly.
- Cost and Time Saving: Allows for chip replacement without affecting the PCB board, saving on rework and component costs.
- Durability: Offers strong vibration and heat resistance.
- Ease of Use: Features convenient installation and operation.
Installation and Usage
To install, first solder the IC chip to the IC connector socket. Then, solder the IC connector socket to the PCB board. When a chip needs to be replaced, simply disconnect the IC socket from the PCB, allowing for easy chip swapping without impacting the existing connections or board.
Important Note
Ensure that the spacing and line spacing of the connector holes precisely match the spacing and line spacing of your IC chip pins for proper fit and function.
Details
Compare sellers (1)
Every offer is covered by UKyard buyer protection and 30-day returns.
Condition Brand new
Free UK delivery · 3–5 days
Get it by Sun 25 Oct – Wed 28 Oct
