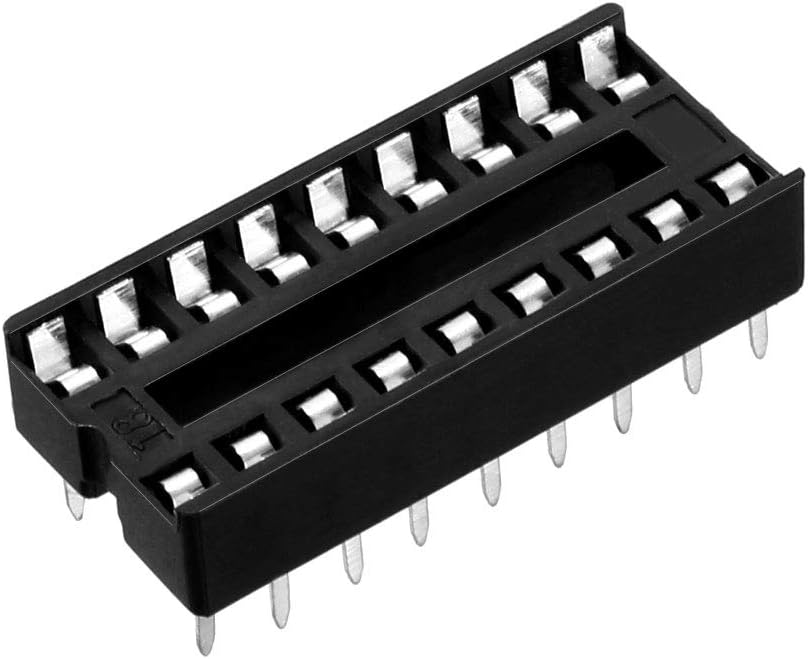

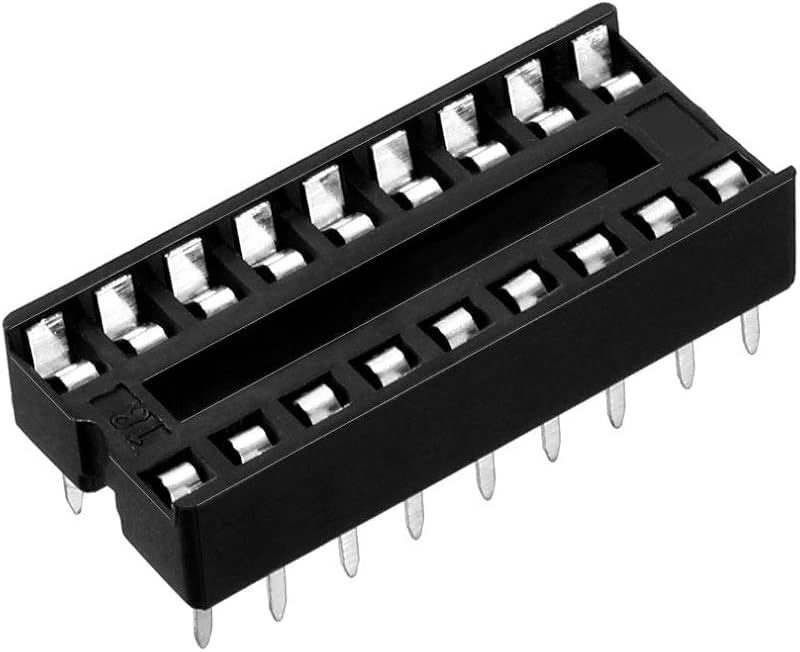

sourcing map 25pcs DIP IC Socket 18 Pin 2.54mm Pitch Dual Row Solder Adaptor

Product Overview

This listing is for 25 pieces of sourcing map DIP IC Chip Sockets. These solder type adaptors are designed for dual-row configurations with a 2.54mm pitch and 18 flat pins, featuring a 7.6mm row pitch.

The IC socket serves as a carrier for IC chips. It allows for repeated welding and disassembly without damaging the chip or the PCB board, effectively saving on IC costs and time. Installation involves first soldering the chip to the IC connector, then soldering the IC connector to the PCB board. When a chip needs replacement, the connection between the IC connector and the PCB board can be directly removed, keeping the chip and connector intact.

Key Features

• Product Name: DIP IC Socket
• Quantity: 25 pieces
• Type: Solder Type Adaptor
• Configuration: Dual Row
• Number of Pins: 18 Flat Pins
• Pitch: 2.54mm / 0.1 inch
• Row to Row Distance: 7.6mm / 0.3 inch
• Material: Plastic and Metal

Advantages

• Strong vibration and heat resistance.
• Withstands repeated welding and disassembly.
• Convenient and easy installation.
• Protects IC chips and PCB boards.
• Cost and time saving for chip replacement.

Important Note

Ensure the spacing and line spacing of the connector holes match the spacing and line spacing of your chip pins for proper installation.
