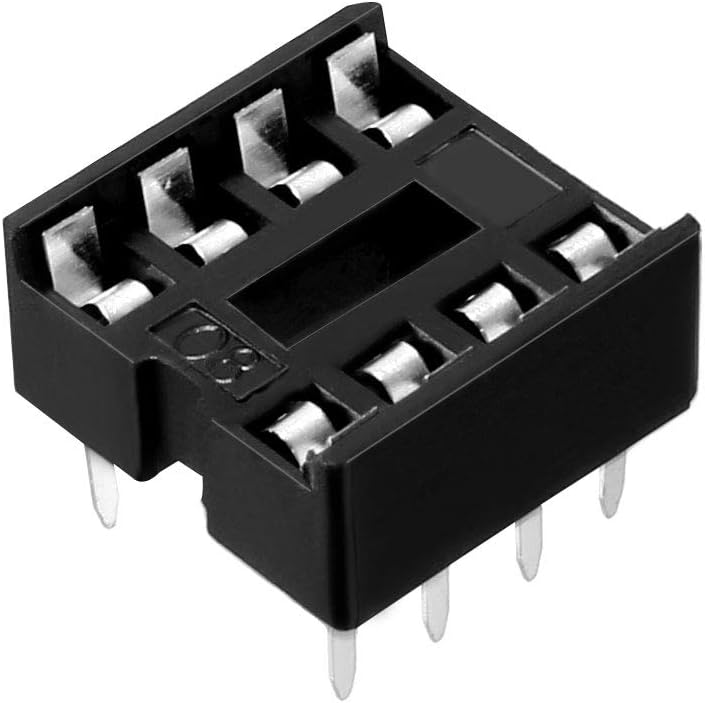

sourcing map 20pcs DIP IC Socket Solder 2.54mm Pitch 8 Pin Dual Row 7.6mm Row

Product Overview

This listing is for a pack of 20 sourcing map DIP IC Chip Sockets. These are solder type adaptors designed for easy insertion and removal of IC chips without damaging them or the PCB. They offer a cost-effective and time-saving solution for prototyping and repeated component replacement.

Key Features

• Brand: sourcing map
• Type: DIP IC Chip Socket Adaptor
• Connection: Solder Type
• Pitch: 2.54mm / 0.1 inch
• Number of Pins: 8
• Configuration: Dual Row
• Row to Row Distance: 7.6mm / 0.3 inch
• Durability: Strong vibration and heat resistance
• Reusability: Withstands repeated welding and disassembly
• Ease of Use: Convenient installation

How to Use

Install the IC chip onto the IC connector first, then solder the IC connector to the PCB board. To replace or install a chip, simply disconnect the IC connector from the PCB board without altering the chip or connector connections.

Important Note

Ensure the spacing and line spacing of the connector holes match the pins of your IC chip for proper installation.
