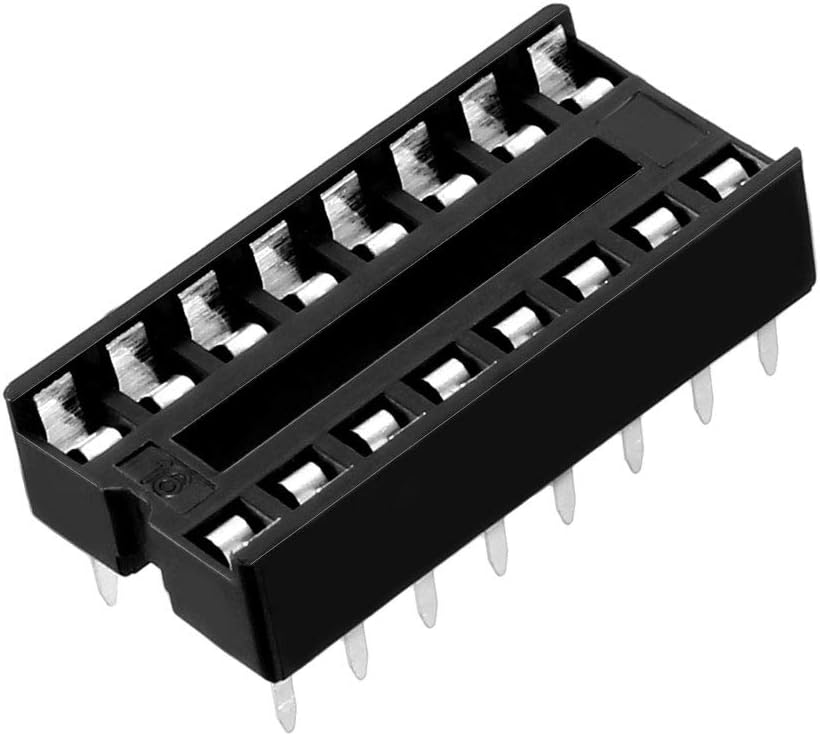

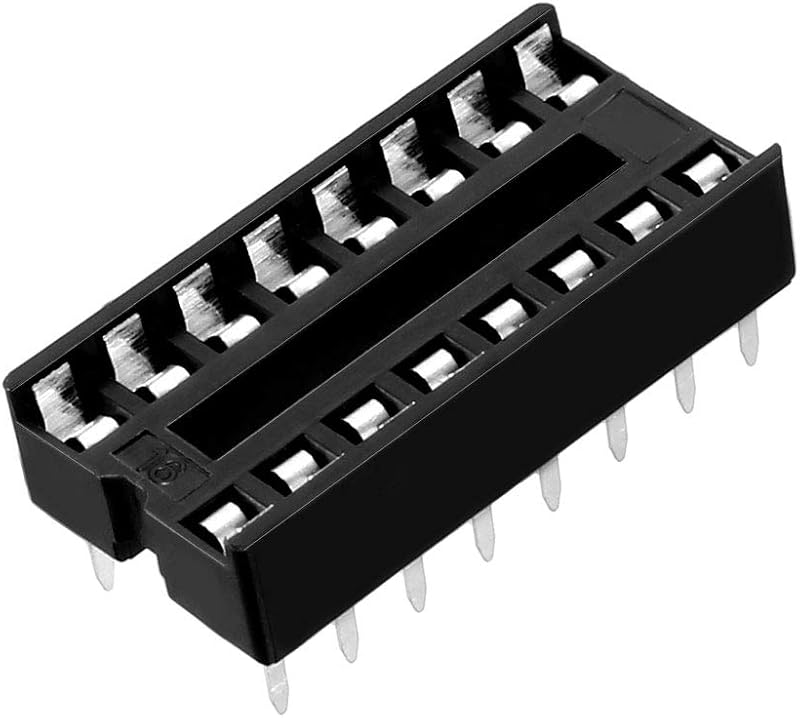

sourcing map 20pcs DIP IC Socket Adaptor Solder Type 16 Pin 2.54mm Pitch Dual

Product Overview

This set includes 20 DIP IC chip sockets designed for solder applications. These sockets allow for easy replacement and protection of IC chips, preventing damage to both the chip and the PCB during repeated welding and disassembly.

Key Features

• Product Name: DIP IC Socket
• Type: Solder Type Adaptor
• Number of Pins: 16 Pins
• Pitch: 2.54mm (0.1 inch)
• Row to Row Distance: 7.6mm (0.6 inch)
• Quantity: 20 pieces
• Protection: Protects IC chips and PCB boards from damage during soldering and desoldering.
• Cost and Time Saving: Allows for chip replacement without affecting the PCB, saving on IC costs and assembly time.
• Durability: Offers strong vibration and heat resistance, suitable for repeated installation and removal.
• Ease of Use: Convenient installation and simple to use.

Installation and Usage

Install the IC chip onto the IC connector first, then solder the IC connector to the PCB board. To replace or install a chip, simply disconnect the IC connector from the PCB, without altering the chip's connection to the socket.

Important Note

Ensure that the spacing and line spacing of the connector holes precisely match the spacing and line spacing of your IC chip pins for proper compatibility.
