sourcing map 20pcs DIP IC Socket Solder Type 2.54mm 28 Pin 7.62mm Row Pitch

Name: sourcing map 20pcs DIP IC Socket Solder Type 2.54mm 28 Pin 7.62mm Row Pitch
Brand: sourcing map
SKU: B07H3S9ZYX
Price: 7.59 GBP
Availability: InStock

IN STOCK

£7.59Inc. VAT

Next-day delivery · £1.99

Order by 2pm for same-day dispatch · FREE over £35

Standard UK DeliveryFREE — get it by Sun 25 Oct – Wed 28 Oct

Sold by Bubble Booth ✓ (1)

Qty

Delivery

Standard UK Delivery·3–5 daysFREE

Next Day UK Delivery·1 day·Free over £35£1.99

EU Delivery·7–14 days£12.99

Worldwide Delivery·14–28 days£19.99

Same-day dispatchOrder by 2pm, Mon–Fri

30-day returns30 days to change your mind

Buyer protectionEvery order covered

Secure paymentProcessed by Mollie

Details

Product codeUKP-KFX

Brandsourcing map

CategoryIC Sockets

About this item

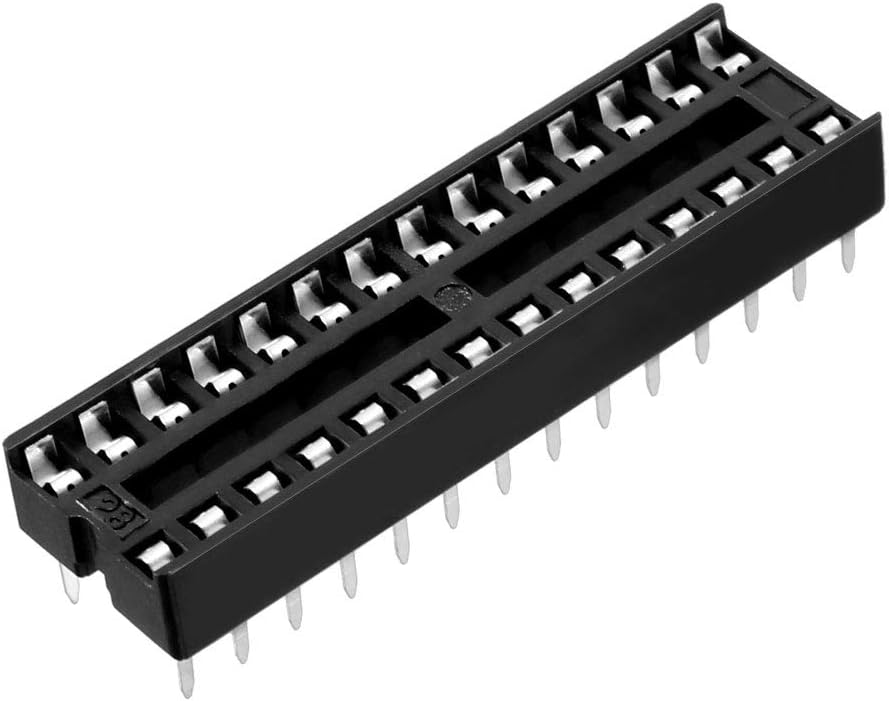

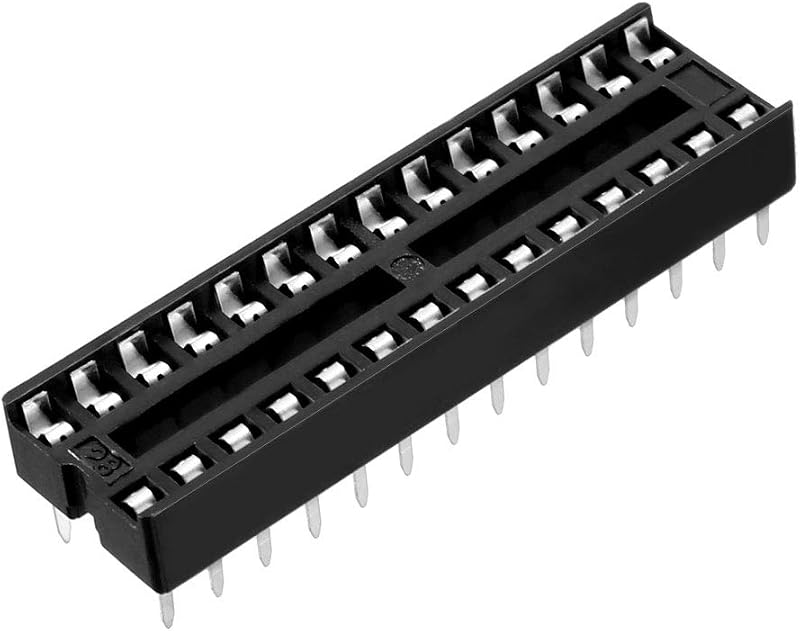

DIP IC Chip Sockets - Solder Type

These sourcing map DIP IC sockets are designed for easy installation and replacement of integrated circuits. They allow for repeated welding and disassembly without damaging the IC chip or PCB board, saving costs and time.

Key Features

Product Name: DIP IC Socket
Pitch: 2.54mm / 0.1"
Row to Row Distance: 7.62mm / 0.3"
Number of Pins: 28
Type: Solder Type
Quantity: 20 pieces
Strong vibration and heat resistance
Can withstand repeated welding and disassembly
Convenient and easy to use installation

Installation and Usage

First, solder the IC chip to the IC connector. Then, solder the IC connector to the PCB board. To install or replace the chip, simply remove the connection between the IC connector and the PCB board, without altering the chip or connector's internal connections.

Note: Ensure the spacing and line spacing of the connector holes match the spacing and line spacing of the chip pins for proper fitment.
