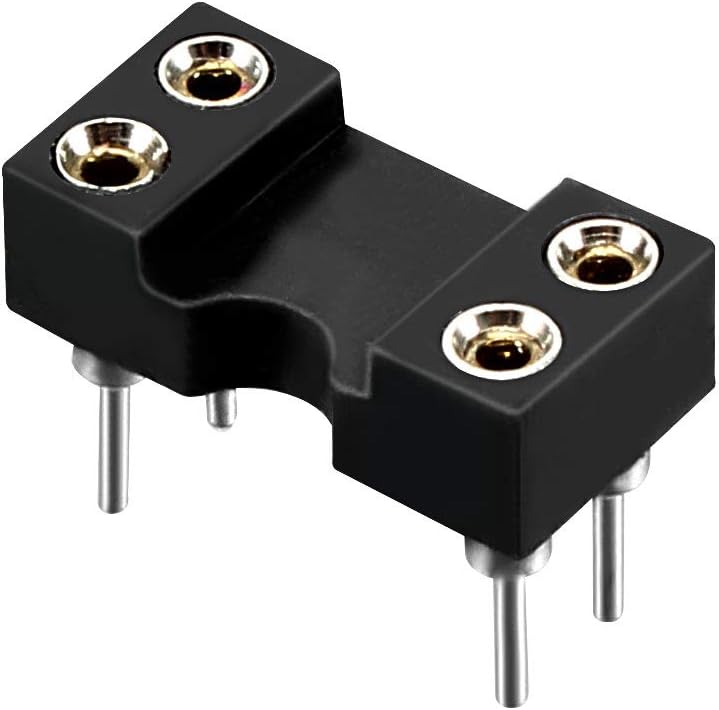

sourcing map 10pcs DIP IC Socket 2.54mm Pitch 4 Pin Solder Type Dual Row Round

Product Overview

This listing is for a pack of 10 sourcing map DIP IC Chip Sockets. These solder-type adaptors feature a 2.54mm pitch and a dual-row design with 4 round pins, offering a row-to-row distance of approximately 7.6mm. They are designed to serve as a carrier for IC chips, allowing for repeated welding and disassembly without damaging the chip or PCB board, thereby saving IC costs and time.

How to Use

To install, first solder the IC chip to the IC connector. Then, solder the IC connector to the PCB board. When you need to install or replace the chip, you can directly remove the connection between the IC connector and the PCB board without altering the chip or connector. Ensure the spacing and line spacing of the connector holes match the chip pins for proper installation.

Key Features

• Product Name: DIP IC Socket
• Brand: sourcing map
• Quantity: 10 pieces
• Pitch: 2.54mm / 0.1''
• Row to Row Distance: Approximately 7.6mm / 0.3''
• Number of Pins: 4
• Type: Solder Type, Dual Row, Round Pin
• Durability: Strong vibration and heat resistance
• Reusability: Withstands repeated welding and disassembly
• Installation: Convenient and easy to use

Specifications

• Pitch: 2.54mm
• Row to Row Distance: 7.6mm
• Number of Pins: 4
