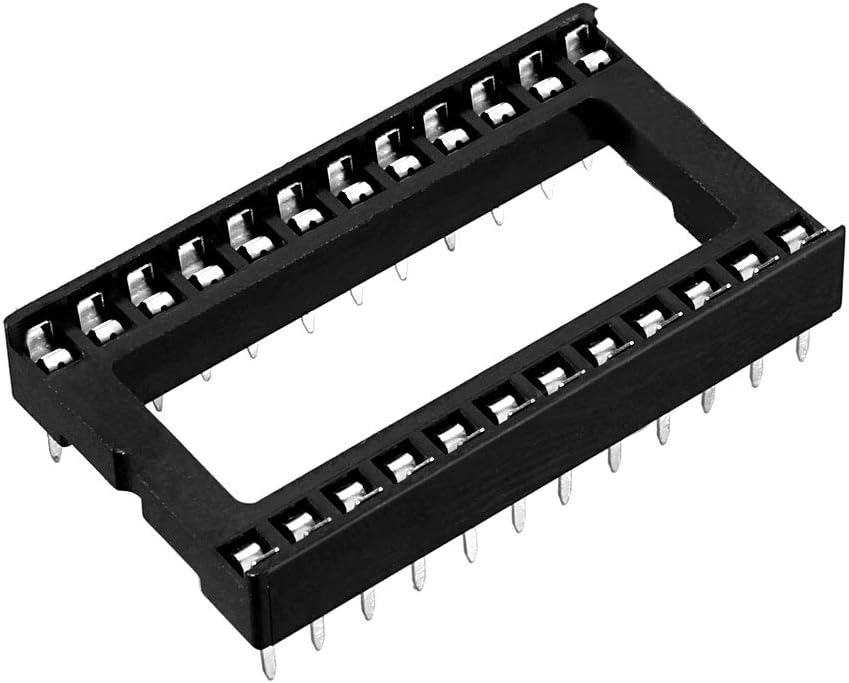

sourcing map 10pcs DIP IC Socket Adaptor Solder Type 24 Pin 2.54mm Pitch Dual
Next-day delivery · £1.99
Order by 2pm for same-day dispatch · FREE over £35
Standard UK DeliveryFREE — get it by Sun 25 Oct – Wed 28 Oct
Sold by Bubble Booth ✓ (1)
+
Delivery
Details
About this item
Product Overview
This listing is for 10 pieces of sourcing map DIP IC Chip Sockets. These are solder type adaptors designed for easy installation and replacement of IC chips.
Key Features
- Product Name: DIP IC Socket
- Quantity: 10 pieces
- Type: Solder Type Adaptor
- Pitch: 2.54mm / 0.1 inch
- Row to Row Distance: 15.24mm / 0.3 inch
- Number of Pins: 24 Flat Pins
- Construction: Dual Row
Benefits
As the carrier of the IC chip, the IC connector allows for repeated welding and disassembly without damaging the chip or PCB board, saving IC cost and time. Installation involves soldering the chip to the connector first, then soldering the connector to the PCB. Replacement is simplified by removing the connector from the PCB, leaving the chip and connector intact.
Advantages
- Strong vibration and heat resistance.
- Withstands repeated welding and disassembly.
- Convenient and easy installation.
Important Note
Ensure the spacing and line spacing of the connector holes match the spacing and line spacing of the chip pins for proper installation.
Details
Compare sellers (1)
Every offer is covered by UKyard buyer protection and 30-day returns.
Condition Brand new
Free UK delivery · 3–5 days
Get it by Sun 25 Oct – Wed 28 Oct
