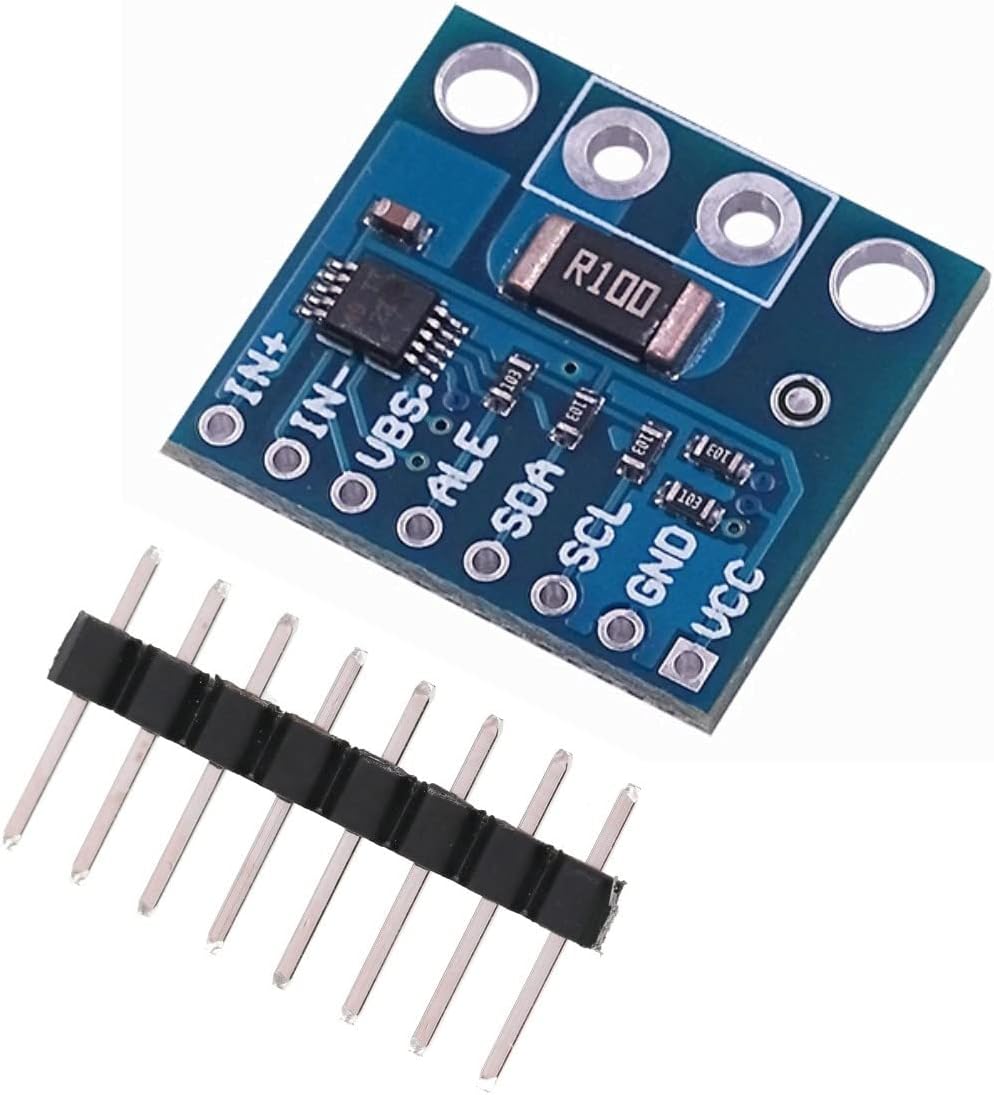

JZK INA226 Bidirectional I2C Current Voltage Power Monitor Module 36V IIC Sensor

JZK INA226 Current and Power Monitor Module

This JZK INA226 module is a versatile current shunt and power monitor featuring an I2C interface. It accurately measures bus voltage, shunt voltage, current, and power, making it ideal for a wide range of applications.

Key Features

• Senses Bus Voltages From 0 V to 36 V
• Sensing Options High-Side or Low-Side
• Monitors Current, Voltage, and Power
• High Accuracy 0.1% Max Gain Error, 10 μV Max Offset
• Configurable Averaging Options available
• Programmable Addresses 16 I2C addresses
• Power Supply Operates from 2.7-V to 5.5-V
• Compact Design 10-Pin, DGS (VSSOP) Package

Specifications

• Sensing Range: 0 V to 36 V Bus Voltage
• Interface: I2C / IIC
• Power Supply: 2.7 V to 5.5 V
• Supply Current: Typically 330 μA
• Gain Error: 0.1% (Max)
• Offset Voltage: 10 μV (Max)
• Package: 10-Pin, DGS (VSSOP)

Pin Description

• VBUS: Bus voltage input
• SDA/SCL: IIC bus data and clock signal lines
• ALERT: Multi-function alarm output
• A0/A1: IIC address line
• IN+/IN-: Non-inverting analog input, inverting analog input

Package Contents

• 1x INA226 Module
