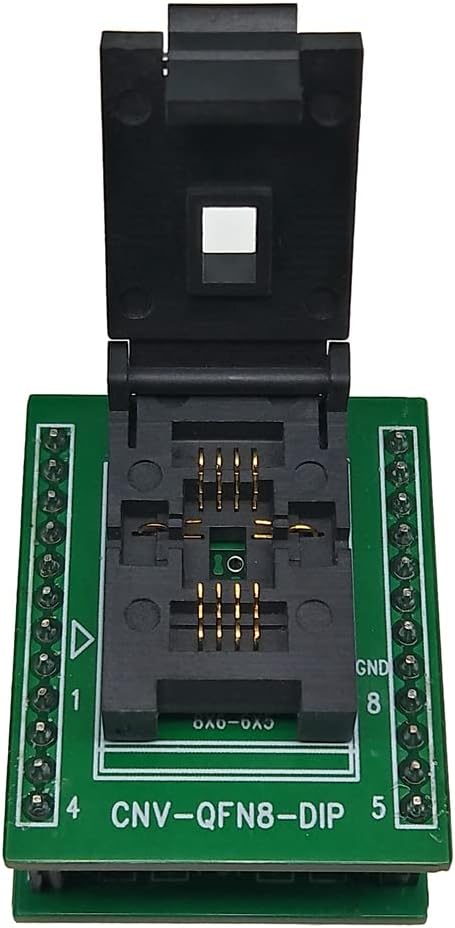

Hopbucan QFN8 DFN8 WSON8 Programming Socket 1.27mm IC 6x8mm ZIF Test Adapter

Hopbucan QFN8 DFN8 WSON8 Programming Socket

This Hopbucan programming socket is designed for testing and programming QFN8, DFN8, and WSON8 integrated circuits. It features a 1.27mm pin pitch and accommodates IC body sizes of 6x8mm, utilizing a ZIF (Zero Insertion Force) clamshell adapter design for easy insertion and removal of components.

Key Features

• Brand: Hopbucan
• Socket Type: QFN8, DFN8, WSON8 Programming Socket
• Pin Pitch: 1.27mm
• IC Body Size: 6x8 mm
• Design: Clamshell ZIF Test Socket
• Body Material: PEI
• Contact Material: Copper Alloy
• Plating: Gold over
• Operation Force: 2.0KG min
• Max Resistance: 50mΩ
• Dielectric Strength: 700V AC for 1 minute
• Insulation Resistance: 1,000MΩ at 500V DC
• Max Current Capacity: 1A
• Temperature Rating: -55°C to +175°C
• Life Span: 15,000 Mechanical Cycles
• Construction: PC+Metal+Plastic

Package Contents

• 1 x QFN8 Programming Socket

Please note that only the programming socket is included in the package. Other accessories or components are not part of this offering. Due to lighting and display variations, the color of the item in the image may differ slightly from the actual product. Please allow for a measurement error of +/- 1-3cm.
