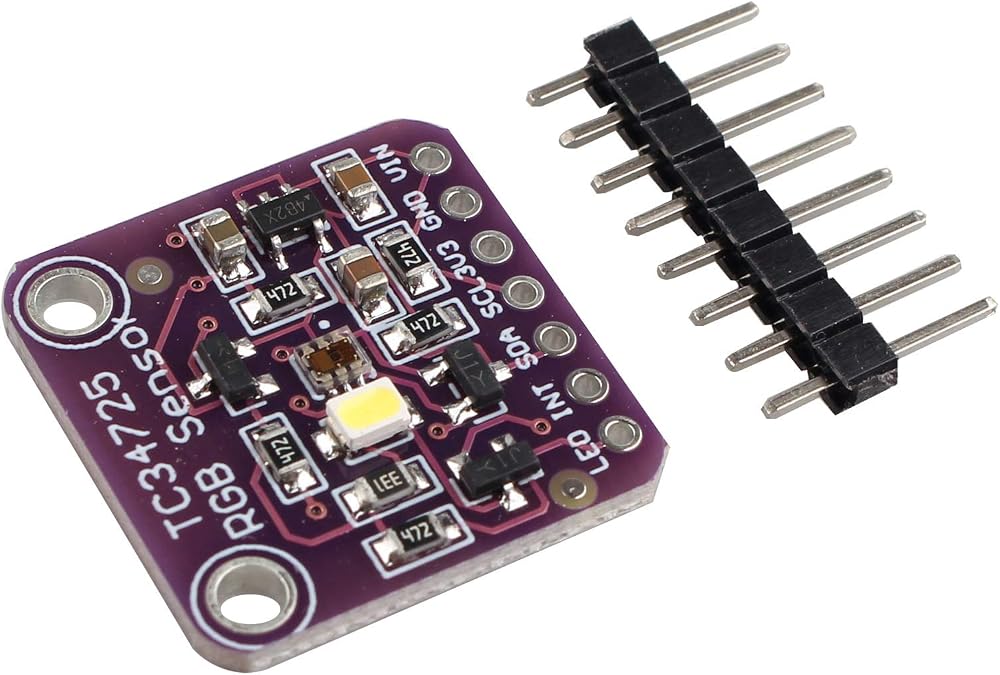

HALJIA TCS34725 RGB Color Sensor Light Recognition Module for Arduino

HALJIA TCS34725 RGB Color Sensor Module

This HALJIA TCS34725 module is a high-sensitivity RGB color sensor with an integrated IR blocking filter, designed for accurate color recognition and light measurement. It is compatible with Arduino and other development boards, making it ideal for a wide range of electronics projects.

Key Features

• Red, Green, Blue (RGB), and White Light Sensing with an integrated IR blocking filter for accurate color measurement.
• Programmable Analog Gain and Integration Time for optimizing sensor performance.
• 3,800,000:1 Dynamic Range allows for measurement under varying light conditions.
• Very High Sensitivity, suitable for operation behind dark glass.
• Maskable Interrupt with programmable upper and lower thresholds and persistence filter.
• Power Management features include a 2.5-uA sleep state and a 65-uA wait state.
• I2C Fast Mode Compatible Interface with data rates up to 400 kbit/s.
• Input voltage levels compatible with VDD or 1.8 V bus.
• Register set and pin compatible with the TCS3x71 series.

Product Specifications

• Board Size: 20.8 x 20.5 mm
• Weight: 2g

Applications

• RGB LED Backlight Control
• Light Color Temperature Measurement
• Ambient Light Sensing for Display Backlight Control
• Fluid and Gas Analysis
• Product Color Verification and Sorting

Packing List

• 1 x TCS34725 Color Sensor Module
• 1 x Pin Header
