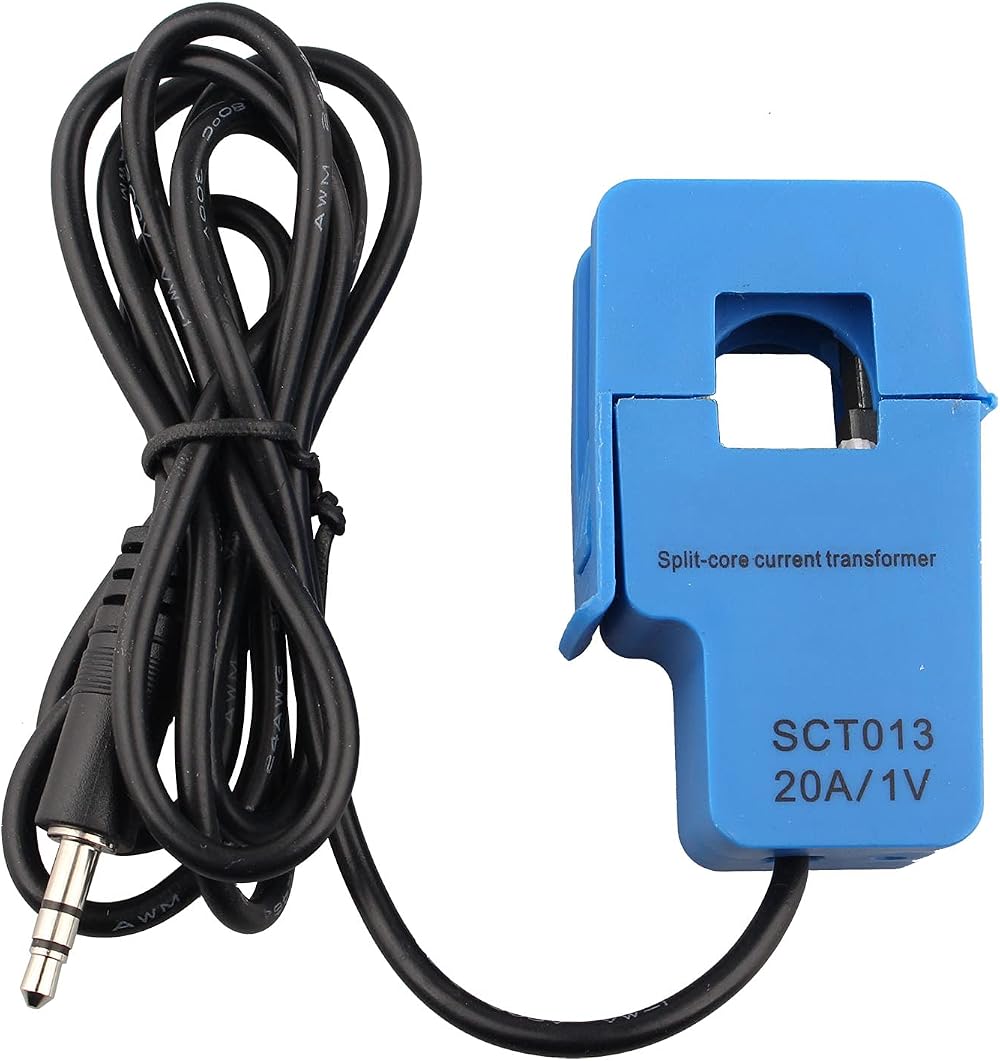

HALJIA SCT-013-000 AC Current Sensor Split Core Transformer 20A 1V Arduino DIY

Product Overview

The HALJIA SCT-013-000 is a non-invasive split core AC current sensor transformer. Designed for measuring alternating current, it is ideal for DIY projects and applications requiring current measurement, monitoring, and protection. This sensor is manufactured with premium materials for durability and a long service life.

Key Features

• Non-Invasive Measurement: Safely measure AC current without interrupting the circuit.
• Split Core Design: Allows for easy installation around existing wires.
• Versatile Applications: Suitable for AC motors, lighting equipment, air compressors, and more.
• Voltage Output: Features a built-in sampling resistor for voltage output.
• Durable Construction: Made from premium ferrite material for long-lasting use.
• Easy to Use: Simple installation and standard 3.5mm plug output.

Specifications

• Product Name: Non-invasive AC Current Sensor
• Model: SCT-013-000
• Rated Input Current: 20A
• Output Voltage: 1V
• Material: Ferrite
• Frequency: 50Hz - 150KHz
• Non-linearity: 3% (10% - 120% rated input current)
• Leading Wire: Approximately 1 meter
• Output Plug: 3.5mm, 3-core plug
• Operating Temperature: -25°C to +70°C
• Mechanical Strength: Opening and closing times no less than 1000 times (at 20°C)
• Safety Indicators: Dielectric strength 6000V AC/1min
• Fire Resistance Property: UL94-VO compliant
• Open Size: Approximately 13.5 mm x 13.5 mm
• Shell Size: Approximately 57mm × 32 mm
• Weight: 60.3g

Package Includes

• 1x HALJIA SCT-013-000 20A Split Core Current Transformer
