Fasizi VL6180X Time of Flight Distance Sensor Module Arduino I2C Gesture

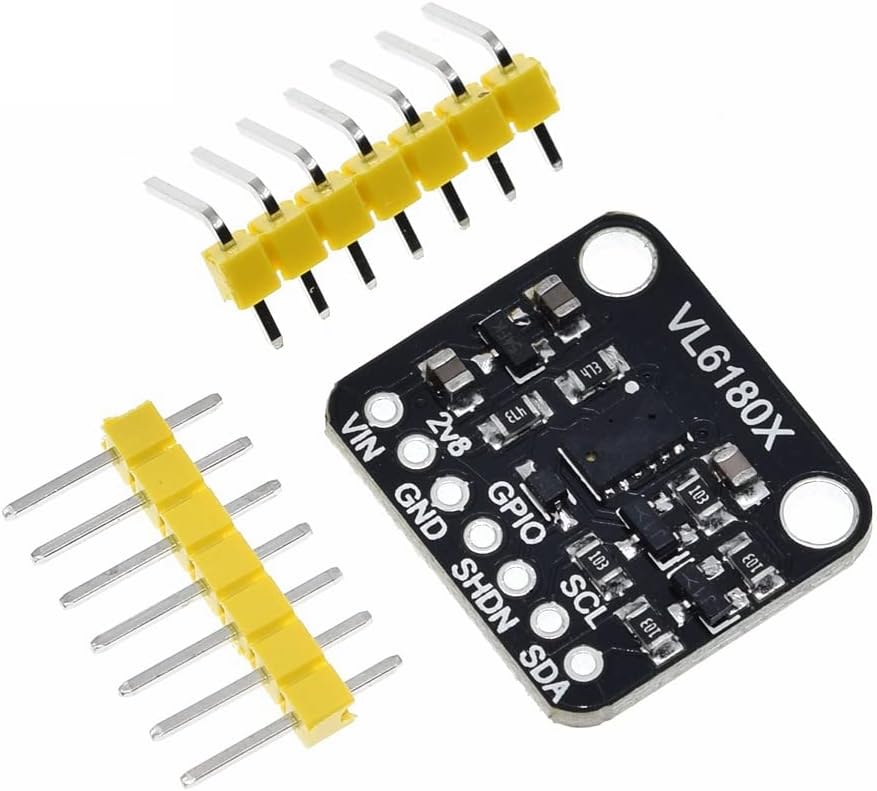

VL6180X Time of Flight Distance Sensor Module

The Fasizi VL6180X is a highly accurate Time of Flight distance sensor module designed for use with Arduino and other microcontrollers. This module utilizes a miniature laser source and sensor to measure the time it takes for light to travel to a target and reflect back, providing precise distance measurements.

Unlike ultrasonic sensors, the VL6180X offers a narrow sensing cone, making it ideal for detecting the distance of surfaces directly in front of it. It also overcomes the limitations of traditional infrared sensors, such as linearity issues and ambiguity in readings. This sensor is perfect for robotics, interactive projects, and applications requiring gesture recognition.

The module is conveniently mounted on a breakout board with an integrated voltage regulator and level shifting, allowing it to be powered and controlled by microcontrollers operating at either 3.3V or 5V.

Key Features

• Sensor Type: Time of Flight (ToF) Distance Sensor
• Model: VL6180X
• Communication Interface: I2C
• Operating Voltage: 3.3V or 5V
• Precise Distance Measurement: Detects objects directly in front with a narrow sensing cone.
• Gesture Recognition: Suitable for interactive projects.
• Integrated Breakout Board: Includes voltage regulator and level shifting for easy integration.
• Simple I2C Commands: Easy to implement in your projects.

Wiring

• GPIO0: Digital output (often used for interrupts)
• SDA: I2C Data line
• SCL: I2C Clock line
• VCC: Connect to 3.3V or 5V power supply
• GND: Connect to Ground

Package Includes

• 1 x VL6180X Time of Flight Distance Sensor Module
