DollaTek 5PCS APDS-9930 Gesture Sensor Proximity ALS Arduino Touchless Control

DollaTek APDS-9930 Gesture Detection Attitude Sensor

This 5-piece set of DollaTek CJMCU-9930 APDS-9930 sensors offers advanced capabilities for gesture detection, proximity sensing, and ambient light sensing, making them ideal for Arduino and other microcontroller projects.

Key Features

• Optical Module Integration: Combines Ambient Light Sensing (ALS), infrared LEDs, and proximity detectors.
• Ambient Light Sensing (ALS): Features approximate human visual response, programmable interrupt capability with upper and lower thresholds, up to 16-bit resolution, and high sensitivity operation behind dark glass (0.01lux low lumen performance).
• Proximity Detection: Fully calibrated for up to 100 mm detection, includes an integrated infrared LED and synchronous LED driver, eliminating the need for factory calibration of the proximity sensor.
• Programmable Wait Timer: Offers adjustable wait times from 2.7 ms to over 8 seconds, with typical wait state power consumption of 90μA.
• I2C Interface: Compatible with up to 400kHz (I2C fast mode) and includes a dedicated interrupt pin.
• Low Power Consumption: Sleep mode power consumption is a typical 2.2μA.
• Compact Size: Small package dimensions of 3.94 (L) x 2.36 (W) x 1.35 (H) mm.

Applications

• Adjustable mobile phone backlight control
• Notebook and display security
• Automatic hands-free mode activation
• Automatic menu pop-up functions
• Digital camera eye sensor functionality

Package Included

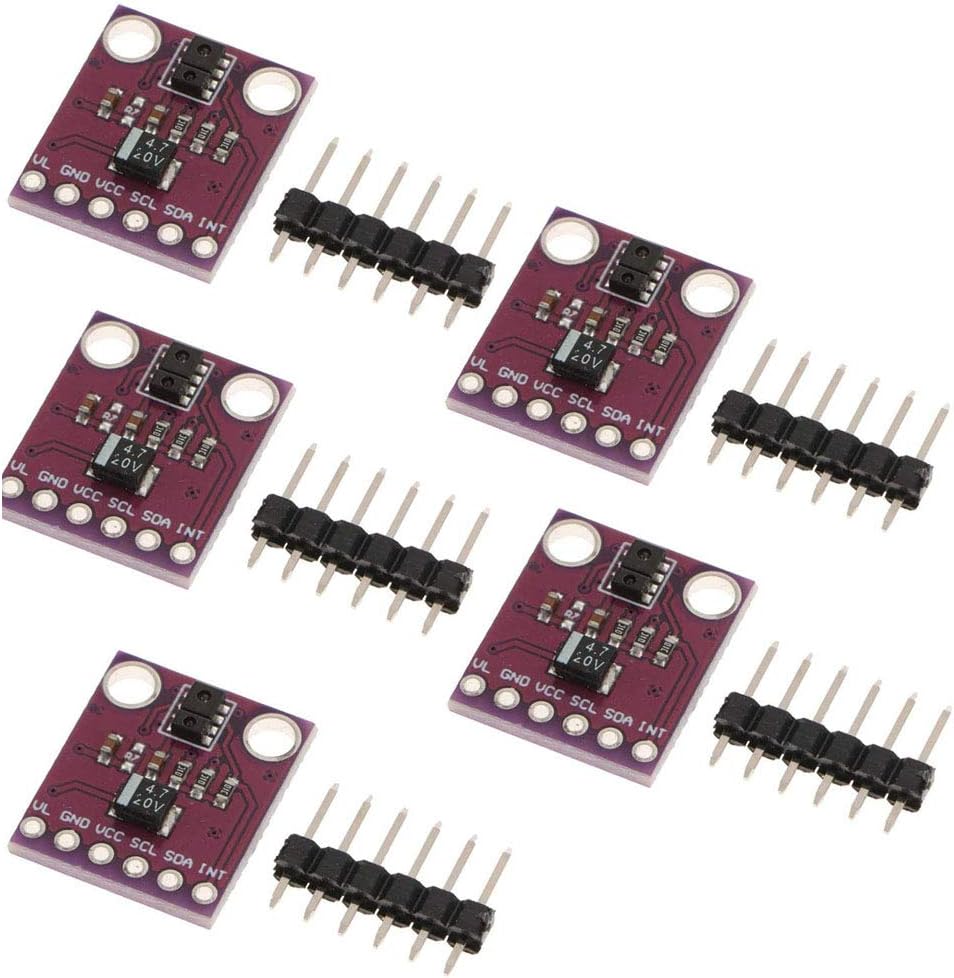

5 x DollaTek CJMCU-9930 APDS-9930 Gesture Detection Attitude Sensor
