AOICRIE MAX30102 Heart Rate Blood Oxygen Sensor Module Arduino STM32 5PCS

AOICRIE MAX30102 Heart-Rate and Blood Oxygen Sensor Module

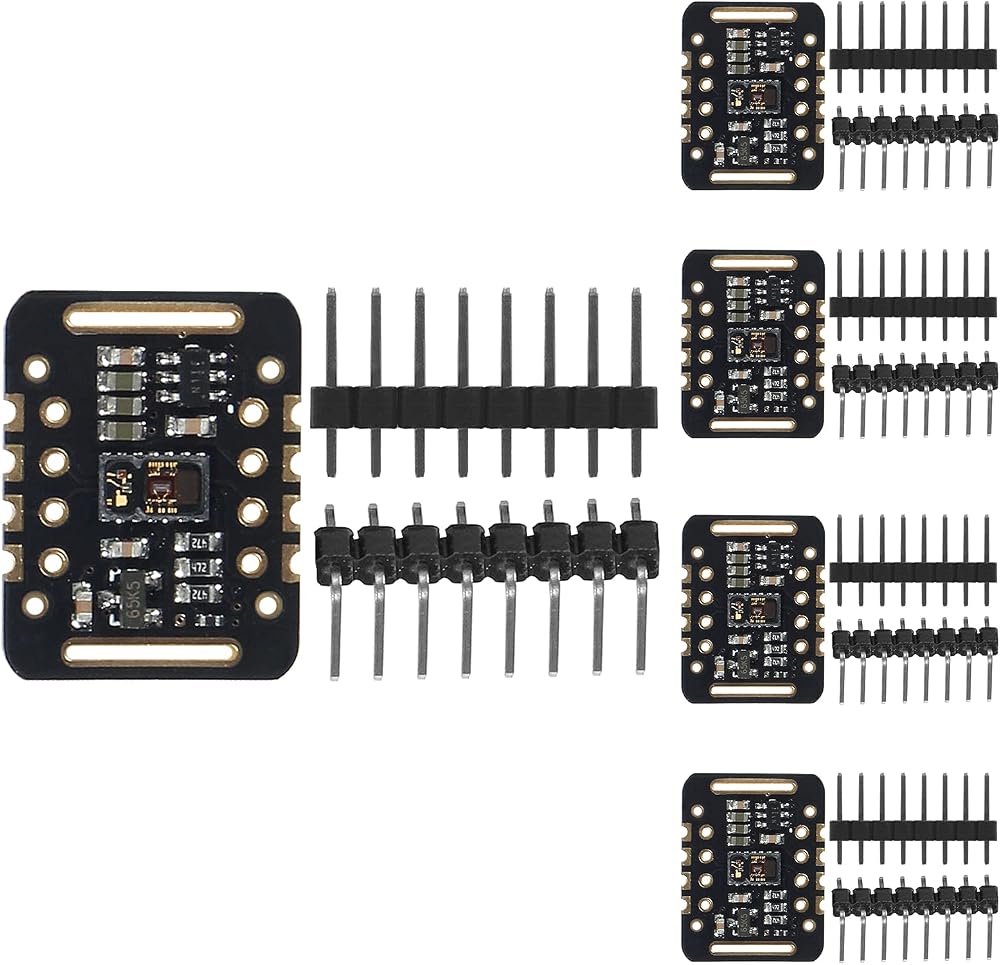

This listing is for a pack of 5 high-sensitivity heart-rate and blood oxygen sensor modules from AOICRIE, featuring the MAX30102 chip. These modules are compatible with Arduino and STM32 microcontrollers, making them ideal for various electronic projects and prototypes.

Key Features

• Brand: AOICRIE
• Sensor Type: MAX30102 Heart-Rate and Blood Oxygen Sensor (PPG Optical Reflection)
• Compatibility: Arduino, STM32
• Quantity: 5 pieces
• LED Peak Wavelength: 660nm / 880nm
• Output Interface: I2C Interface

Specifications

• LED Power Supply Voltage: 3.3V to 5V
• Detection Signal Type: Optical Reflection Signal (PPG)
• Communication Interface Voltage: 1.8V to 5V
• Interface Pins:
• VIN: Main power input (1.8V-2.5V)
• 3-bit pad: I2C bus pull-up level (selectable 1.8V or 3.3V)
• SCL: I2C bus clock
• SDA: I2C bus data
• INT: MAX chip interrupt pin
• RD: MAX30102 chip RD LED grounding terminal (generally not connected)
• IRD: MAX30102 chip IR LED grounding terminal (generally not connected)
• GND: Grounding wire

Enhance your projects with accurate heart-rate and blood oxygen monitoring capabilities using these versatile sensor modules.
