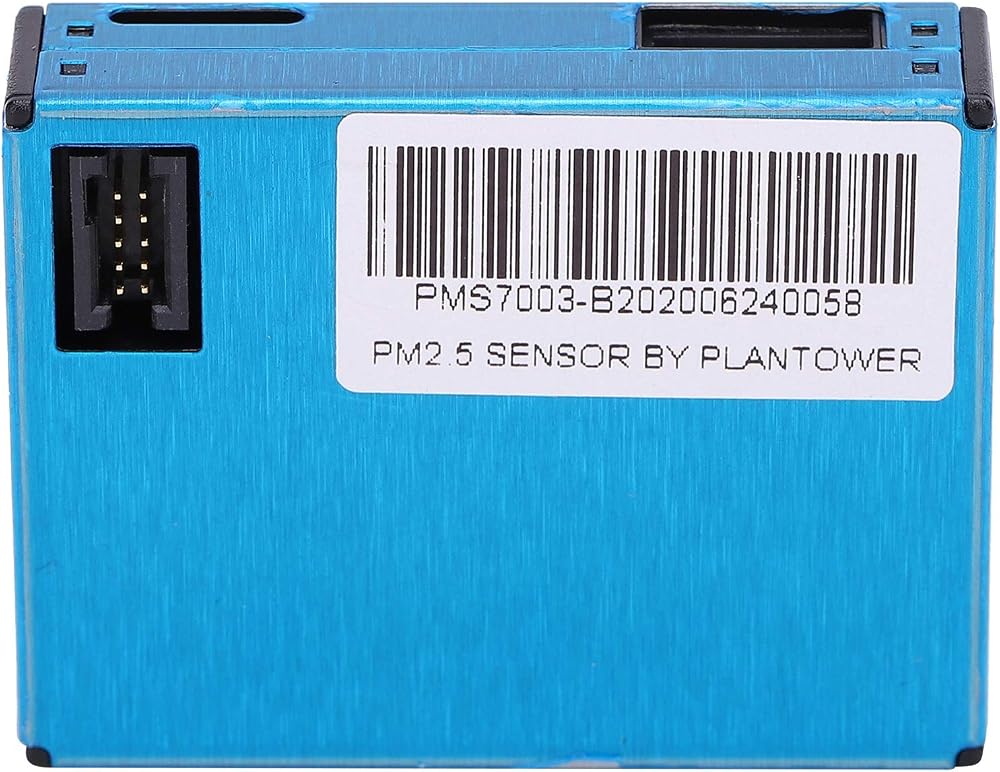

LiebeWH PM2.5 Sensor Module PMS7003 Air Quality Detector PM1.0 PM10 Built-in Fan

LiebeWH PM2.5 Sensor Module with PMS7003

This advanced PM2.5 sensor module utilizes the principle of light scattering to accurately detect airborne particles. It employs MIE theories algorithms to determine equivalent particle size and count particles per unit volume, offering high accuracy for air quality monitoring.

Key Features

• Principle: Light scattering detection.
• Accuracy: 0 error alarm rate, real-time response, continuous acquisition.
• Particle Size Resolution: Minimum resolution of 0.3um.
• Anti-Interference: Six-sided omnidirectional shielding for strong anti-interference performance.
• Design: Ultra-thin design (12 mm) suitable for portable devices.
• Airflow: Optional direction of air inlet and outlet.

Specifications

• Brand: LiebeWH
• Model: PMS7003
• Material: Aluminum alloy
• Purpose: PM2.5 detection (PM1.0, PM2.5, PM10)
• Input Voltage: 5V
• Working Current: ≤100mA
• Counting Efficiency: 50% at 0.3um, 98% at ≥0.5 um
• Response Time: ≤10 s

Package Includes

• 1 x PM2.5 Sensor Module
• 1 x Terminal
