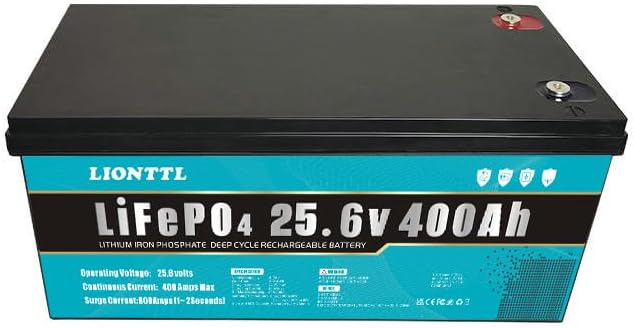

Leisure Battery LiFePO4 24V 400Ah 10.24kWh 29.2V Max Charge 400A

Key Features

• Type: Leisure battery, Lithium Iron Phosphate (LiFePO4)
• Voltage and Capacity: 25.6V nominal, 400Ah, 10.24kWh
• Configuration: 2 M8 terminals
• Charge/Discharge: Maximum charge voltage 29.2V; discharge cutoff 20.0V
• Current Ratings: Maximum charge current 400A; continuous discharge 400A; peak discharge 800A (2C)
• Operating Temperature: Storage/charging 0–59°C; discharge -20–60°C
• Dimensions (WxHxL): 53 x 37 x 24 cm; height with terminals 25 cm

Specifications

• Rated Voltage: 25.6V
• Rated Capacity: 400Ah
• Watt-Hour Capacity: 10240Wh (10.24kWh)
• Maximum Continuous Discharge: 400A
• Peak Discharge: 800A
• Storage Temperature Range: 0–59°C
• Discharge Temperature Range: -20–60°C

Notes

• This battery does not include a charger. Use a charger designed for LiFePO4 chemistry with cut-off voltage not exceeding 29.2V.
• To extend battery life, the unit will not fully discharge and will retain some charge.
• If ambient temperature is too low, charge in a suitable location or use insulation to improve charging efficiency.
