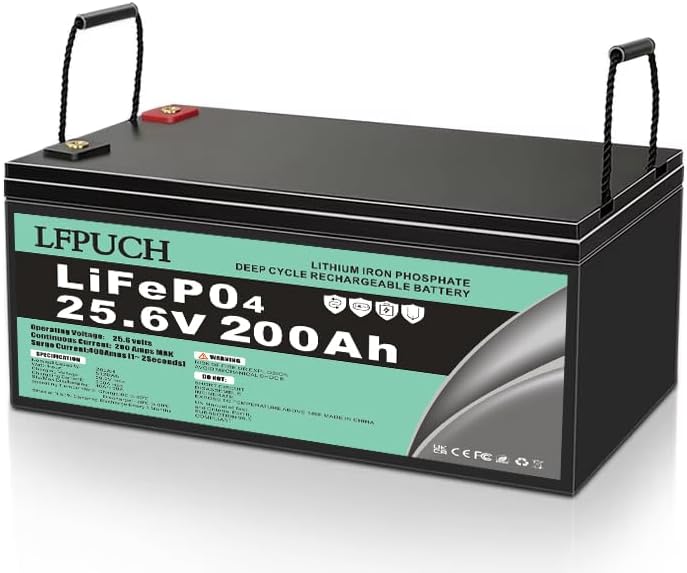

LiFePO4 Leisure Battery 24V 200Ah 5120Wh 29.2V Max 0~45C

Key Features

• Type: LiFePO4 leisure battery
• Voltage: 24V nominal (25.6V)
• Capacity: 200Ah, Energy: 5120Wh
• Maximum charging voltage: 29.2V
• Discharge characteristics: Standard 0.5C to 100A, Peak 2C to 400A
• Terminals: 2 M8 terminals included
• Dimensions (W x H x L): 522 x 240 x 228 mm
• Operating temperature: Charging 0–45°C; Discharge -20–60°C

Specifications

• Rated voltage: 25.6V
• Rated capacity: 200Ah
• Watt hour capacity: 5120Wh
• Preferred minimum charge current: 40A (0.2C)
• Maximum charge current: 200A
• Standard continuous discharge: 100A (0.5C)
• Discharge cut-off: 20.0V
• Temperature storage/charge: 0–45°C
• Discharge range: -20–60°C

Usage Instructions

• The battery is provided without a charger. Use a suitable LiFePO4 charger with maximum voltage not exceeding 29.3V to avoid damage.
• For longevity, avoid full discharges; some charge is retained when not in use.
• The battery does not support a protocol/interface for certain inverters—confirm compatibility with your system.
• If ambient temperature is too low, move to a suitable environment or apply heat measures to improve charging efficiency.

This specification-focused description provides the essential technical details for integration with photovoltaic systems, energy storage setups, and camping applications.
