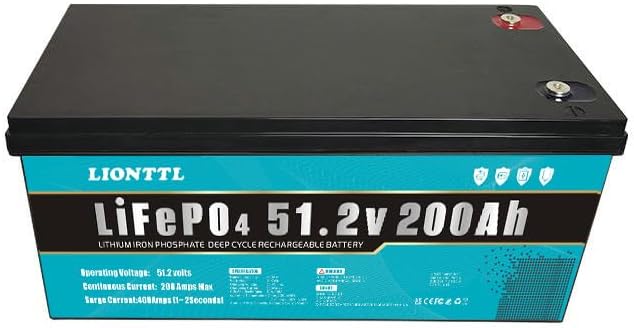

LiFePO4 Leisure Battery 48V 200Ah 10240Wh 51.2V PV Storage 2 x M8

Key Features

• Type: LiFePO4 leisure battery
• Voltage: 51.2V (nominal 51.2V)
• Capacity: 200Ah (10240Wh)
• Maximum Charge Voltage: 58.4V
• Discharge Current: Standard 100A, Peak 400A
• Dimensions: 530 x 370 x 240 mm (W x H x L); height with terminals 250 mm
• Terminals: Includes 2 M8 terminals
• Operating Temperature: 0–45°C charging, -20–60°C discharge
• Energy Storage Use: Suitable for photovoltaic systems, energy storage, camping and more

Specifications

• Rated Voltage: 51.2V
• Rated Capacity: 200Ah
• Watt-Hour Capacity: 10240Wh
• Storage/Charging Temp: 0–45°C
• Discharge Cutoff Voltage: 40.0V
• Recommended Min Charge Current: 20A (0.2C)
• Max Charge Current: 200A
• Continuous Discharge Current: 100A (0.5C)
• Peak Discharge Current: 400A (2C)

Usage Instructions

• Charger not included. Use a lithium iron phosphate charger with cut-off voltage not exceeding 58.4V.
• Battery may retain partial charge to extend life; avoid full discharge.
• No protocol interface. If your inverter requires a protocol, this battery will not provide it.
• If ambient temperature is low, charge in a warmer location to improve efficiency.
