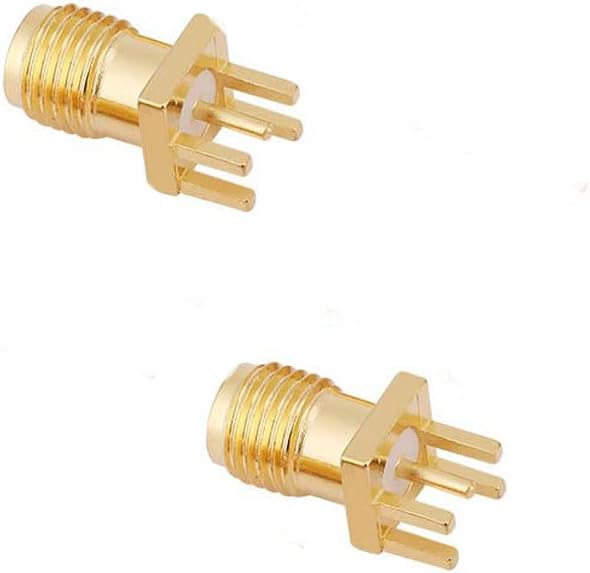

zalati 10 Pcs SMA Female Jack Connector PCB Mount Adapter 50 Ohm RF Connector

zalati SMA Female Jack Connector

This pack contains 10 zalati SMA Female Jack Connectors, designed for PCB mounting. These 50 Ohm RF connectors feature a brass construction with gold plating for reliable performance.

Key Features

• Brand: zalati
• Connector Type: SMA Female Jack
• Quantity: 10 pieces
• Impedance: 50 Ohm
• Material: Brass with Gold Plating
• Mounting: PCB Mount Adapter
• Configuration: Outer thread, drift angle

Specifications

• Material: Brass
• Surface Finishing: Gold plating
• Type: SMA Female, outer thread, drift angle
• Pitch: 1.6mm
• Temperature Range: -65 to +165℃ (PE Cable -40 to +85°C)
• Vibration: MIL-STD-202, Method 213
• Characteristic Impedance: 50Ω
• Frequency: 0 to 6GHz
• Working Voltage: 335V max (effective value)
• Resistance to Pressure: 1000V rms (sea level minimum value)
• Durability: ≥500 cycles
• Weight: Approximately 15g per unit

The package includes 10 zalati SMA Female Jack Connectors.
