CNLINKO LP-12 5 Pin IP68 Waterproof Connector M12 Male Female Plug 5A 125V

CNLINKO LP-12 Industrial Waterproof Connector Set

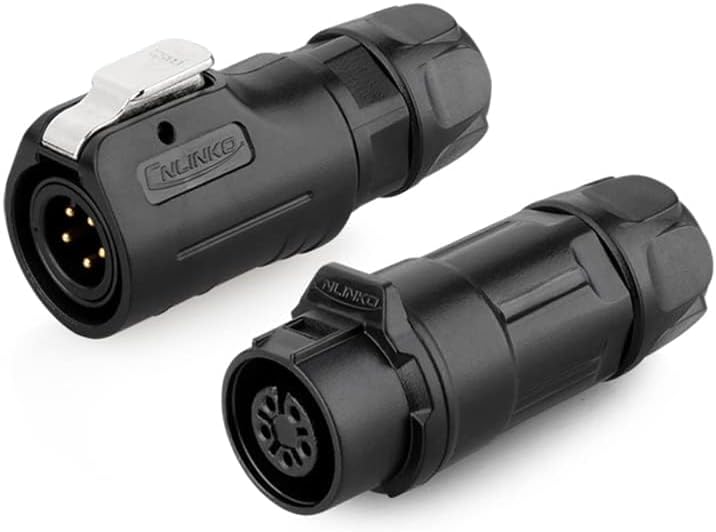

This listing includes a CNLINKO LP-12 series 5-pin male plug and female plug set, designed for reliable and secure connections in demanding industrial environments. With an IP68 rating when mated, these connectors are built to withstand harsh conditions.

Key Features

• Product Model: LP-12-C05PE-02-001 (Male) + LP-12-J05PP-02-001 (Female)
• Connecting Mode: Quick Plug/Unplug
• Protection Level: IP68 (Mated)
• Waterproof Cover: Included on the socket
• Cable Compatibility: 0.34-0.5 mm² / 22-20 AWG, cable diameter Φ4.5-Φ5.5 mm
• Contact Diameter: Φ1.0×5
• Service Life: ≥500 mating cycles
• Temperature Range: -25 °C to 80 °C
• Mounting Type: Soldering

Electrical Specifications

• Rated Current: 5 A
• Operating Voltage: 125 V AC
• Test Voltage: 1500 V (for 1 minute)
• Contact Resistance: <5.0 mΩ
• Insulation Resistance: >500 MΩ
• Important Note: Avoid charging while plugging in.

Materials

• Housing & Insulating Parts: High-performance engineering plastic
• Carbide: Zinc alloy (hard chrome bead)
• Contact: Copper alloy (gold plated)
• Seal: Silica gel

Applications

Ideal for a wide range of applications including medical devices, servers, communication devices, solar energy systems, smart grids, electrical appliances, stage equipment, marine equipment, automotive equipment, and heavy machinery.
