CNLINKO LP-16 M16 Waterproof Circular Connector 2 Pin Quick Plug Aviation IP68

CNLINKO LP-16 Industrial Waterproof Connector

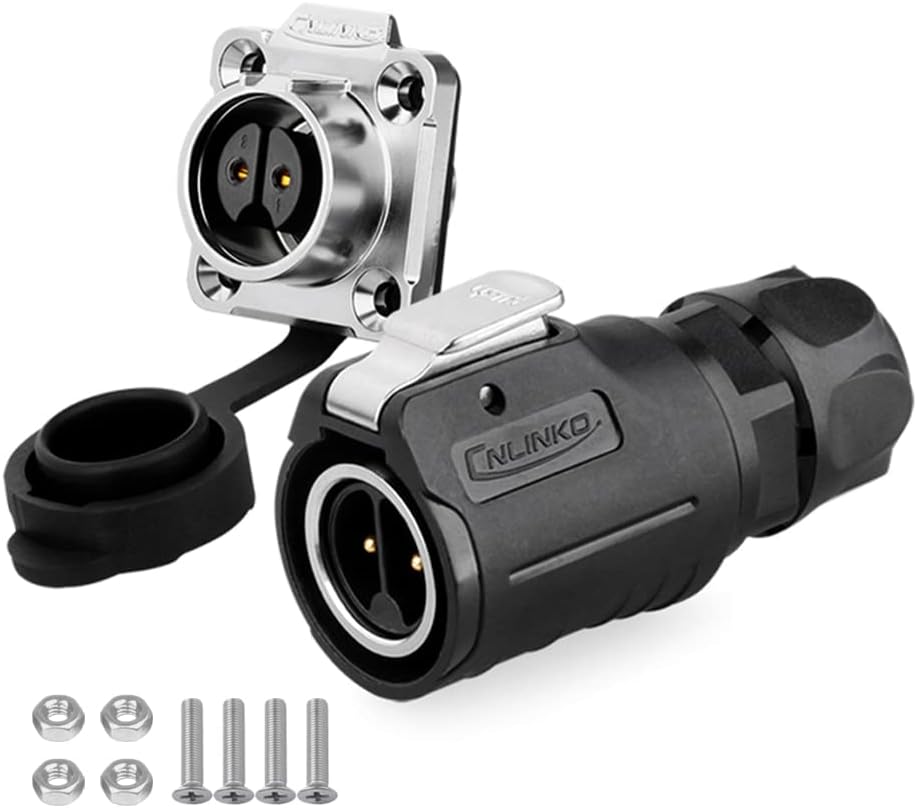

This CNLINKO LP-16 series connector offers a robust and reliable solution for industrial applications requiring a waterproof and quick-plugging connection. This specific listing is for a 2-pin Male Plug and Female Socket set.

Key Features

• Product Model: LP-16-C02PE-01-001 + LP-16-J02SX-03-401
• Connector Type: Male Plug + Female Socket
• Connection Mode: Quick Plug/Unplug
• Waterproof Rating: IP68 (when mated)
• Cable Support: 1.0-1.5 mm² / 18-16 AWG
• Cable Diameter Range: Ф7.0~Ф9.0 mm
• Contact Configuration: Φ1.5 × 2 Pins
• Durability: ≥500 Mating/Unmating Cycles
• Operating Temperature: -25 ℃ to 85 ℃
• Assembly Method: Welding

Electrical Specifications

• Rated Current: 10 A
• Operating Voltage: 400 V (AC.V.rms)
• Withstanding Voltage: 2000 V (AC.V) for 1 Minute
• Contact Resistance: < 3.0 mΩ
• Insulation Resistance: >500 MΩ
• Note: Prohibited to be inserted when charged.

Materials

• Shell & Insulated Parts: Metal & High Performance Engineer Plastic
• Hard Metal: Zinc Alloy (Pearl Hard Chromium)
• Contact: Copper Alloy (Gold Plated)
• Sealing: Silica Gel

Applications

Ideal for a wide range of demanding environments and equipment, including:

• Medical Equipment
• Server Equipment
• Electric Power Equipment
• Solar Energy Equipment
• Smart Grids
• Communications Equipment
• Vehicle Equipment
• Ship Equipment
• Stage Equipment
• Heavy Machinery
