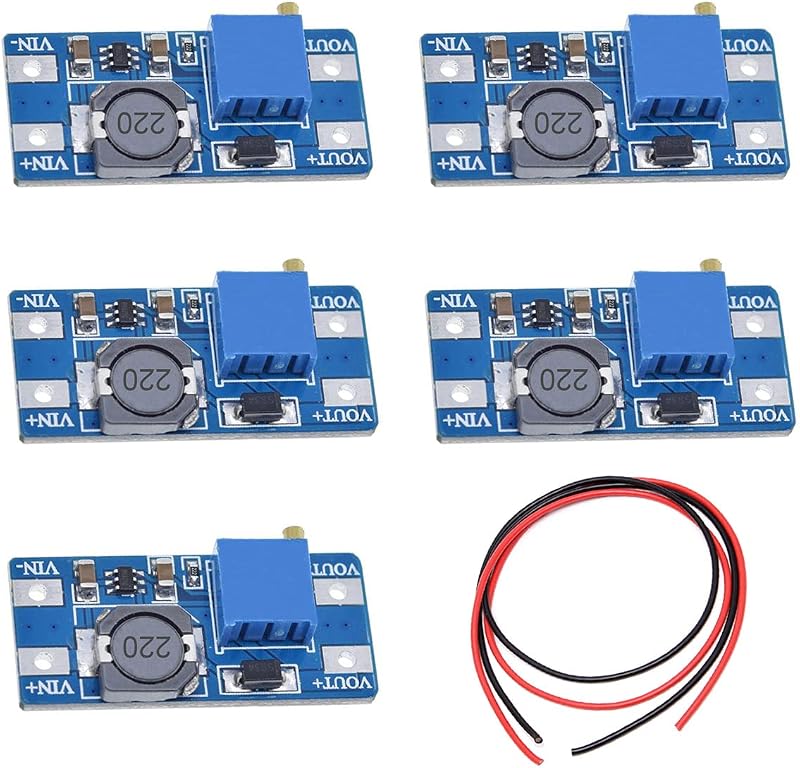

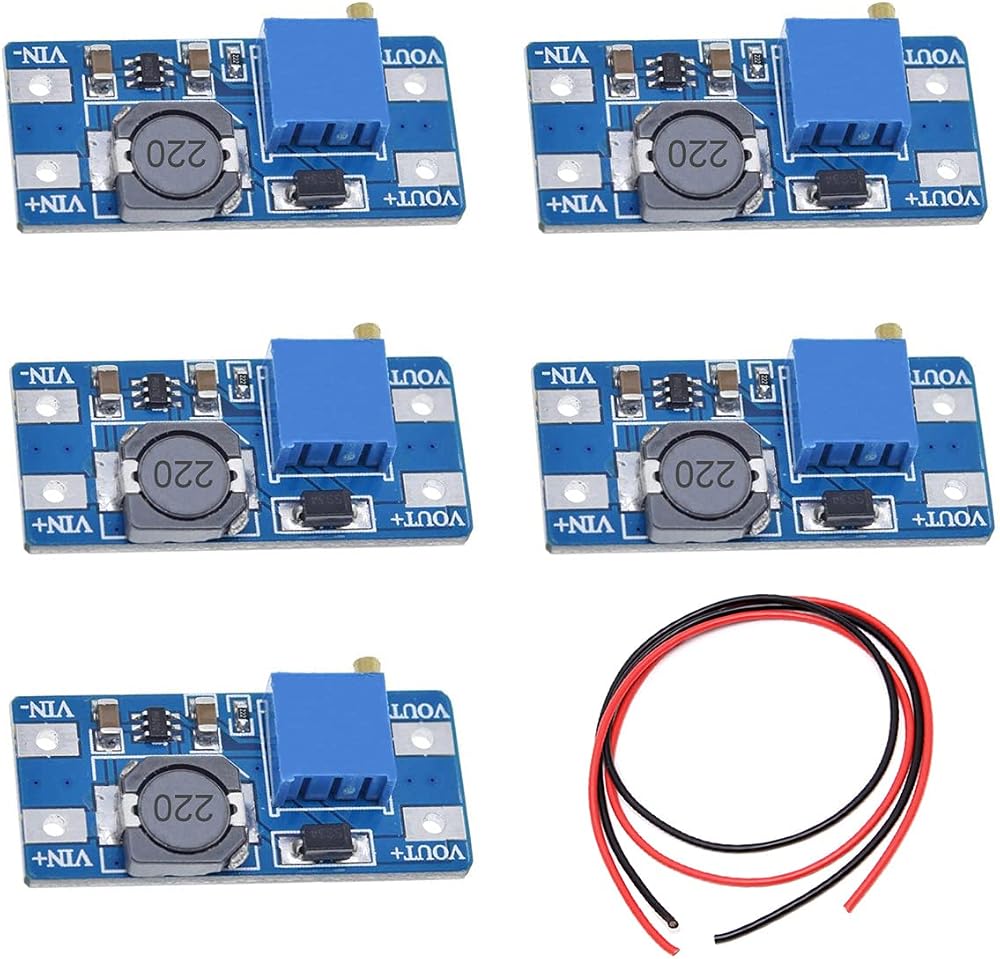

Youmile 5x DC-DC Boost Converter 2V-24V to 5V-28V 2A Adjustable Voltage

Product Overview

This listing includes 5 Youmile DC-DC Step Up Boost Power Converter modules. These adjustable voltage regulators are designed to step up input voltages from 2V to 24V to an output voltage range of 5V to 28V, with a maximum output current of 2A. A 24AWG wire is also included for your convenience.

Key Features

• Adjustable Output: Easily set your desired output voltage between 5V and 28V.
• Wide Input Range: Accepts input voltages from 2V to 24V.
• High Efficiency: Achieves up to 93% conversion efficiency.
• Compact Size: Small board dimensions (36 x 17mm) for easy integration.
• Included Wire: Comes with approximately 19.6 inches of 24AWG wire.

Specifications

• Brand: Youmile
• Input Voltage: DC 2V-24V
• Output Voltage: DC 5V-28V
• Maximum Output Current: 2A (1A recommended for continuous use)
• Max Conversion Efficiency: 93%
• Board Size: 36 x 17mm / 1.46 x 0.7 inches (Length x Width)

Usage Instructions

• Connect the IN+ and IN- terminals of the module to your 2V-24V power source.
• Adjust the potentiometer to set the desired output voltage. Ensure the output voltage is higher than the input voltage.

Important Notes

• Do not exceed the maximum input voltage.
• Do not exceed the maximum output current.
• If the module is not functioning correctly, try rotating the potentiometer counterclockwise for at least 10 turns before testing again.

Package Contents

• 5 x Youmile Boost Converter Modules
• 1 x 19.6" 24AWG Wire
