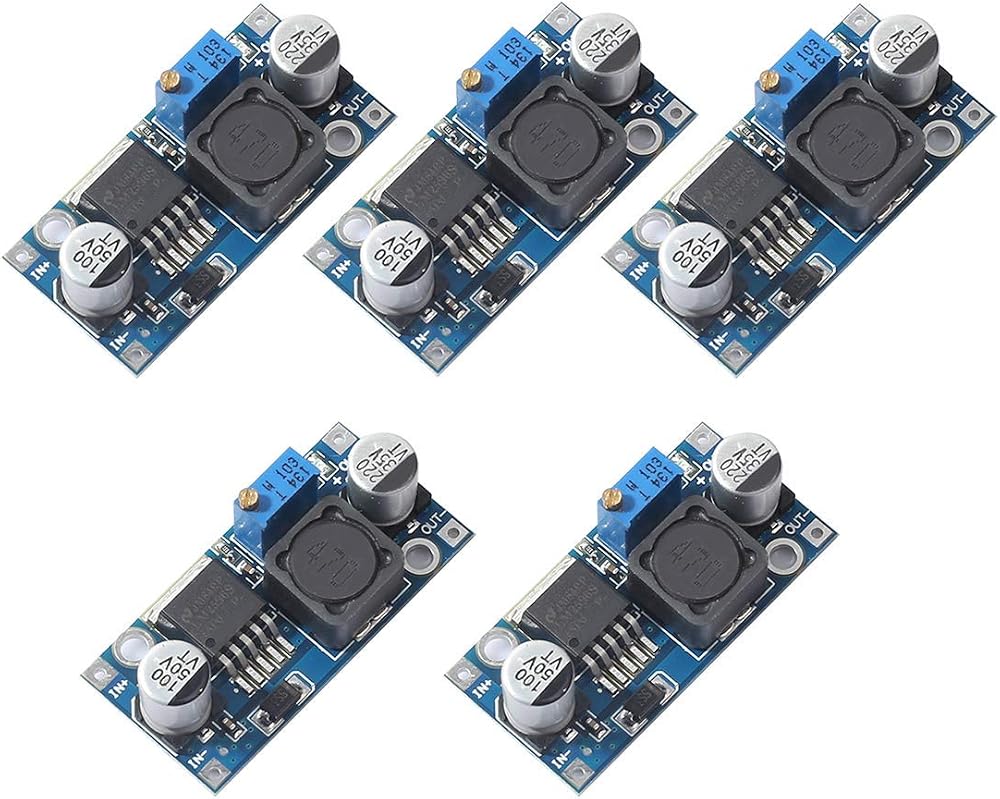

AITRIP 5x LM2596 DC-DC Buck Converter 3-40V to 1.5-35V Step Down Power Module

AITRIP LM2596 DC-DC Buck Converter Power Supply Module

This is a 5-pack of AITRIP LM2596 DC to DC buck converter modules. These are non-isolated step-down modules designed for efficient power conversion.

Key Features

• DC to DC step down module
• Thickened circuit boards for durability
• Advanced solid-state capacitor for stable performance
• Built-in short circuit and over-temperature protection
• 100% tested and sealed in anti-static packaging

Important Notes

• Input voltage must be at least 1.5 V higher than the output voltage; these modules do not boost voltage.
• Do not reverse the input and output connections.
• Keep the output current under 2.5A. Use a heat sink for prolonged operation at higher loads.

Specifications

• Model: LM2596
• Input Voltage: DC 3V - 40V
• Output Voltage: DC 1.5V - 35V (adjustable)
• Output Current: 3A (maximum)
• Conversion Efficiency: 92% (maximum)
• Switching Frequency: 65KHz
• Rectification: Non-synchronous rectification
• Module Property: Non-isolated buck module
• Operating Temperature: -45℃ to +85℃
• Load Regulation: ±0.5%
• Voltage Regulation: ±2.5%

Package Includes

• 5 x LM2596 DC-DC Buck Converter Module
