OWON SPE3103 Programmable DC Power Supply 300W 30V 10A 4 Digit TFT USB SCPI Lab

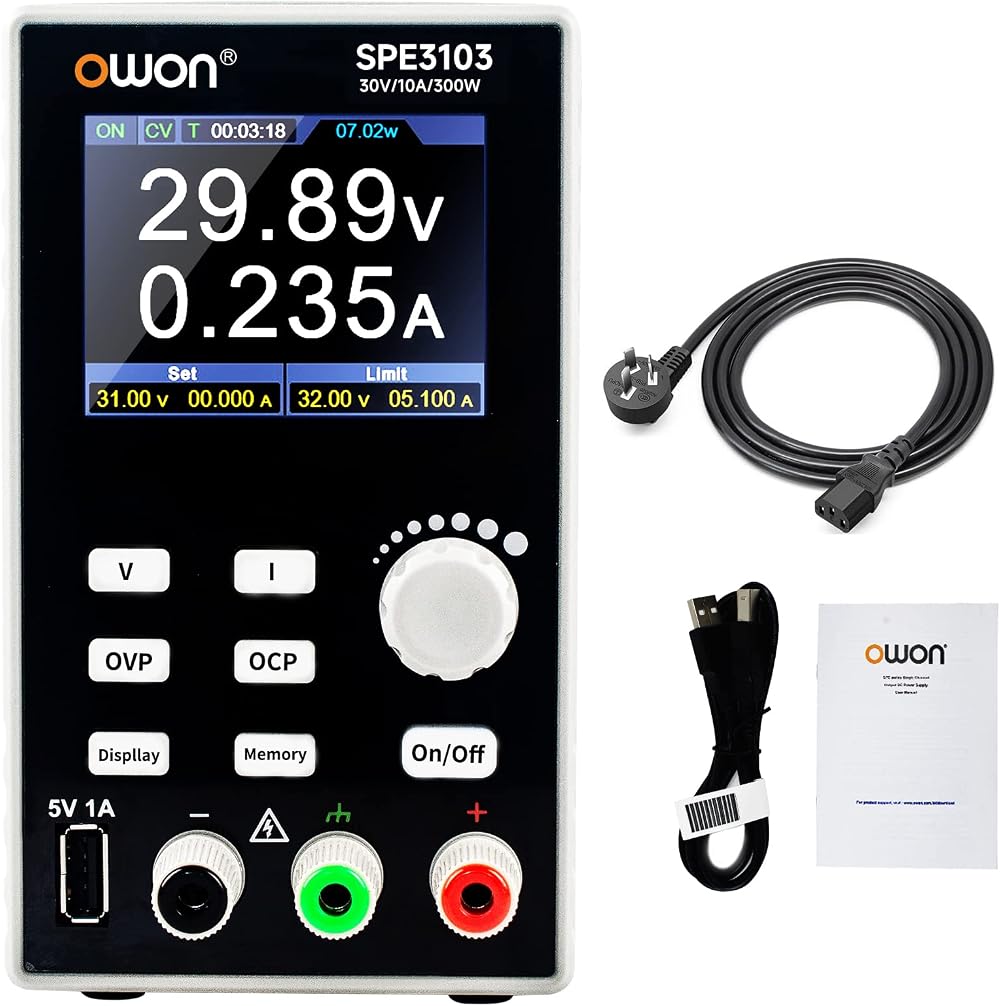

OWON SPE3103 Programmable DC Power Supply

The OWON SPE3103 is a high-precision programmable DC power supply designed for laboratory and demanding applications. It offers robust protection features, versatile connectivity, and user-friendly operation in a compact and portable design.

Key Features

• Multiple Protections: Built-in fan with low noise and ripple. Features Over-voltage, over-current, over-power, over-temperature, and short-circuit protection for enhanced durability and reliable operation.
• 5V/1A USB Port: Includes a rear USB device communication port supporting SCPI. The front 5V/1A USB interface is convenient for charging mobile phones, tablets, and other devices.
• Programmable Functionality: Supports memory for saving up to 4 sets of channel parameters for quick recall. Features list waveform output settings with 10 editable points, allowing customization of voltage, current, duration, and selection for each point.
• Auto Power Calculation: Intelligently calculates and displays output voltage and current as power on the 4-digit LED display. Features automatic decimal point carry. Keyboard lock prevents accidental operation.
• Ultra-thin and Portable Design: Features a stable vertical design, making it compact (3.2*8.9*5.6 inches) and lightweight (3.3 pounds) for easy portability and efficient use of bench space.

Specifications

• Brand: OWON
• Model: SPE3103
• Power: 300W
• Voltage Output: 30V
• Current Output: 10A
• Display: 2.8 inch TFT LCD
• Display Digits: 4 Digit (Voltage, Current, Power)
• USB Port: 5V/1A (Front), SCPI support (Rear)
• Dimensions: 3.2 x 8.9 x 5.6 inches
• Weight: 3.3 pounds
