Youmile 2x USB-C PD to DC Trigger Module 20V 5A Fast Charge Power Type-C Module

Product Overview

This Youmile 2-piece set includes USB-C PD2.0/PD3.0 to DC decoy modules designed for fast charging electronic products. They feature a Type-C female input and support up to 5A output (requires an electronically marked Type-C cable for over 3A). A genuine USB PD power source is required; this module will not work with QC-only chargers.

Key Features

• Supports up to 5A output (requires electronically marked Type-C cable for >3A).
• Requires a real USB PD power source; not compatible with QC-only chargers.
• Performs PD negotiation and passes the selected output voltage.
• Widely applicable for electronic product power supply.

Important Notes

Please be aware that not all USB-C power supplies support all voltages. If the power supply does not support the requested voltage, the module will trigger the next lowest available voltage. For example, if set to 15V and the supply supports only 5V/9V/20V, then 9V will be provided. Compatibility with all charging heads is not guaranteed.

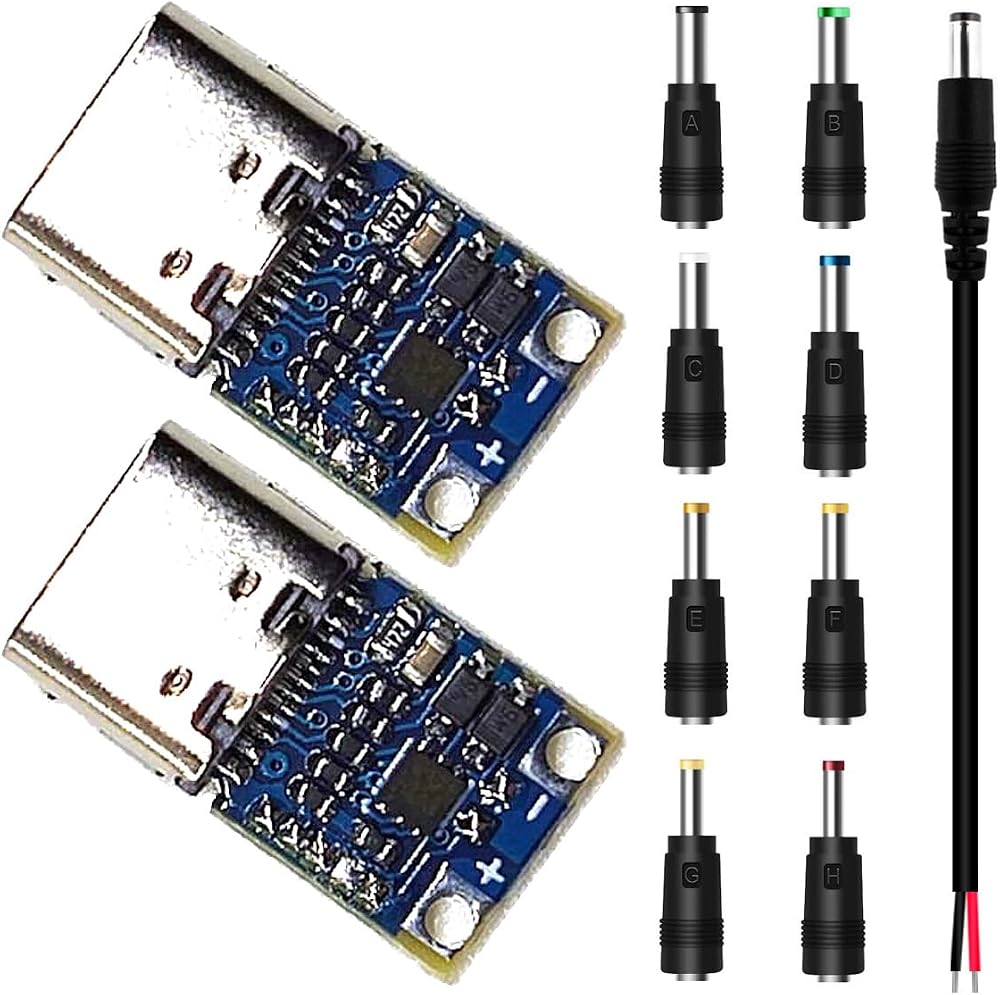

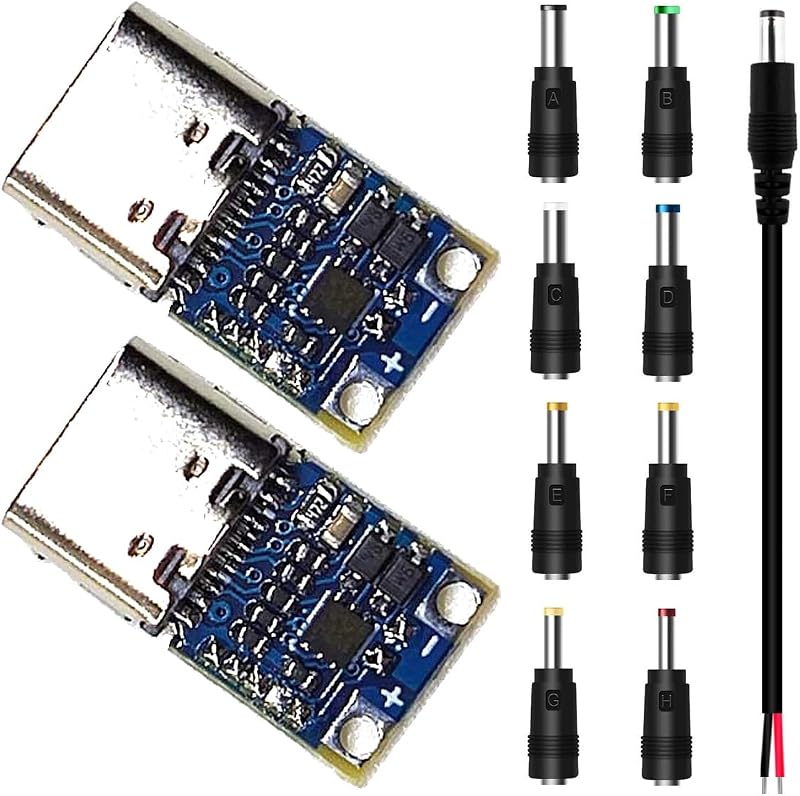

Package Contents

• 2 x Youmile 20V 5A USB-C PD to DC Power Trigger Module
• 1 x 5A DC Power Male Pigtail Wire
• 1 x 6.4x4.4mm Connector
• 1 x 6.3x3.0mm Connector
• 1 x 5.5x2.5mm Connector
• 1 x 5.5x2.1mm Connector
• 1 x 5.5x1.7mm Connector
• 1 x 4.8x1.7mm Connector
• 1 x 4.0x1.7mm Connector
• 1 x 3.5x1.35mm Connector
