Yosoo Health Gear SMA Female Jack Connector PCB Panel Mount Plug 4 Pins

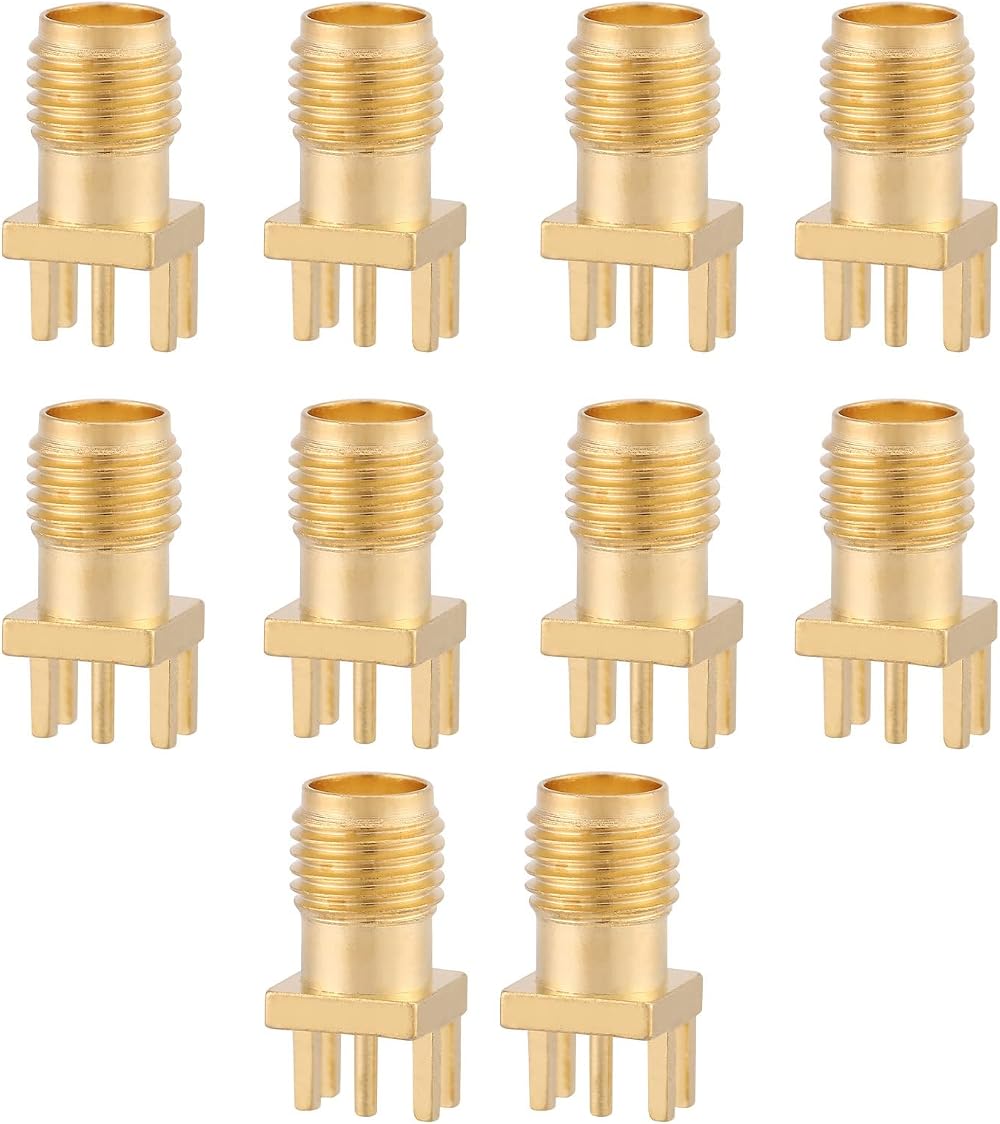

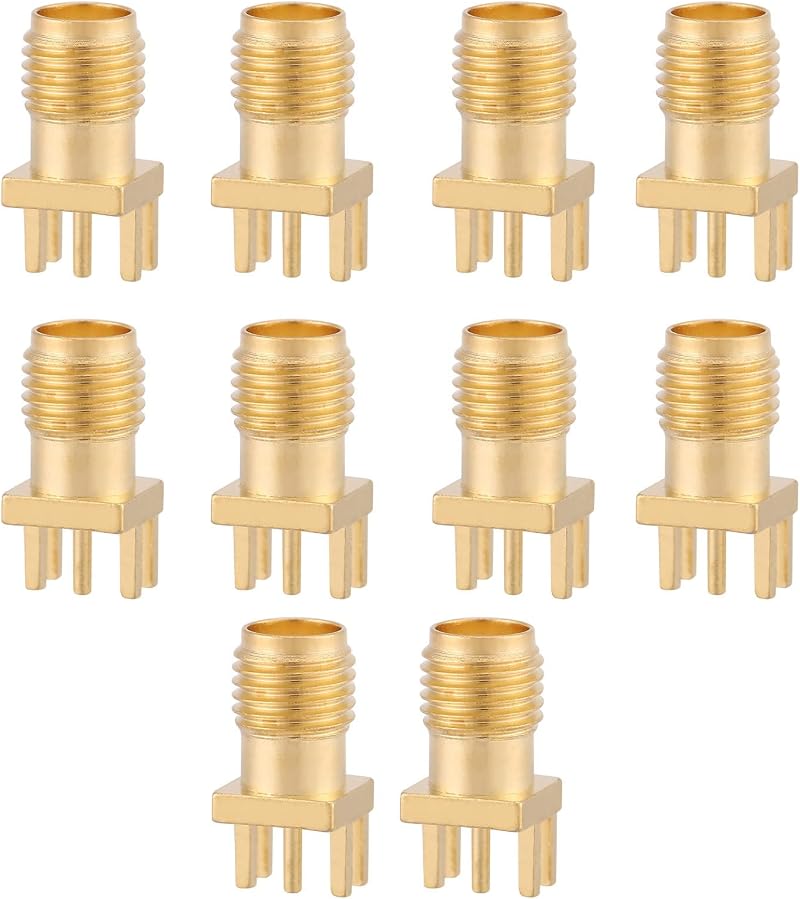

Yosoo Health Gear SMA Female Connector Set

This set includes ten high-quality SMA female connectors from Yosoo Health Gear, designed for reliable performance in various wireless applications. Constructed from durable brass with gold plating, these connectors offer excellent electromechanical properties and strong vibration resistance.

Key Features

• Material: High-quality brass for durability
• Surface Finishing: Gold plating
• Type: SMA Female, outer thread, drift angle
• Reliability: Good reliability and strong vibration resistance
• Applications: Ideal for wireless modules, antenna connections, PCB welding, and ground transmission systems in harsh conditions
• Quantity: Pack of 10 connectors

Specifications

• Brand: Yosoo Health Gear
• Pitch: 1.6mm
• Temperature Range: -65~+165℃ (PE Cable -40~+85°C)
• Vibration: MIL-STD-202, Method 213
• Characteristic Impedance: 50Ω
• Frequency: 0~6GHZ
• Working Voltage: 335V max (effective value)
• Resistance to Pressure: 1000V rms (sea level minimum value)
• Durability: ≥500 cycles
• Weight: 15g (approx.)

Package Includes: 10 * SMA Female Base
