Tsadeer TL631 Pro Diagnostic Card LPC PCI-E Mini PCI-E Motherboard Multifunction

Tsadeer TL631 Pro Diagnostic Card

This Tsadeer TL631 Pro Multifunction Diagnostic Card is designed for motherboard troubleshooting and analysis. It features multiple interface options and diagnostic indicators to help identify hardware issues.

Key Features

• LPC1 Interface: Connects to motherboard 2.0 small pin LPC interface and modules for notebook MINI PCIE conversion, A-DEBUG conversion, and notebook DEBUG-CON/EC-DEBUG.
• PCI Interface: Supports all PCI slots.
• LPC2 Interface: Connects to motherboard 2.54 pin LPC interface, COM-DEBUG, UART1, and SPI.
• PCIE X1 Interface: Supports motherboards without PCI slots (other configurations not supported).
• Power Indicator (3VSB): Detects power status.
• Reset Indicator: Detects motherboard reset status (requires PCI or PCIE insertion).
• CPU Indicator: Detects CPU module status.
• DRAM Indicator: Detects memory module status.
• VGA Indicator: Detects graphics card module status.
• PCH South Bridge Indicator: Detects south bridge status.
• DP Decimal Points: Displays CLK signal and FRAME signal.
• Threading Hole

Specifications

• Brand: Tsadeer
• Model: TL631 Pro
• Color: Black
• Material: PCB

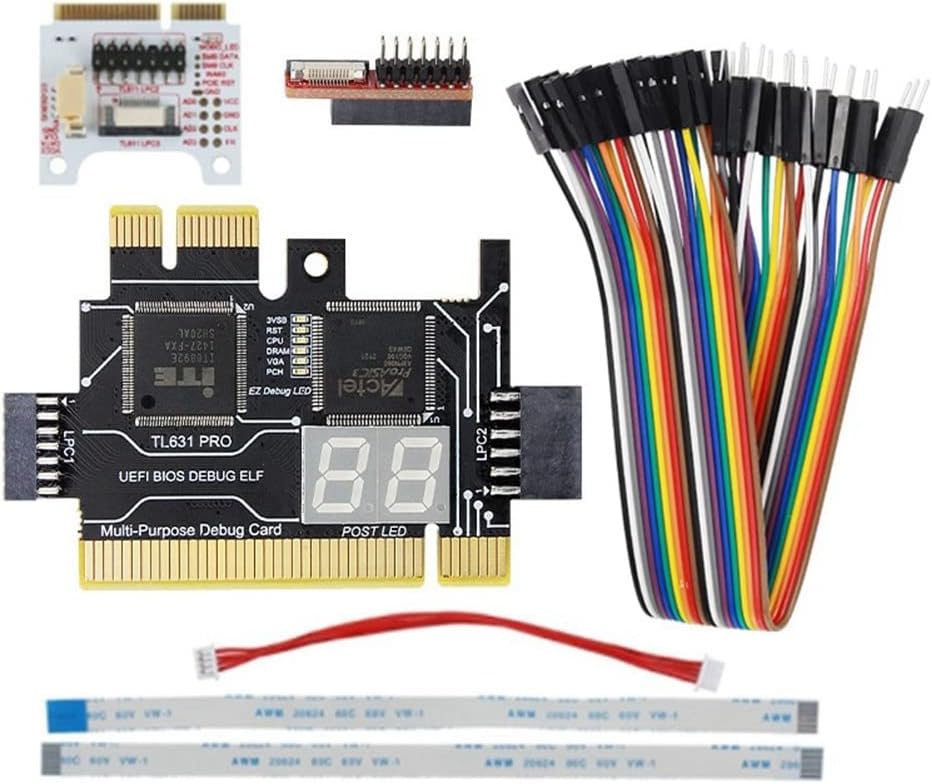

Package Contents

• 1 x TL631 Pro Diagnostic Card
• 1 x 2.0 module
• 15 x Cables
• 1 x Expansion Card
• 1 x Cord
• 2 x Flex Cables

Note: Package contents only include the items listed. Other products are not included. Color may vary slightly due to lighting and display differences. Measurement error is +/- 1-3cm.
