sourcing map 2x FFC FPC 20 Pin 0.5mm to 2.54mm Dual Row Pin Header Adapter Board

Product Overview

This FFC/FPC connector board is designed to connect flexible cables or flexible printed circuit boards within electronic equipment. It offers reliable electrical connection and mechanical fixation, making it ideal for applications requiring high flexibility and compact designs. It is commonly used in digital cameras, laptops, MP3 players, game consoles, and various other digital communication products, portable electronics, computer peripherals, measuring instruments, and automotive electronics.

What You Will Receive

• Board Type: Double Sided with Single Flat Cable Socket
• Product Type: PCB Support
• Pin Count: 20 Pins
• FPC Socket Side Pitch: 0.5mm
• FPC Back Side Pitch: 1.0mm
• DIP Pitch: 2.54mm
• Overall Size: 32x33mm / 1.26x1.3-inch (Length*Width)

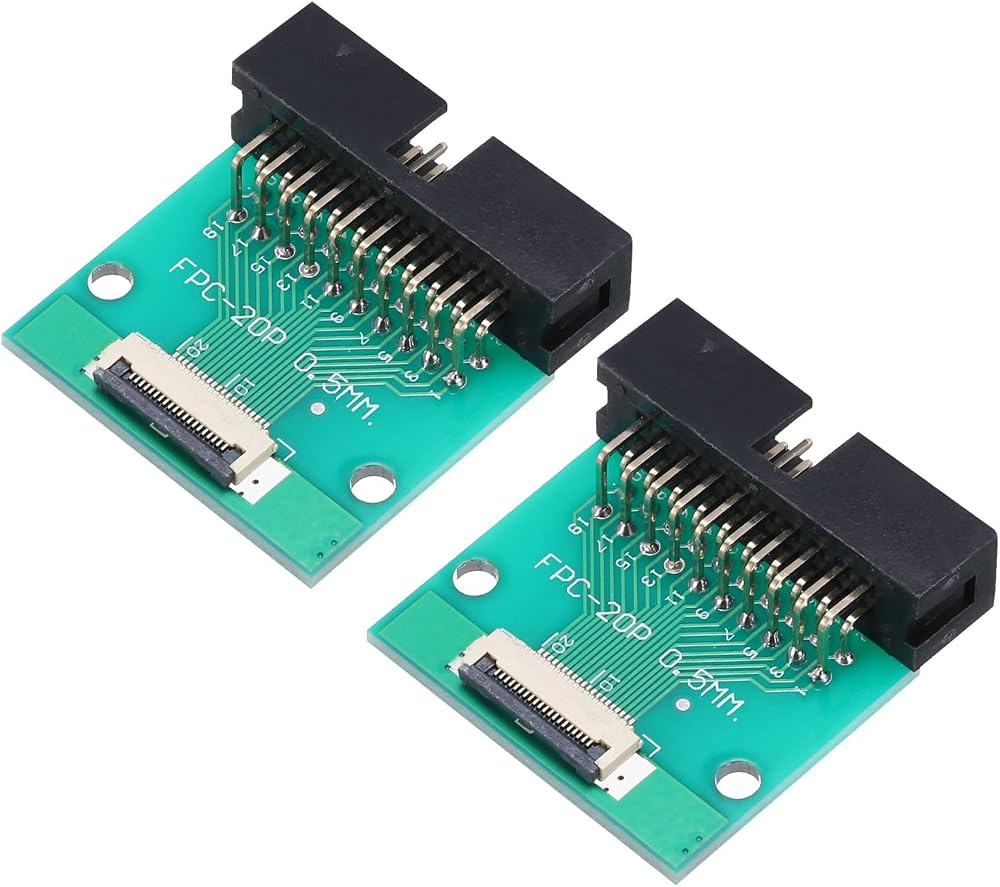

• Package Includes: 2 x FPC/FFC Connector Boards

Product Advantages

• Features low insertion force and a high rate of insertion and extraction.
• Provides high-density signal transmission and circuit connection in a limited space.

How to Use

1. Flip up the black interface.
2. Insert your flat cable (not included).
3. Test to confirm connection.

Important Notes

All dimensions are measured manually; please allow for a +/- 0.1 inch error.
