Oikabio X99 Motherboard LGA2011-3 DDR4 ECC RAM E5 2609 V3 CPU 4G RAM

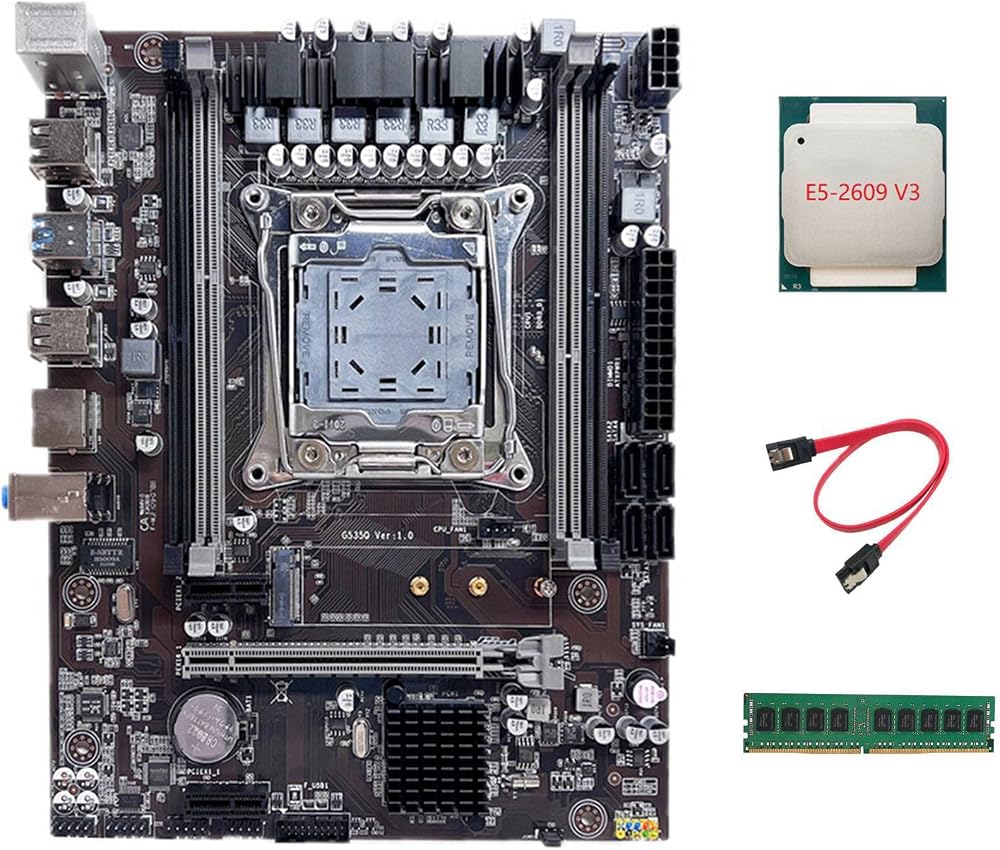

Oikabio X99 Motherboard Computer Kit

This Oikabio X99 motherboard bundle includes a motherboard, an Intel Xeon E5 2609 V3 CPU, 4GB of DDR4 2133MHz RAM, and a SATA cable. It is designed for desktop use and features an ATX standard power interface and Mini ITX architecture.

Key Features

• Motherboard Model: X99
• CPU Socket: LGA2011-3
• RAM Support: DDR4 ECC RAM
• Included CPU: Intel Xeon E5 2609 V3
• Included RAM: 4GB DDR4 2133MHz (Appearance and color random)
• Storage: 4 x SATA3.0 (6GB/s) interfaces, 1 x NVME-M.2 connector
• Onboard Audio: Realtek ALC 6-channel HD Audio Codec (ALC661)
• Onboard LAN: Realtek 100/1000Mbps
• Expansion Slots: 1 x PCI 16x, 2 x PCI 1x
• USB Ports: Support for 4 x USB 2.0 and 2 x USB 3.0

Onboard Interfaces

• 1 x 24PIN ATX standard power interface
• 1 x 4PIN ATX standard power interface
• 3 x USB CONNECTOR
• 1 x front panel audio interface
• 1 x front panel interface
• 1 x speaker interface
• 1 x fan interface
• 1 x -DEBUG debug pin

Specifications

• Brand: Oikabio
• Motherboard Architecture: MINI ITX
• Applicable Type: Desktop
• Graphics Card: Discrete graphics card
• Color: Black
• Material: PCB
• Size: 19 x 24CM

Package Contents

• 1 x Motherboard
• 1 x E5 2609 V3 CPU
• 1 x DDR4 4G 2133Mhz RAM (Appearance and color random)
• 1 x SATA Cable (Appearance and color random)

Note: The appearance and color of different batches may vary, which does not affect the use. Light and different displays may cause the color of the item in the picture to be slightly different from the real one. The measurement allowed is +/- 1-3cm.
