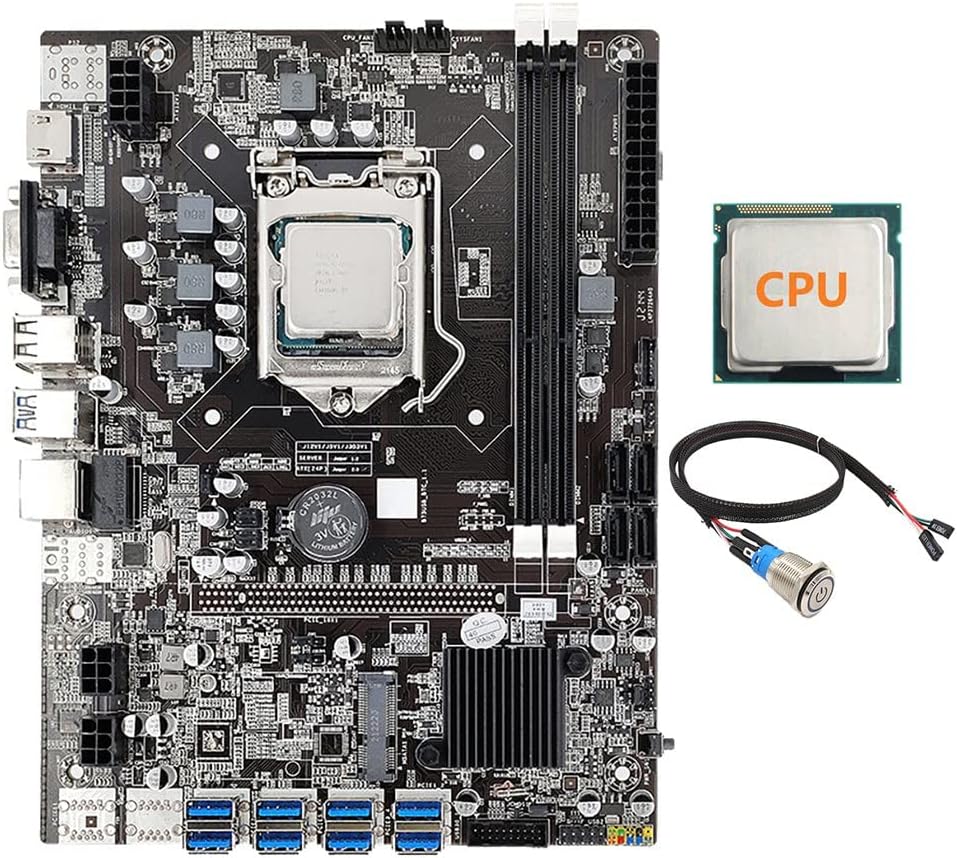

Oikabio B75 BTC Mining Motherboard 8x GPU USB 3.0 LGA1155 DDR3 MSATA with CPU

Optimise your cryptocurrency mining setup with the Oikabio B75 BTC Mining Motherboard. Designed for efficiency and stability, this motherboard features eight PCIe 1X graphics interfaces (via USB 3.0) to support multiple GPUs, making it ideal for various mining operations.

It comes equipped with an LGA1155 CPU socket and includes a random compatible CPU to get you started. A 1-meter metal button switch cable is also provided for convenient system control.

Key Features

• Chipset: B75 for robust performance.
• CPU Socket: LGA1155, supports a range of compatible CPUs (one random CPU included).
• Graphics Interfaces: 8x PCIE 1X (via USB 3.0) for multi-GPU mining configurations.
• Memory: 2x DDR3 slots, supporting up to 16GB RAM (up to 8GB per slot) at 1333/1600MHz.
• Storage: Integrated MSATA interface.
• Connectivity: Multiple USB 2.0/3.0 ports and a 100M LAN network card.
• Convenience: Includes a metal button switch cable (1m).

Specifications

• Display Interface: 1x HDMI-compatible, 1x VGA
• USB Rear Ports: 2x USB 2.0, 2x USB 3.0
• USB Front Ports: 1x USB 2.0, 1x USB 3.0
• SATA Interface: 4x SATA ports
• Graphics Interface: 8x PCIE 1X (USB 3.0)
• Network Card Interface: 1x LAN 100M (Realtek chip)
• Memory Slots: 2x DDR3
• CPU Socket: LGA 1155
• Chipset: BGA B75
• Storage Interface: 1x MSATA
• BIOS Restoration: JCMOS
• Speaker Interface: 1x SPK
• Power Interfaces: 24pin_ATXPWR, 4pin_ATX12V
• Supported CPU Types: For 1155 series, including G530/G540/G550/G620/G630/G640/G1610/G1620/G1630 (Random CPU included, specific CPU models cannot be requested)
• Supported Memory Types: 2x DDR3, up to 16GB (max 8GB per slot), 1333/1600MHz
• Product Size: 230x175mm
• Colour: Black
• Material: PCB

Package Includes

• 1x Oikabio B75 Motherboard
• 1x Random CPU
• 1x Metal Button Switch Wire (1m)

Only the items listed above are included in the package. Other components or accessories shown in images (if any) are not included.

Note: Lighting and different display settings may cause the color of the item in the image to appear slightly different from the real product. The allowed measurement error is +/- 1-3cm.
