Oikabio B250C BTC Motherboard LGA1151 DDR4+G3900 CPU+64G USB+12x USB3.0 for ETH

Oikabio B250C Mining Motherboard Kit

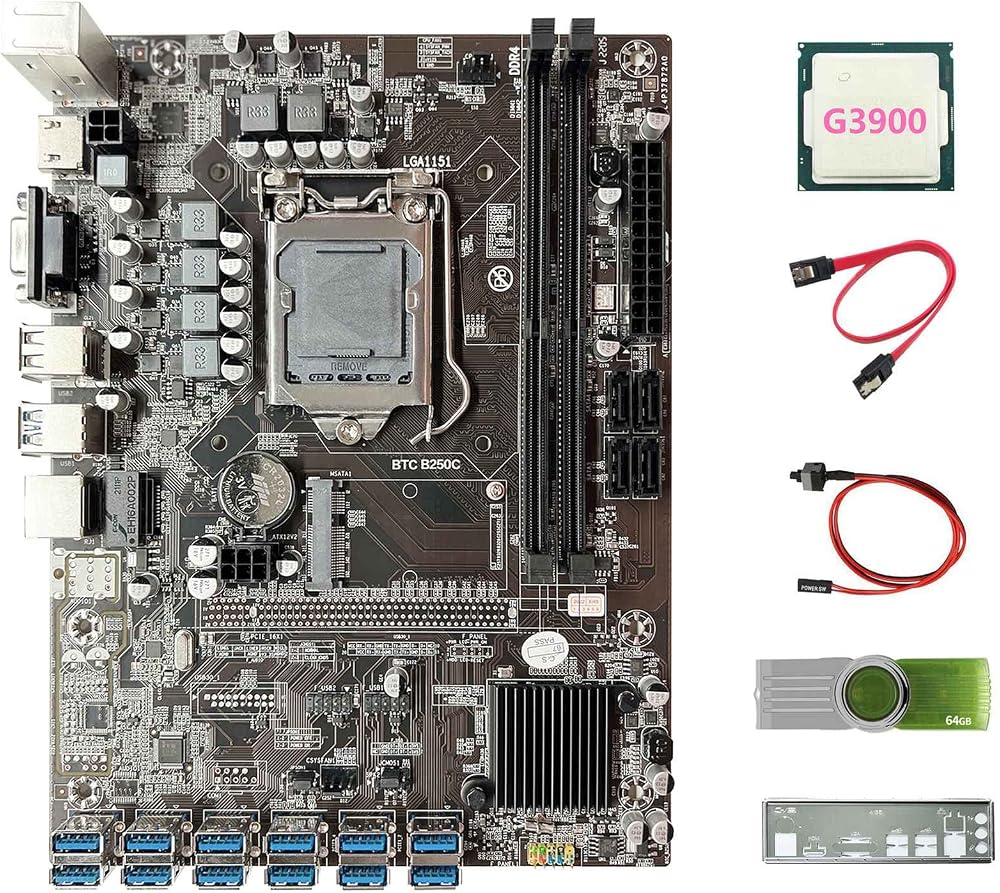

This Oikabio B250C motherboard bundle is designed for cryptocurrency mining, specifically Ethereum (ETH). It comes pre-packaged with a compatible G3900 CPU, a 64GB USB drive for operating system installation, a baffle, SATA cable, and a switch cable. The motherboard features 12 USB 3.0 ports for maximum expandability.

Key Features

• Motherboard Model: Oikabio B250C
• CPU Included: Intel G3900
• Memory Type: DDR4
• CPU Socket: LGA1151
• USB Ports: 12 x USB 3.0 (ideal for GPU configurations)
• Storage Interfaces: 4 x SATA, 1 x MSATA
• I/O Ports: 2 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x PS/2, 1 x VGA
• Built-in I/O: 1 x USB 2.0 pin, 1 x COM pin, 1 x F-PANEL front panel header
• BIOS: 64mb Flash ROM
• Power Supply Support: ATX 24P + ATX 4P, 12V + ATX 6P
• Included Accessories: 64GB USB Drive, SATA Cable, Switch Cable, Baffle

Specifications

• Color: Black
• Material: PCB
• Dimensions: 230 x 185mm

Important Notes

• The appearance and color of the USB Drive, SATA Cable, Switch Cable, and Baffle may vary across batches and do not affect functionality.
• For mining configurations requiring more than 8 cards, a mix of NVIDIA (N card) and AMD (A card) GPUs is generally recommended (e.g., 6N + 6A, 8N + 4A, 7N + 5A).
• Please note that driver support may limit the number of cards that can be utilized.
• Light and different displays may cause the color of the item in the picture to be slightly different from the real object. The measurement allowed error is +/- 1-3cm.

This kit provides a solid foundation for building a cryptocurrency mining rig.
